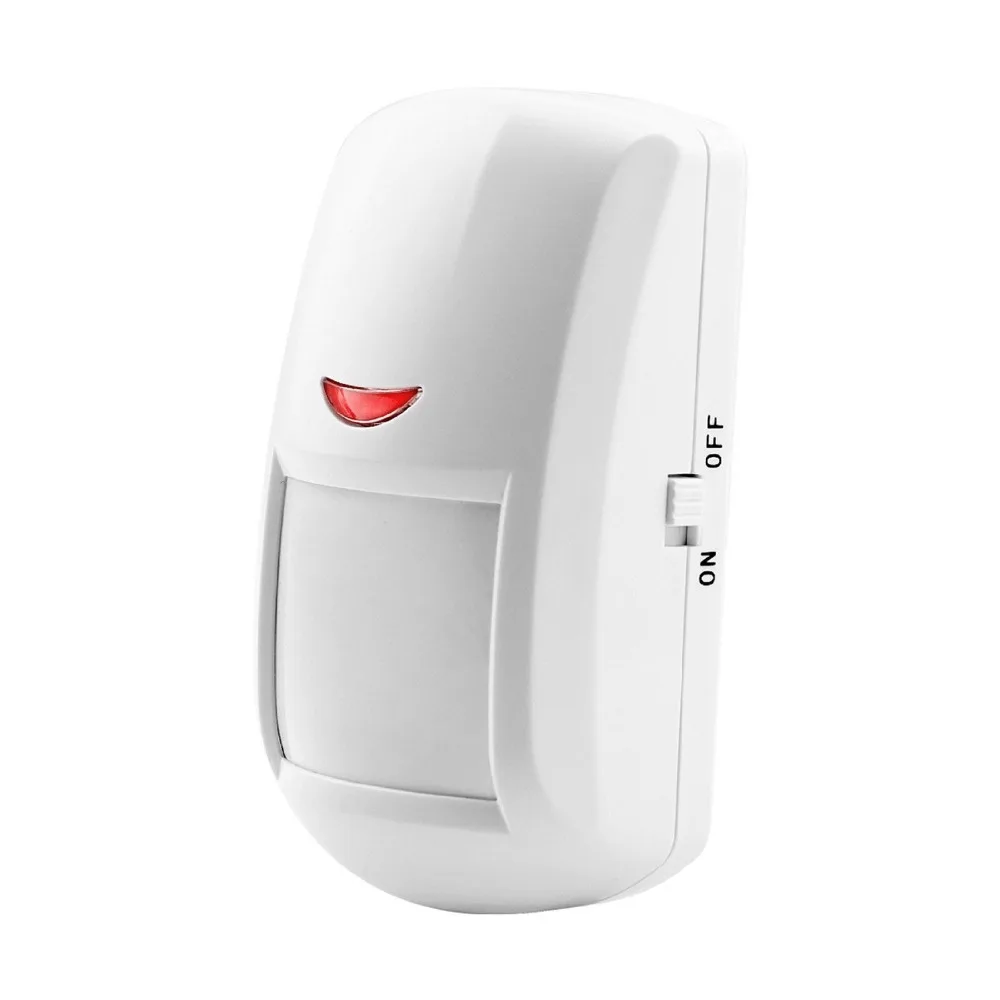

(1 PCS) Wireless PIR Detector For Alarm system Home security accessories 433Mhz Motion sensor

 1 PCS Wireless PIR Detector For font b Alarm b font system Home security accessories
Click to see details
 1 PCS Wireless PIR Detector For Alarm system Home security accessories 433Mhz Motion sensor
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $11.29 / piece
Sale price:  US $8.81 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

welcome to our store!we are an excellent-rates seller on aliexpress,

all item are facotry direct,quality assurance and best price as we are an one-stop cctv product supplier. contact us by TradeManager if any question,thanks!

MAIN FEATURE

Automatically identify valve control
Adjustable pulse count
ASIC adopted
Auto temperature compensation
Send alarm signal by RF
Adjustable detecting distance
Low battery indication
SMT design adopted

TECHNICAL SPECIFICATION
Operating voltage DC 9V
Static current 60uA
Alarm current 20mA
Detecting distance 8~12m
Detecting angle 110
Radio frequency 433MHz ± 0.5MHz
Radio distance 100m (open area)
Sensor Dual element infrared sensor
Operating temperature -20 ~ +55 deg
Environment humidity 10~ 93% RH (no congelation)
Outline Size 60L*40W*105H mm

Specification:

High-grade PIR sensor
Power Supply DC9V (6F22 battery)
Static Current ≤20mA
Wireless Frequency 433 MHZ
Transmission Distance About 50m without barrier
Detective Speed 0.3 – 3m/s
Detective Distance 5 – 12m
Detective Range Horizontal 110°, Vertical 60°
Battery Life Time About 6 months
Working Condition Temperature -10 degree ~ + 40 degree
Humidity ≤ 90 rh

Package Content

1x Wireless PIR sensor(not include battery) Installation guide: 1. Avoid intalling in the place which temperature is changeable and air flow rate is high, such as close to the window, airconditioner, fluorescent lamp, electric heater, refrigerater, oven, stove and so on. 2. If there are two PIR sensors in the detective area, adjusting position to avoid inference and misformation.

3. Infrared sensor can’t install in the outdoor. Using screw to fix it on the side wall of the entrance, broadside to the entrance. The height is 1.7-2.2m, 70-80 degree Angle from the ground. Installation should avoid high-power electrical appliance, avoid facing cold/heat source, avoid facing glass door/window, avoid facing pendular objects.

Detection angle: 110 degree left and right , 60 degree up and down.

The lower sensor’s head , the smaller detective range and the closer detective distance. The higher sensor’s head , the bigger detective range and the farther detective distance.

ATTENTION: This sensor can’t be used independently. It needs to work with the panel which is the same as this sensor’s parametter. And it is not universal for all the panel. Plz contact with us firstly before you order if you don’t know clearly. We don’t take any responsible because of your false order. Thanks!

Dear buyers: Welcome to our store. All of our products are of high quality. If you have any questions, pls contact with me firstly. Wish you a happy shopping.

Dear Russian buyers: Pls use full name to fill in the contact address, otherwise you can’t receive your package. Docontact with us if your address is not your full name! Thank U~
