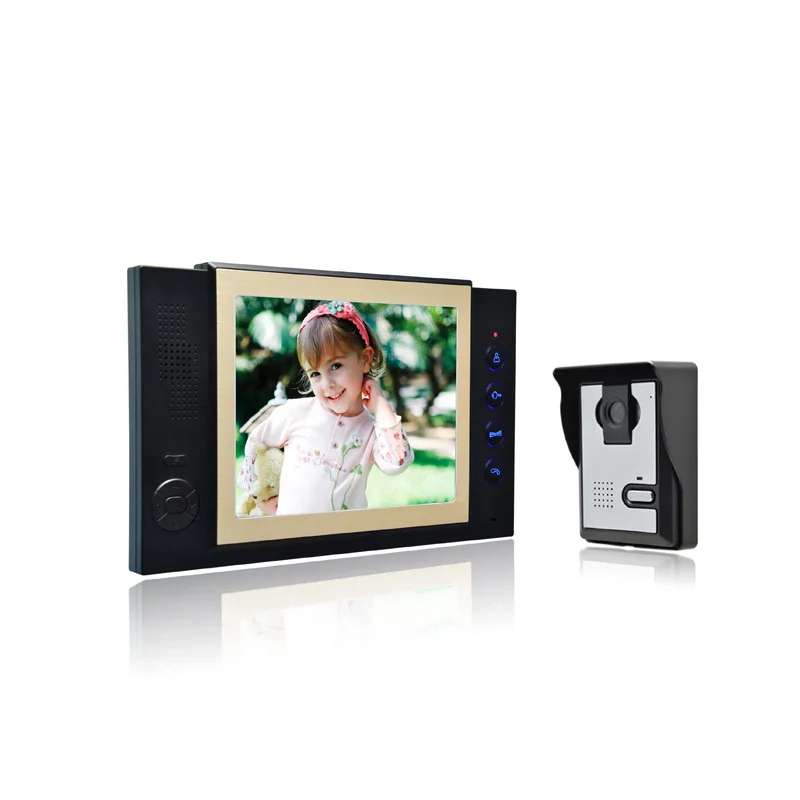

(1 set) Latest Video intercom Smart Home system 8 Inch panel HD night version Video door phone waterproof camera Door bell

Product Features:

1.8 inch color TFT digital LCD screen,low power consumption without rediation

real widedisplay with high resolution

2.Hands-free talkhack funtion

3.Electronic control lock function

4.Outdoor monitioring function

5.Indoor mutual talkback funtion

6.Voiding disturbing during rest time function

7.Photo/Recording:

The unit is with build in 2M memory(can store 50pcs photos),also you can insert

external memory card into the system for photo/recording,It will photo automatically

and make a 15S video once the visitor pressing the outdoor camera call bottom.

if the memory is full,The new file will overwrite the earlier file automatically

(Note:the item should be installed with TF card in advance)

8.Brighness,color and sound volume of indoor phone can be adjusted

9.Indoor phone has thin design,aluminum deck or top grad Acrylic panel electroplating

buttoms;all of this makes its luxurious high-quality decorative style

10.There are 24 pieces beautiful chord music ringtone can be chosen

11.outdoor station is exquisite and durable;it has function of viewing at

night by infrared.The embedded istalltion makes it nice and safe

12.The available distance is 200M to connect the connection wire;it will not

affect the picture it shows and talkback

13.Complete accessories are attached.users can install the machine by themseves according to the“Operation instruction”.they also enjoy the happiness which is from the installation

Indoor unit：

1.Monitor:

press the monitor button once under the standby state,you can view the viewing of camera1,meanwhie the indicate light is red;keep pressing the monitor button more than 1S,you can view the viewing of camera 2 and the indicate lights is green.you can come to the standby state by pressing the monitor button during monitor/talking state

2.Talk:

By pressing the talk button talk with the visitor if someone presses the outdoor camera button,press the talk button again to finish the talking.Under the standby state.you can talk to oter monitors by press the talk button,press again to finish

3.Unlock:

under the monitor/talking state,press the unlock button to open the door

4.Menu:

under the monitor/talking state,press M button to get into the menu interface,and press “left button” and“right button” to adjust the setting,press“M”Button again for the further setting.

5.Photo view:

under the monitor state,press the“up button”and“down button”to browse the photos,and press the “M”button to quit

6.View the video:

under the monitor state press“M”button to open menu,select the“play”option in the submenus for video playback and use the up and down arrows to choose which video you need,press the “M”button to quit

7.Manual video/photo:

under the monitor state,press“F”button can manually take photos and video

8.Ring:

Under the monitor state,press this button to select the ring you prefer

9.TF:for TF card

10.Menu adjusting

11.Photo/recording funtions:

The stored photos will be copied to the external TF card once the build in memory photo is more than 50pcs,mean while the build in memory storage photos will be deleted.If there is no TF card,the newphoto will automatically overwrite the earliest photo,If the video is full,the new video will automatically overwrite the earliest video（Note：the item should be installed with TF card in advance).To better use the system,please delete the useless video/photo timely

12.Turn off delay：

The item is coming with 8s turn delay functions,with this function,it is easy to take/copy photos

indoor unit: secreen size:8 inch(4:3 display) resolution:800(RGB)*600 visible area:162.0(W)*121.5(H)MM visual angle:up 50 degree,down 70 degree,left or right 70 degree brightness:250cd/sq.m ringtone:chorded polyphonic ringtone sensitivity:56DB overall power consumption:below 6W(400mA) standby power consumption:below 1.1W power adapter specification:DC15V 1200mA talk time delay:120S monitor time delay:40S effective distance:200M operating temprature:-20 to 60 degree relative humidity:10% to 90%(KH) indoor unit insllation:wall-mounted or desktop picture format:JPG RAM:50 pictures Outdoor unit: 1.infrared lamp lighting distance:approximate 4 meters 2.Gain control:auto 3.resolution:600 TVL lines 4.Image transmissiong distance:approximate 200 meters 5.Visual angle:92 degree 6.KW:below 2W 7.power:DC 15V 8.Camera:High definition and colorful 9.outdoor infrared night vision function:10 LUX infrared 10.Operating temperature:-20 to 60 degree 11.Outdoor unit installation method:embedded or wall-mounted type Installation insturction：

1.Use screws to fix the mounting board of indoor unit on the wall,hang the phone on the installtion board after connecting the wire

2.The outdoor unit should be installed on the wall and 1.5M above the ground and please prevent the strong sunlight and rain from it(such as picture A).There are two specific ways to install the product;wall mounting type and embedding type.wall mouting type:at first,please detach the screw which is fixed below the button by screw driver for disassembling the host machine,punching four holes on the wall you

choose with the screws’ location on the board;use rubber plugs in the accessories bag to push into four holes,tight the screws well and fasten the hanging board;connect the connection wire well like the connection drawing shows;finally make the outdoor unit

fixed on the board and screw up.

2.If you choose embedding type to installtion the machine.please leave the room for installtion of outdoor unit in advance and then it can be followed the wall mounting type to install

3.The talkback distance is 40cm for the outdoor station.(like it shows on picture B)

4.The product is attached connection wire;it can be used new one if current one is not long enough.if its length need to be 10M-200M,the guide line with 4*0.75mm square meter can be used.It will be finished with interdigitating indoor unit terminal which has four cores of conductor with outdoor station terminal which has four cores of conductor.The outdoor station connection with 2 cores of conductor and terminal will separately connect the positive and negative poles of electronic control lock,the connection wire should be used 2*1MM cable

5.Mode of connection:after connecting the entire outdoor and indoor unit,plug the attached power adaptor into alternating current power supply;plug the output plug of adaptor into electrical socket outlet of indoor unit
