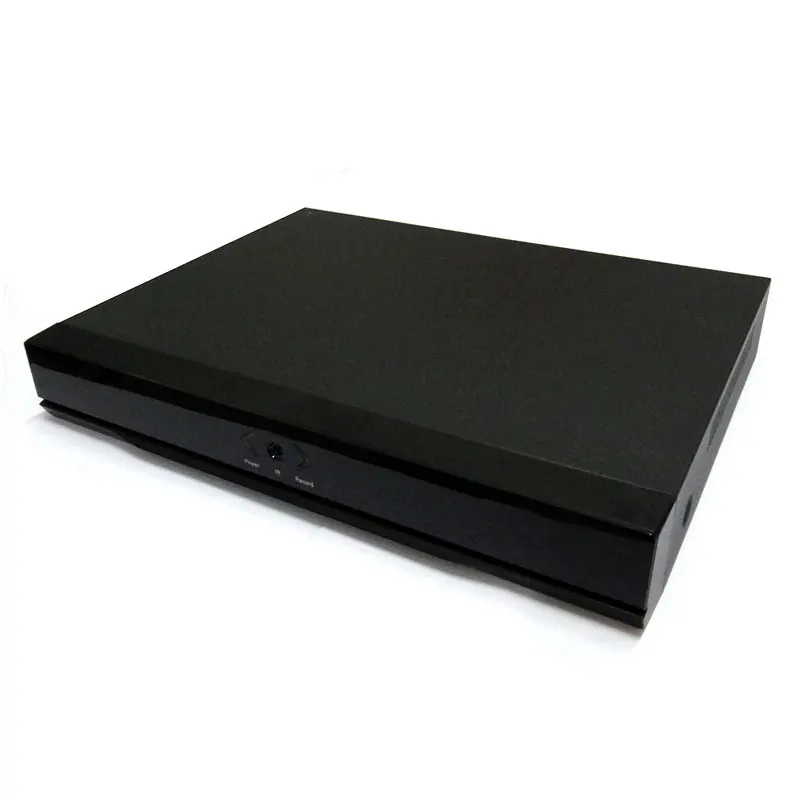

16ch NVR CCTV 16Channel 1080P ONVIF2.0 HDMI Network Video Recorder For IP Camera

16ch NVR font b CCTV b font 16Channel 1080P ONVIF2 0 HDMI Network Video Recorder For
Click to see details
16ch NVR CCTV 16Channel 1080P ONVIF2 0 HDMI Network Video Recorder For IP Camera
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $88.00 / piece
Sale price:  US $77.44 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days



Video input :8ch5M/16ch4M/16ch3M;

Support VGA Full HD output,and HDMI 4K output;

Support ONVIF;Support Third-party network cameras ;

Support Web, CMS, platform management software MYEYE,Provide SDK ;

Support cloud service, network penetration, alarm information pushed to phone ,etc;

Support multiple network services like DHCP, FTP, DNS, DDNS, NTP,UPNP, EMAIL,3G,WIFI, IP searches, Alarm Center, etc.


System Resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Operator interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/4/8/16
Video input (IP) 8*8M/8*5M/16*4M/16*3M
Video standards PAL(625TVL,50f/s), NTSC(525TVL,60f/s)
Video compression H.265/H.264
Display quality Max:4K
Playback quality 8M/5M/4M/3M
Decode 2*8M/4*5M/4*4M/8*3M
Motion detection Depend on camera
Audio compression G.711A
intercom Support
Recording mode Manual>Alarm>Video Detection>Continuous
Local Playback 2*8M/4*5M/4*4M/8*3M
Search mode search by Time/calendar/event/channel
Record Storage HDD, network
Backup mode Network backup, USB hard disk, USB burner, SATA burner
Video output 1ch HDMI ,1ch VGA output
Alarm I/O 1/1
Alarm I/O No(Can be extended to 16/4)
Network interface 1*RJ45 10M/100M/1000MAdaptive Ethernet port
USB interface 2*USB2.0 port,1*USB3.0 port
Hard disk 2*SATA(Up to 8TB for each disk)
PTZ control Control PTZ device by network
ONVIF Support
Power supply 12V/4A
Power Consumption <10W(Without HDD)
Work environment Temperature:0℃-+55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp

Packaging included:
1x Power supply
1x User’s Manual
1x Mouse

The series NVR is designed specially for security and defence field which is an outstanding digital surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264mp video compressed format and unique space-time filtering algorithm which insures the high quality image, low error coding ratio and single frame playing. It introduces TCP/IP network technology which achieves the strong network communication ability and telecommunication ability. The series NVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software it achieves the strong network communication ability and telecommunication ability. The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.

Main functions:

Real-time surveillance

·spot interface?analog interface?VGA interface and HDMI interface?surveillance function through monitor or display


·non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the life-span

·special storage format which insures the data safety


·real-time compression by individual hard disk which insures the audio and video signal stable synchronization


·through SATA interface and USB interface such as USB equipment, removable hard disk and so on ·through net download the files in the hard disk


·individual real-time video recording as well as searching, playback, network surveillance, recording check, downloading and so on

·multi-playback mode ·zoom at arbitrary region Net operating

·through net (including telephone) tele-surveillance in the real time

·tele-PTZ control

·tele-recording check and real-time playback

Alarm linkage

·Alarm activated video record,tour ,message,buzzer,e-mail,ftp, cell phone to report

Communication interface

·RS485 interface which fulfills the alarm input and PTZ control

·RS232 interface which can extend keyboard connection to realize master,as well as with computer serial port connection for system maintenance and upgrade,and matrix control and so on.

·standard ethernet network interface which fulfills the telecommuting function

Intelligent operating

·mouse action function

·fast copy and paste operating for the same setting
