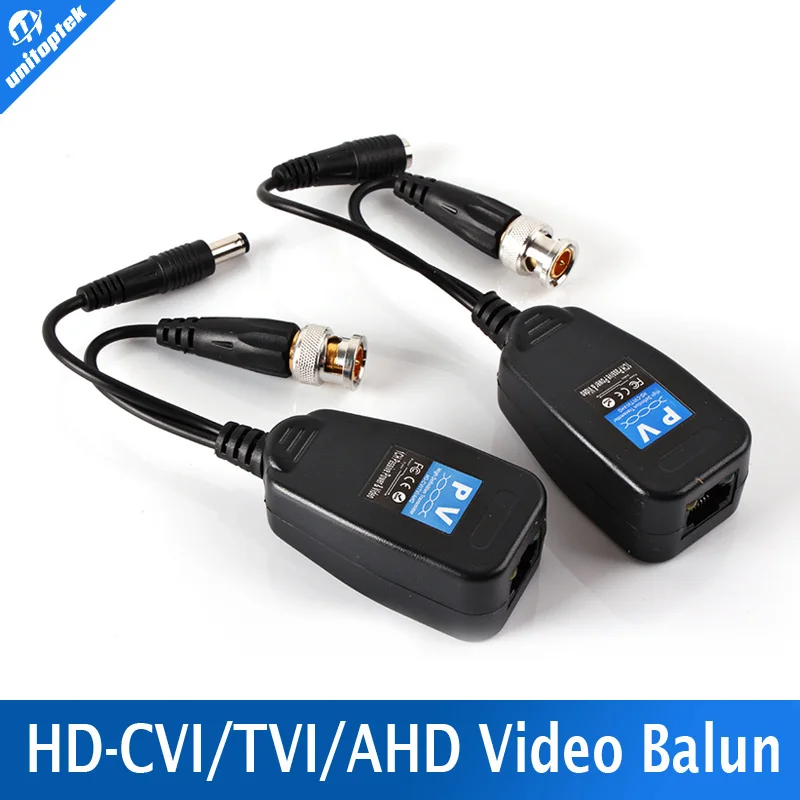

1CH Passive Balun RJ45 CCTV Balun Video Balun Transceiver Supply Power For HDCVI/HDTVI/AHD Analog High Definition Camera
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
1CH Passive Balun RJ45 CCTV Balun Video Balun Transceiver Supply Power For HDCVI/HDTVI/AHD Analog High Definition Camera
Features:
*Compatible with all HD-CVI, HD-TVI,HD-AHD
*Up to 450m for 720P CVI Cameras
*Up to 250m for 1080P CVI Cameras
*Up to 250m for 720P/1080P TVI Cameras
*Up to 320m for 720P AHD Cameras
*NTSC,PAL, and SECAM video formats
*No Power Required
*60dB cross talk and noise immunity.
*Compact size and easy installation
*Built-in transient suppression protection
*Innovative combinabie design
Technical Specifications
*Frequency response: DC to 60Mhz
*Attenuation: 0.5dB type
*CMRR: 60dB
*Surge Protection: 4KV
ESD: 8KV
*Connectors: Male BNC and “Prees-Fit” Terminal blocks
*Impedance: BNC: 75ohmas
Terminal: 100ohms
*Working Temperatrue: -10 to + 70
*Storage Temperature: -30 to +70
*Humidity: 0 to 95%
*Dimension:45mm*25mm*21mm with 14cm cable
*Material: ABS Plastic
Power-Distance Chart
Using PVD product, cameras can be powered at extended distances, please refer to the chart below for more information.
