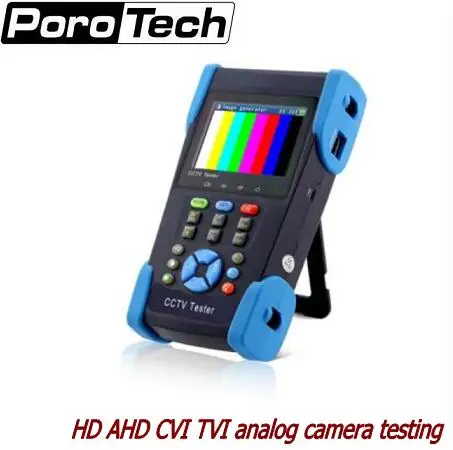

3.5 inch HD coaxial camera tester CCTV tester monitor HD AHD CVI TVI 1080P analog camera testing PTZ control 12V ouput

USD 355.00-598.00/pieceUSD 113.00-189.00/pieceUSD 165.00/pieceUSD 126.00/pieceUSD 135.00-179.00/pieceUSD 95.99/pieceUSD 205.00-510.00/pieceUSD 289.00-539.00/piece 3.5 inch HD coaxial camera tester CCTV tester monitor HD AHD CVI TVI 1080P analog camera testing PTZ control 12V ouput There are 5 optional functions can be added to (1) Digital multimeter——–+33USD IPC-4300M (2)Optical fiber —————+42USD IPC-4300 O (3)Visual fault locator——–+50USD IPC-4300V (4)TDR function—————+70USD IPC-4300T (5)Cable scan ——————+15USD

HD-2800ADHS

3.5”HVGA TFT-LCD screen display/480 (RGB)*320 resolution /HD coaxial test (AHD/CVI/TVI/SDI) /PTZ control/ Color bar generator/ /12V 1A power output

The new HD coaxial tester is developed for the OnSite installation and maintenance of coaxial camera it also combine other functions analog camera test, video level meter, analog signal output, UTP test.

—CCTV system installation and maintenance

—Network cabling project installation and maintenance

—Dome camera and all in one camera testing

—Video transmission channel testing

— PTZ control

1)3.5inch screen display, 480(RGB)x320 resolution

2) Low power consumption, working time lasts 11 hours

3) LCD screen brightness/contrast/color saturation adjustable NTSC/PAL auto adjust

4)AHD CVI TVI SDI coaxial camera image display, coaxial PTZ control and call up the camera OSD menu

5) Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful images).

6) LED Flashlight.

7) HD coaxial control, PTZ control, color bar generator shortcut key.

8) F1, F2 user-defined key

18) PTZ control and PTZ protocol analysis
19) Cable test, Test LAN cable or telephone cable, UTP cable etc, cable type and the sequence of wires will be displayed

20) Support more than 30 protocols, such as Pelco-D, Pelco-P, SAMSUNG.

21) Support RS232/RS485,rate 600 – 115200bps adjustable

22) Built in Lithium Ion Polymer Battery(3.7V DC 3000mAh )

23) Image display and data control integration

24) Handheld HD coaxial tester, easy to carry and operation.

1. Video signal test

The new HD coaxial tester ,built-in high definition 3.5”LCD-TFT 480(RGB)x320 resolution, view the image, easy and directly displays the camera image , support PAL/NTSCLCD screen brightness/Contrast/Color Saturation adjustable. Suitable for field construction and maintenance work

2. HD coaxial signal test

TVI, CVI, AHD SDI coaxial signal test, support 720p 25/30fps/ 1080p 25/30fps, the tester will display camera image, coaxial PTZ control and call up the camera OSD menu.

3. Video signal level test (Not for TVI CVI AHD test)

Test video signal strength attenuation, longer video signal cable will cause the image to be dim, and reduce the image dynamic range, video signal is too strong, it will cause the virtual shadow, and reduce the sharpness of the image. It also can real-display the video level value, if out of range, notices will be display in the screen.

4. PTZ controller

Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position.

5. Enhanced color bar generator

The tester sends out color bars via its BNC output to the monitor. This is used to test for a problem in the cable going from the camera back to the monitoring area

6. DC12V 1A output power

Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.

7. Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

8. Cable tester

Test LAN cable or telephone cable.

Connect LAN cable or telephone cable with the HD coaxial tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as the serial number of the cable tester kit.

9. PTZ controller

Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232 interface, test the PTZ control command data whether received anomaly and RS485/RS232 data transmission.

Screen displays 16 hexadecimal codes such as

PELCO-P:A0 00(Add) xx xxxxxx AF xx

PELCO-D:FF 01(Add)xx xxxxxxxx

10. PTZ address scanning

Search up the ID of PTZ camera. Help the engineer search the speed dome address quickly.

19. LED lamp

Press the LED On/Off button to use the LED flashlight.

20. HD coaxial, PTZ control and color bar generator shortcut key

HD coaxial, PTZ control and color bar generator shortcut key, easy to operate

21. F1, F2 User-defined shortcut keys

The user-defined shortcut key is designed for improving the efficiency for the engineer, anytime press, easy to operate.

Note With sign“*”means functions are optional, Optional function need pay additional cost if asked to add any one of them in the tester

CVI test Optional CVI video signal test 1 channel CVI in BNC interface support 720p 25/30/50/60fps,1080p 25/30fps,camera OSD menu control over coaxial cable TVI test Optional TVI video signal test 1 channel TVI in BNC interface support 720p 25/30/50/60fps,1080p 25/30fps,camera OSD menu control over coaxial cable Model HD coaxial tester HD-2800H TVI Video Test Signal mode NTSC/PAL (Auto adapt) Display 3.5 inch digital TFT-LCD ,480 RGB x 320 resolution LCD adjustment Brightness, Contrast, Saturation adjustable Video IN/OUT 1 channel BNC Input & 1 channel Output Video Output Mode 1.0 Vp-p Video Level test Level test Video signals measured in IRE or mV (not for TVI,CVI ,AHD) Video level meter (Optional) Video Level meter PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement PTZ controller Communication Support RS232 and RS485 PTZ Protocol Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. Baud Rate 600 1200 2400 4800 9600 19200,57600,115200bps Video signal generation Color bar generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) UTP cable tester UTP cable test Test UTP cable connection status and display in the screen. Read the number of the test box. DC12V 1A power output DC12V power output Output DC12V1A power for camera Audio input test Audio input test test the pickup and other audio equipments on the front-end RS485 data analysis Data Monitor Captures and analyzes the command data from controlling device 1 channel AHD in BNC interface support 720p 25/30/50/60fps,1080p 25/30fps,camera OSD menu control over coaxial cable AHD test AHD video signal test 1 channel TVI in (BNC interface) support AHD 2.0 version, 720p,1080p ,camera OSD menu control over coaxial cable POWER Power Adapter DC 5V 1.5A Battery Built-in 3.7V Lithium polymer battery ,3000mAh Rechargeable After charging 3-4 hour, working time lasts 11 hours Low Consumption Energy saving technology, the battery icon real-time display Parameter Operation setting English/Chinese and other languages OSD menu Auto off 5-60 (mins) Keytone On/Off General Working Temperature -10-+50 Working Humidity 30%- 90% Dimension/Weight 194mm x 112mm x 48mm / 540g
