3.5″ Multi 12V1A output/Audio CCTV Tester PTZ Controller / Video signal generator / UTP cable tester/Audio tester
This product is designed for On-site installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, DC12V/1A power for camera, Audio input test, generating images, capturing data of RS485 and testing LAN cable etc. With feature of easy operation and portability design, it can simplify the installation and maintainance of the video camera. Also it enhances the working efficiency with lower expenditure of the project.
CCTV Tester Application:
1. CCTV system installation and maintenance
2. Dome camera and All in one camera testing
3. The CCTV transmitting channel testing
4. PTZ controller
CCTV Tester Features:
1. 3.5″TFT-LCD , 960(H)×240(V)resolution.
2. DC12V 1A power supply for camera.
3. Audio input testing.
4. PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position
5. PTZ continuing rotate test
6. Video displaying. Automatically adapts and displays the video format of NTSC/PAL.
LCD Brightness/Contrast/Color Saturation are adjustable.
7. Video Level testing, video signals measured in IRE or mV
8. Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-
system colorful imagines)
9. Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.
10. Cable testing. It is powerful in testing LAN cable, measuring the connecting status ,displaying the sequence of connection
and the NO. of the LAN cable.
11. Multi-interface and Multi-baudrate. Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to
19200bps.
12. Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
13. PTZ address scanning, search up the ID of PTZ camera.
14. Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs advanced power control and protection circuit. The
device is high power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging
for 4.5 hours.
CCTV Tester Specification:
| Model | CCTV Security Tester 893 |
| Video Test | |
| Signal mode | NTSC/PAL (Auto adapt) |
| Display | 3.5 inch digital TFT-LCD ,960 x 240 resolution |
| LCD adjustment | Brightness, Contrast, Saturation adjustable |
| Video IN/OUT | 1 channel BNC Input & 1 channel Output |
| Video Output Mode | 1.0 Vp-p |
| Video Level test | Video signals measured in IRE or mV |
| Power Output | |
| Power Output | DC12V, 1A |
| Audio Test | |
| Audio input | 1 channel Audio input |
| PTZ controller | |
| Communication | RS232, RS422 simplex and RS485 |
| PTZ Protocol | Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
| Baud Rate | 150,300,600,1200,2400,4800,9600,19200bps |
| Video Signal Generation | |
| Color bar generation | Output channel colorbar video signal for testing monitor or video cable |
| UTP CABLE TEST | |
| UTP cable test | Test UTP cable connection status and display in the screen. Read the number of the test box. |
| RS485 data analyst | |
| Data Monitor | Captures and analyzes the command data from controlling device |
| POWER | |
| Power Adapter | DC5V, 2A |
| Battery | Built-in 3.7V Lithium polymer battery ,3000mAh |
| Rechargeable | After charging 4.5 hours, working time lasts 12 hours |
| Low Consumption | Energy saving technology |
| General | |
| Working Temperature | -10°C—+50°C |
| Working Humidity | 30%-90% |
| Dimension/Weight | 175mmx94mmx40mm/360g |

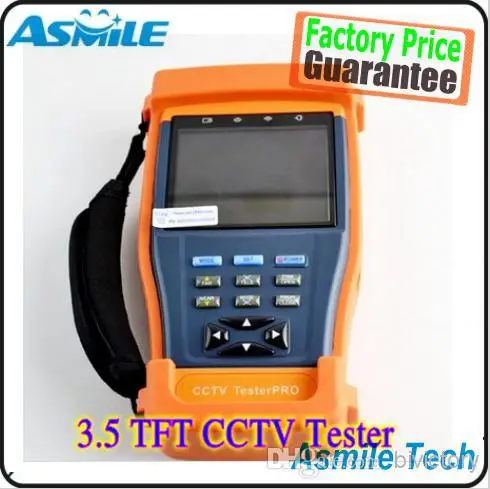

Product picture:
.
