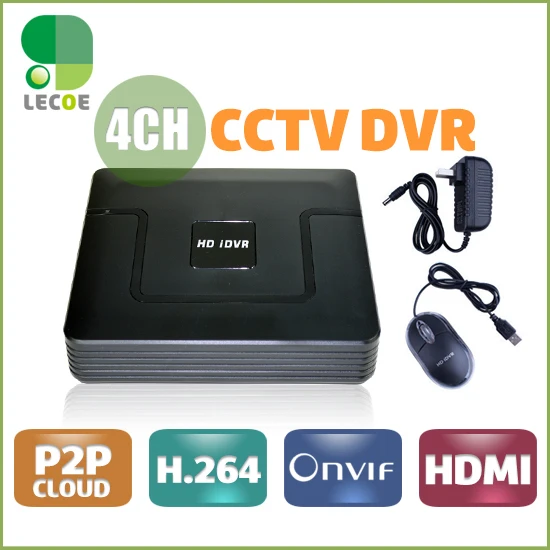

4 Channel CCTV Digital Video Recorder H.264 CCTV DVR Recorder P2P Cloud 4ch Full D1 Up to HD 1920*1080 CCTV DVR Recorder
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
4CH FULL D1 H.264 DVR
4 Channel H.264 Pentaplex DVR with VGA
Video Input/Output: BNC 4CH / BAN 1CH
Audio Input/Output: RCA 1CH / RCA 1CH
Video Compression: H.264
Display Frame Rate:NTSC:120fps/ PAL:100fps,Recording Frame Rate:120fps / PAL:100fps
Pentaplex Function:Live View, Video Recording, Playback, Backup, Control & Network Monitoring
1 RJ-45 Ethernet connector, Static, Dynamic IP and DDNS , Support Internet Explorer and special client software
PTZ, RS485
1 SATA Hard Disk interface
Support remote view by Mobile phone, I-Pad, I-Phone, etc…
Support IE browser centralized monitoring and CMS Software for multiple DVR (up to 36 cameras view per screen),
per screen can monitoring and playback from multiple DVR images,
thorough solve most of the DVR can only manage a single DVR,
as well as monitoring and playback can not be a problem at the same time.
|
Model NO. |
LECOE-MINIDVR1004B |
|
VIDEO |
|
|
VIDEO SYSTEM |
NTSC/PAL Switch Selectable |
|
INPUT |
BNC*4,1.0Vp-p,75ohm |
|
Video Output |
1 CH BNC(1.0Vp-p,75?); HD VGA Output |
|
SPOT |
NO |
|
AUDIO |
|
|
INPUT |
1CH, RCA |
|
OUTPUT |
1CH, RCA |
|
CONTROL |
|
|
MOUSE |
USB2.0 |
|
IR CONTROLLER |
NO |
|
STORAGE |
|
|
BUILD IN INTERFACE |
SATA HDD: 1 HDD up to 2TB (No HDD Included) |
|
DISPLAY |
|
|
DIVISION |
1, 4 |
|
OPERATIONAL |
|
|
COMPRESSION |
H.264 Main Profile |
|
RECORDING MODE |
Manual/Schedule/Motion Detection/Sensor |
|
RESOLUTION |
NTSC:(1920*1080),D1(704*480),HD1(704*240) |
|
PAL:(1920*1080),D1(704*576), HD1(704*288) |
|
|
RECORD FRAME RATE |
NTSC:120FPS@D1 |
|
PAL:100FPS@D1 |
|
|
4CH D1 Realtime Recording |
|
|
QUALITY |
Worst, Worse, General, Good, Better, Best |
|
MOTION DETECTION |
YES |
|
PLAYBACK |
|
|
PLAYBACK FRAME RATE(PAL) |
120(100)FPS@HD1; 4CH HD1 |
|
MULTI CHANNEL PLAYBACK |
1, 4 |
|
SEARCH METHOD |
Time, Event, Channels and Calendar |
|
COMMUNICATION |
|
|
REMOTE SOFTWARE |
Remote Client, IE Brower, Mobile, CMS, Firefox, Google Chrome |
|
REMOTE OPERATION |
Remote view, remote playback, remote setup |
|
NETWORK SERVICE |
TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE |
|
MOBILE PHONE |
Support Windows OS, Symbian OS, iPhone ,Blackberry and Android operation system Mobile phone |
|
WAN RJ45 |
10/100 Mbit/s |
|
GUI INTERFACE |
Supported GUI 16 Bit True Color |
|
PTZ PROTOCOL |
Yes, RS485 |
|
BACKUP |
|
|
EXTERNAL |
2*USB2.0 |
|
NETWORK |
YES |
|
GENERAL |
|
|
ALARM IN/OUT |
NO |
|
OPERATION TEMPERATURE |
10°~55° |
|
WORKING HUMIDITY |
10% ~ 90% |
|
POWER CONSUMPTION |
DC 12V 3A |
NOTE: DVR’s DO NOT INCLUDE HARD DRIVES BY DEFAULT
Package Included:
* (1) 4CH DVR
* (1) Mouse
* (1) Power Supply for DVR
* (1) User’s Manual
* (1) CD Software
1. CCTV System connection Diagram
2.View by local monitor.
