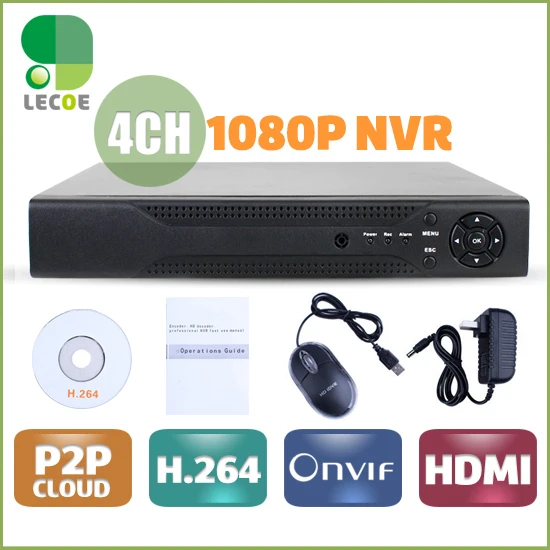

4 Channel cctv Network Video Recorder 1080p IP NVR 4CH Support ONVIF 2.0 H.264 HDMI cctv nvr for ip camera
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
Features
1.H.264 High profile compression algorithm ideal for standalone DVR
2.Realtime live display up to 4/8 cameras
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission
5.Multiple control methods:IR remote controller,USB mouse and front panel press button
6.Smart video detection:motion detection,video blind,video loss
7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
8.Pan Tilt Zoom and Speed Dome Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,pattern,auxiliary function supported
9.Easy backup methods: USB devices,remote network and client software backup
10.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload
11.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
12.Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system statu,event log,e-mail & ftp function
13.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.
14.With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.
15.Enable strong multi-way synchronization with max 1/4 channel playback, realize the zero-delay between playback channels
16. Support Standard Onvif 2.0 protocal
17. Support cloud,no need to do router mapping, just 1 step go to internet with cloud technology
|
System |
Model |
|
|
Operating System |
Embedded LINUX |
|
|
System Resources |
Pentaplex function:live,recording,playback,backup & remote access |
|
|
Operation interface |
16-bit true color graphic menu operation interface, support mouse operation |
|
|
Preview |
1/4 |
|
|
Video |
Video Standards |
PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
|
Video Compression |
H.264 High profile |
|
|
quality supervision |
Monitor: D1; VGA: high definition; HDMI: hd |
|
|
Video Input(IP) |
4x1080p/4*960P/8CH D1 |
|
|
Video Recording |
1080p/960P/720P/960H/D1/HD1/CIF/QCIF |
|
|
Motion Detection |
Zones:396(22*18)detection zones, Multi-level sensitivity can be set (Local channels only) |
|
|
Audio |
Audio Conpression |
G711A |
|
Bidrectional Talk |
N/A |
|
|
Record & Playback |
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
|
Playback |
1/4channel playback simultaneously |
|
|
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
|
Storage & Backup |
Space Occupation |
Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel |
|
Video saved |
Local HDD,network |
|
|
Backup Mode |
Network download/Flash stick/USB/SATA |
|
|
Interface |
Video Input(BNC) |
N/A |
|
Video Output |
1ch BNC output, 1ch VGA output, 1ch HDMI |
|
|
Audio Input |
N/A |
|
|
Audio Output |
1 channel RCA |
|
|
Alarm Input |
N/A |
|
|
Relay Output |
N/A |
|
|
Net Interface |
RJ-45 10M/100M |
|
|
PTZ Control |
NO |
|
|
USB Interface |
2* USB2.0 port for mouse and backup |
|
|
Hard Disk |
1 SATA port(Max 1 x 4T) |
|
|
Environmental |
Power Supply |
12V/3A |
|
Dimension |
255 x 225 x 45mm |
|
|
ONVIF |
Standard 2.0 |
NOTE: NVR’s DO NOT INCLUDE HARD DRIVES BY DEFAULT
Package Included:
* (1) 4CH NVR
* (1) Mouse
* (1) Power Supply for DVR
* (1) User’s Manual
* (1) CD Software
