4 channel video balun BNC Male Pigtail 4Ch Passive UTP CCTV Transceiver RJ45 coax adapter transmission

4 channel Passive UTP Video Balun Transmitter Receiver RJ45 Active

Video Transceiver Introduction:

The 7 different model of 4 channel Video Transceivers are passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported. “UP-the-coax” type P/T/Z signals may be sent over the same wire pair. The unparalleled interference rejection and low emissions of the 4channel Balun transceivers allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of a shared or existing cable plant. With built-in transient protection, damaging voltage spike problems are eliminated.

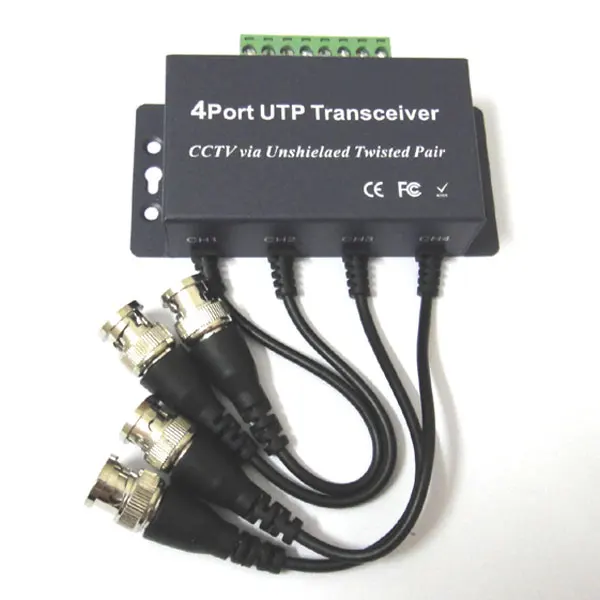

The 4 channel passive CAT5E video transceiver BALUNs have waterproof ABS plastic case with female BNC and screw terminal connector, metal case with female BNC connector and RJ45/terminal screw socket, and metal case with 180mm coax cable pig tail female BNC and RJ45/screw terminal connector 7 different models.

Equipment Specifications:

Cable Distance: Up to 2000ft Transmitter-Receive UTP Cat 5E or better.

Point to point transmission of real-time PAL, NTSC or SECAM CVBS video signal.

Transient protection, ESD protection, damaging voltage spike problems is eliminated.

Technical specifications:

1. Video Frequency Response: DC to 6 MHz
2. Common-model/Differential-mode Rejection: 15KHz to 5MHz, 55dB typical.
3. Loop Retum Loss: over 15dB
4. Line Impedance: Female/Male BNC 75 ohms, CAT5 line, Terminal 100 ohms.
5. Wire Type: One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm). Category Type Cat 5 or better. Impedance 90-120 ohms.
6. DC Loop Resistance 52ohms per 1000ft (18 ohms per 100m).
7. Differential Capacitance 19pF/ft max(62pF/m max).
8. Pwer Supply: No external power required

Environmental:

Temperature: -20C to +65C.

Humidity (non-condensing): 0 to 95%.

Package Included: 1x 4 channel Passive UTP Video Balun Transmitter Adapter
Warranty Term: One Year Warranty
