4 loops Fire Alarm Control Panel 255 addressable points per loop, maximum 64 loops Cabinet type

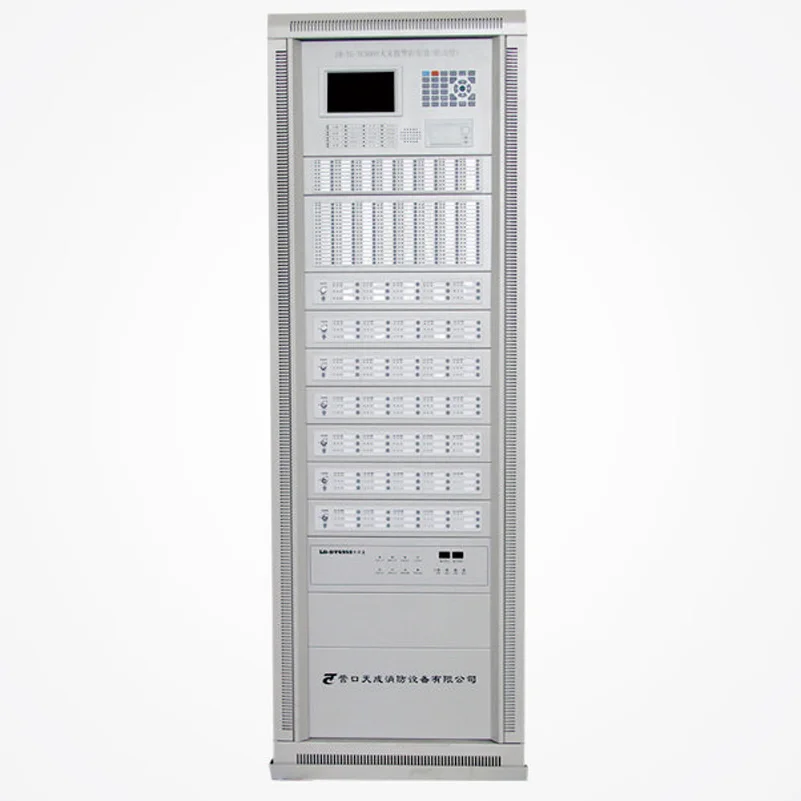

TC5000 Fire Alarm Control Panel (Linkagetype)

Color menu display interface

Intelligent bus control mode; maximum 255 addressable points per loop, maximum 64 loops; maximum 960 fire display panels

Connect with intelligent bus control panel of 64 or 128 loops, maximum 32 panels

Connect with multi-wire control panel of two-wire or three-wire system, maximum 32 panels

Glass fuse per loop

Black box function, optional “set-up box” function

Wave filtering style output: loop output, multi-wire output, power output, sounder strobe output, fire relay output

Providing independent control password for the significant gas spraying device

Design loop protocol yourself

Vertical structure, tall and grand

Language support: simplified Chinese, English (America), English (England)

Technical Specifications

Mains supply:

AC220V (5A)

Voltage range: +10%～-15%

Backup battery:

DC24V

12/24AH sealed lead acid battery

LCD screen size:

7-inch colorLCD screen

Resolution: 800×480

Operating Environment:

Temperature: 0°C～+40°C

Relative Humidity: ≤95%, non-condensing

Capacity: 16320 addressable points

Dimension (L×W×H): 600mm×480mm×1800mm

———————————————————————————————————————————————————————–
