433Mhz 868Mhz Wireless Outdoor PIR motion sensor Outdoor Perimeter Alarm Pet immunity PIR Motion sensor

433Mhz 868Mhz Wireless Outdoor PIR motion sensor Outdoor Perimeter Alarm Pet immunity PIR Motion sensor

Standard pacakge include :

Wireless outdoor dual PIR Motion sensor X 1Piece

A bag of screws X1

outdoor PIR Detector / Solar Detector / Mircowave + PIR Detector

• outdoor PIR Detector / Solar Detector / Mircowave + PIR Detector



•

  Product Description

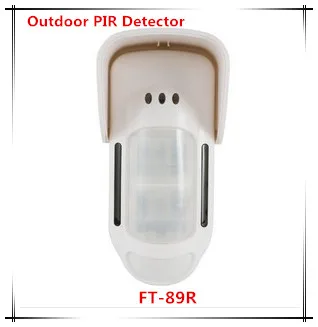

  FT-89R outdoor detector is environmentally friendly/green, Correlation technology interface software, only if both dual pir sense the same heat level, will the detector trigger. Equipped with dual microwave module, thus has two independent frequencies, which proves highly reliable. (Most other detectors use single channel analysis, prone to false alarms)

  PE outdoor detector uses massive frensal lens area, and a bottom blind corner lens, enabling it to detect better (most other detectors are fitted with much smaller frensal lenses and no blind corner bottom lens) Uses DMT, DSP technology, MW conflict proof technology, anti white light technology, auto temperature compensation and energy analysis technology, anti sway, anti masking MW shaking technogy, it has 4x different choice of frensal lenses.

  Product Inspection

  1. 2 dual PIR + MW digital technology
  2. adopts self designed mask with DMT technology – anti masking function
  3. digital pulse count adjustable for each PIR detection separately
  4. pet immunity <35kgs or 75cm height
  5. detect range 0m-27m based on frensal lens fitted

  (Frensal lens model RL300F – 15m/25°; RL300B – 12m/110°; RL-300 – 15m/110°; RL300LR – 27m/15°)

  1. alarm indication LED (red light) / pre trigger single indication LED (green light)
  2. unique waterproof design IP 65 rating
  3. built-in anti remove button / anti-white light switch
  4. anti -EMI >30v/m( 30mhz-1ghz) / anti white light:>15000 lux
  5. wiring indication when connected, with external power adapter or control panel
  6. mw frequency 10.525 GHz
  7. anti -sway(tree):swing range less than 20 degrees frequency:0.5-3hz
  8. anti-sway(clothing):swing range less than 20 degrees frequency:0.5-3ghz
  9. wireless emitting / receiving distance 250m (in open area)
  10. wireless emitting frequency: 433MHz / 868MHz
  11. working voltage: 6vdc
  12. built-in 5pcs 1.2V/1000mA rechargeable Ni-MH battery ( standard package batteries not included, if need 1.2V/1000mA battery should buy extra)
  13. adjustable bracket to match different detect angle requirement
  14. solar panel with hi-rate charge feature.
  15. built-in Ni-MH battery – consumption current is ≤18mA (static) / ≤80uA (alarm)
  16. installation height 1.9m-2.4m
  17. installation/wall/pole/barrier mountable with wide rotation design range
  18. working temperature: -10 c- +50c
  19. dimension is 310*100*120mm / ivory white color

  wireless emitting	receiving distance 250m(in open area)
  wireless emitting frequency	433MHz / 868MHz
  working voltage	6vdc
  dimension	310*100*120mm
  working tempreture	-10°C- +50°C



• Package Weight: 2.0kg (4.41lb.)
• Package Size: 25cm x 20cm x 22cm (9.84in x 7.87in x 8.66in)

Compatible with our ST-VGT, ST-IIIB , ST-IIIGW and others focus alarm System
