7 inch touch screen PSTN GSM alarm system,dual-network home security alarm system with fire alarm smoke sensor,siren, keypad

7 inch touch screen PSTN GSM font b alarm b font system dual network home security
Click to see details
7 inch touch screen PSTN GSM alarm system dual network home security alarm system with fire
100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $235.00 / piece
Sale price:  US $220.90 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

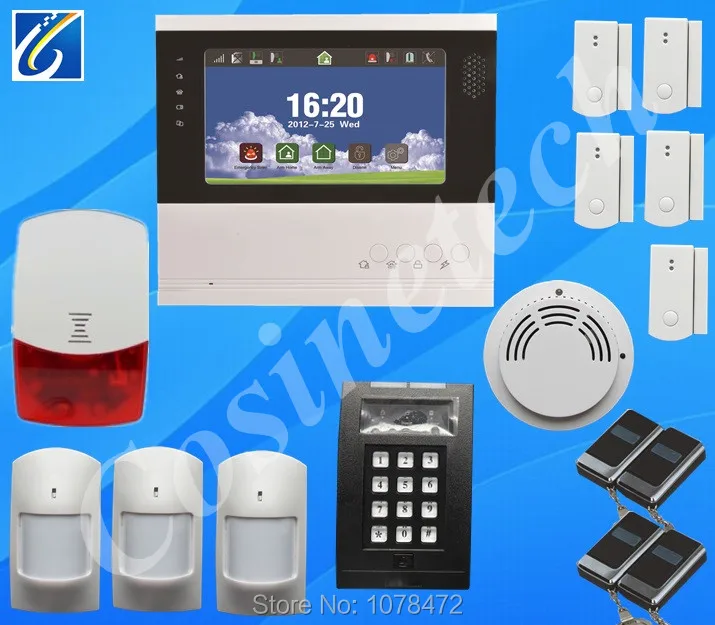

7 inch touch screen PSTN GSM alarm system,dual-network home security alarm system with fire alarm smoke sensor,siren, smart sensors, LED external keypad

Packing list:

GSM PSTN alarm system main unit X 1

English User manual X 1
Built-in standby battery X 1
Power Adaptor X 1
Remote controller X4
Door / Window Sensor X 5
Wireless PIR Detector X 3
wireless indoor strobe siren x 1(with built-in battery)  Wireless LED password external keypad x  1 Wireless smoke sensor x 1  Product Introduction

Function Features

1) 7 inch touch screen,Friendly interface,detailed operate menu,color displays icons and words;

2) Calendar and clock function.

3) Multi-language: has the operate menu in 8 languages:English/German/Italian/Dutch/French/Czech/Finnish/Chinese for option.

But the user manual is in daily English which is easily understood.

One alarm panel only has one language, users can not change freely.

4) Multi-version(differentiate in network and defense zones):

Pure GSM version:31 wireless zones (each zone supports max 4 wireless sensors),8 wired zones(optional).The original version has no 8 wired zones, if you need,please

leave massage when order.

Dual-network version with GSM+PSTN(telephone landline):31 wireless zones (each zone supports max 4 wireless sensors) and 2 wired zones.

Pure PSTN version:31 wireless zones (each zone supports max 4 wireless sensors) and 2 wired zones.

All three versions are compatible with wireless siren.

The default version is the pure GSM with 8 wired zones,and English menu.If you need other versions,please contact us or leave clear messages when order, or we will send

you the English version with 8 wired zones.

6) The version with GSM network has GSM 850/900/1800/1900MHz module,which is applied to all around the world. When with GSM function,alarm inform is transmitted in the

form of phone call, SMS;

7) In system can preset max 5 groups phone numbers, alarm call will be in first priority if a normal call is going; GSM module will send alarm info once the land-line cable is cut; Every group telephone number can be individually set to transfer alarm info by SMS or phone call;

8) Zone detection notification in disarm status, system can monitor the track of kids;

9) In system menu you can set Pass By ON/OFF, zone type, Entry Delay ON/OFF for each zone;

10) Smart-logical analysis technology, zone name, installation position and sensor name will be displayed when system alarms;

11) Learn sensors into alarm host by friendly interface;

12) System has non-volatile chip, information will be stored automatically if power is off;

13) Optional smart functions, including check door\window status or voltage status automatically,low voltage of host or sensor alarm, uploads low voltage status to CMS(Central

Monitoring Station);

14) Support optional wireless “ding-dong” doorbell;

15) Alarm system can be armed/disarmed by phone call, or SMS, or wireless remote controller, or host keypad, or wireless operation keypad

16) System works with AC\DC power supply and built-in high energy lithium battery, system will give notification when low voltage, landline is cut and low power supply happen;

17) “Black Box” functions, system can store max 99 alarm records and 100 operation records;

18) Host is compatible with Contact ID protocol, suitable to build CMS;

19) Rechargeable lithium battery: 7.4v1200mAH

20) Optional extended function:

Support IP cameras: we manufacturer can add the module to support IP cameras if customers need.(need some surcharge)

Can build the home appliances control system: we have the Smart Power Plug(switch) to match with this alarm host, users can turn on/off the household appliances and

lights when using the Smart Power Plug. If you need it,please contact us.

More other smart function will be improved and replenished.

7 inch touch screen alarm system menu

(Here is the default version in English language)

Technical Parameters

Power supply: 110VAC~240VAC (adaptors meet different types in world,such as US type, EU type,UK type, AU type)

Rechargeable lithium battery: 7.4v1200mAH

GSM Frequency: 4 bands GSM850/900/1800/1900Mhz

Working condition: temperature range -10~50

Chumidity range<80%

Static current≤140mA, Alarm current≤500mA

Wireless frequency :Only 868MHz, (no 433MHZ &315MHZ)

Support max 8 wireless remote controllers, and max other 116pcs wireless sensors

Host dimension: 220mmX190mmX28mm


This alarm host is only 868MHZ, so the frequency of its accessorie must be also 868MHZ.

But the accessories as follow have both 433MHz and 868 MHz, you can purchase the 433MHZ accessories to

use with other alarm panels at 433MHz.
