720P CMOS OV9712 USB 2.0 Endoscope Borescope wide angle 170degree mini usb Camera module for atm,Medical Deveice
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
USD 28.82/pieceUSD 34.10/pieceUSD 50.60/pieceUSD 33.00/pieceUSD 37.40/pieceUSD 42.35/pieceUSD 62.48/pieceUSD 40.70/piece

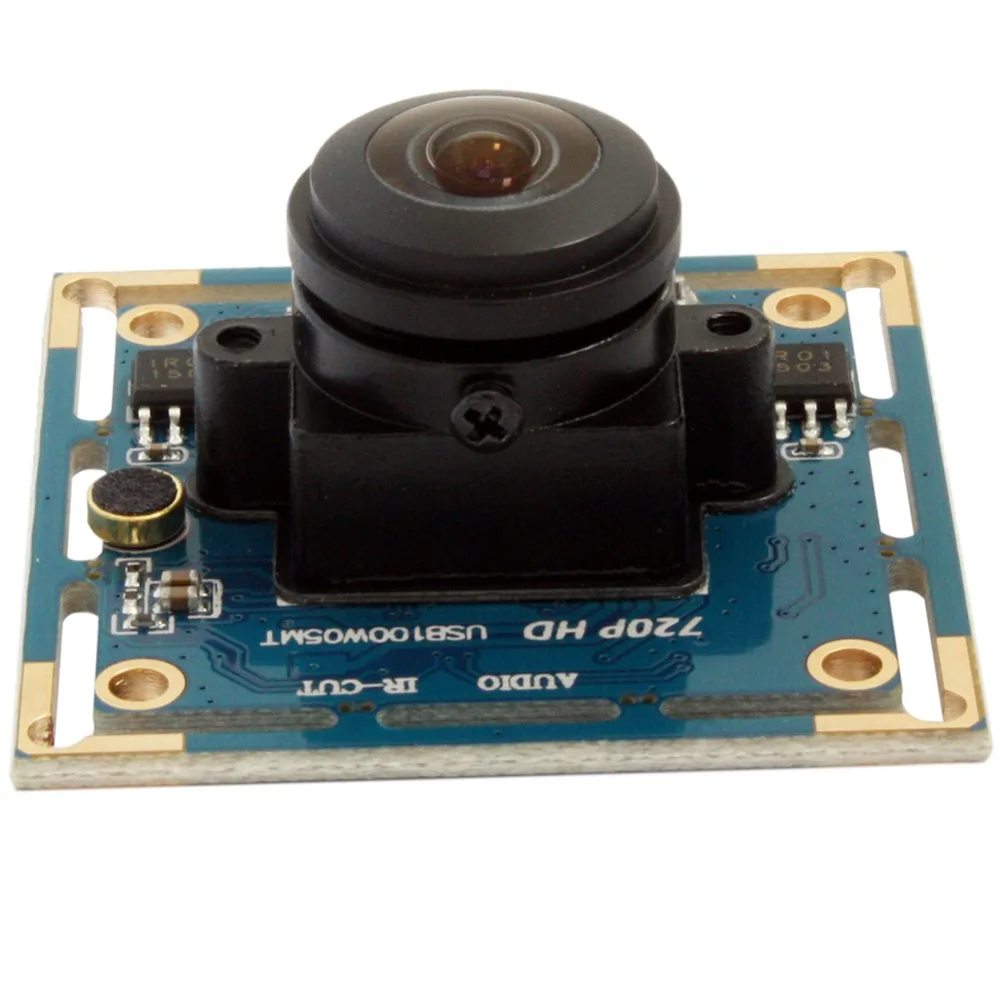

720P USB2.0 OmniVision OV9712 Color CMOS Sensor 170degree fisheye lens mini USB Camera module with Audio microphone
1) 1PC 720P usb camera module with 170degree fisheye lens
2) 1PC 1m usb cable( 2m/3m/5m optional)
Lens Size 1/4 inch
Pixel Size 3.0um X 3.0um
image area 3888 μm x 2430 μm
Max. Resolution 1280(H)X720(V)
Compression format MJPEG / YUV2(YUYV)
Resolution & frame 1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps
800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps
352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps
176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps
S/N Ratio 40dB
Dynamic Range 69dB
Mini illumination 0. 1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG)
Free Drive Protocol USB Video Class(UVC)
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure
Lens Parameter Standard 3.6mm, optional 2.1/2.5/2.8/6mm/ FOV(D)170 Degree
Audio input Support
IR CUT Connector Support 2P-1.25mm socket
LED board test connector Support 2P-1.25mm socket
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Power supply DC5V
Operating Voltage 100mA~120mA
Working current -10-70degree
Working temperature -20 to 85degree
Board size /Weight 38X38mm(Compatible 32X32mm)/ about 30g
Cable Standard 1M / optional 2M,3M,5M
Operating system request Win XP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
