8ch 1.3MP 960P/720P HD video AHD CVI TVI Fiber optical converter transceiver, single-mode single fiber 20KM, FC fiber port
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
8ch 1.3MP 960P/720P HD video AHD CVI TVI Fiber optical converter transceiver, single-mode single fiber 20KM, FC fiber port
USD 348.50/lotUSD 82.50/lotUSD 275.00/lotUSD 126.80/lotUSD 138.00/lot
Main Features:
- no compress loss real time transmit
- support 8ch HDCVI/AHD Video
- Video format compatible PAL, NTSC, SECAM;
- plug in out, easy installation
- working status by Led indicator
Technical Parameter:
|
Model number |
CA-8V |
|
Optical Interface |
FC interface, single mode |
|
Transmission distance |
0-20km |
|
Input/output Wavelength |
Transmitter(T):1310nm sender 1550nm receiver |
|
The sender input level |
>500mVp-p |
|
The receiver output level |
1Vp-p |
|
Coaxial cable |
1080p:75-5 Coaxial cable support 300M |
|
Receiver Sensitivity |
>15dB |
|
Input and output impedance |
75ohm |
|
The receiver rise and fall times: |
<0.8ns |
|
The receiver maximum jiter |
<0.2 UI |
|
Video Interface |
BNC |
|
Video |
8ch |
|
Video bandwidth |
100MHz |
|
Sample bandwidth |
10bit |
|
Baud rate |
1200-9600bps |
|
Fall code rate |
<10-9 |
|
working mode |
Half duplex |
|
Indicator |
Light chain, power supply, data, video source indicator |
|
Power Adapter |
DC5V 1A |
|
Power consumption |
≤5W |
|
Humidity: |
10%-90% non-condensing |
|
Size |
190mm×150mm×30mm |
|
Working temperature |
-40 degree ~+75 degree |
|
Weight |
1.9KG(One pair) |
Package Include:
- 1 pairs optical device (Transmitter +Receiver)
- 2 x Power supply
- 1 x User manual
For the environment:
- Security Systems
- Radio and television transmission
- Vide monitoring
- building control systems
- Train/High speed road monitoring
- Intelligent Traffic Monitoring System (ITS)
- Remote multimedia teaching / campus monitoring
- long-distance radio and television transmission system

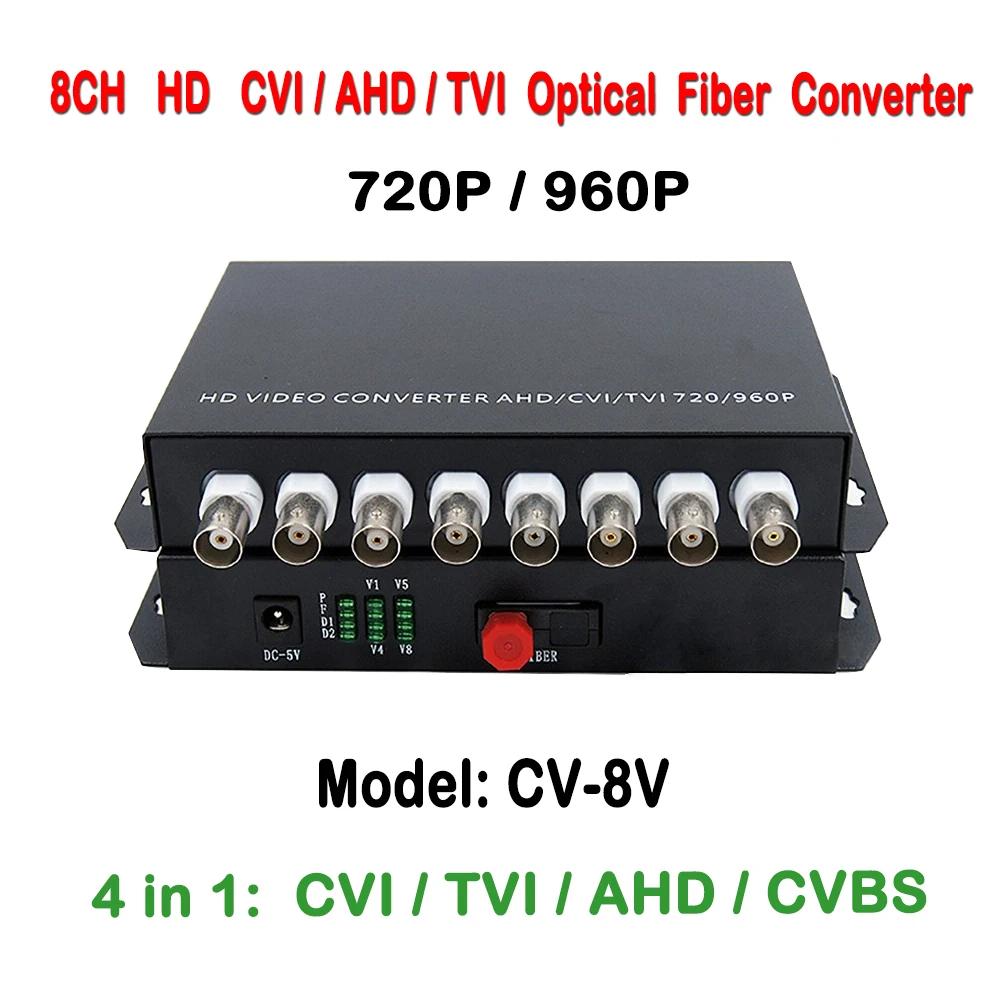

Product photo:
