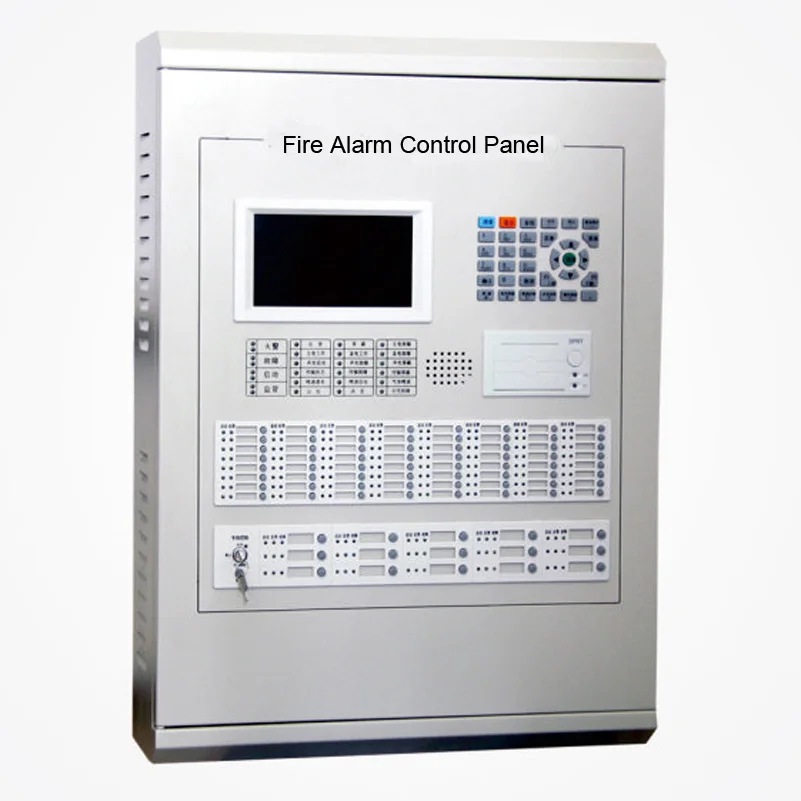

TC5100 Fire Alarm Control Panel
Color menu display interface Intelligent bus control mode; maximum 255 addressable points per loop, maximum 4 loops, maximum 60 fire display panels Connect with intelligent bus control panel of 64 loops Connect with multi-wire control panel of three-wire system with 15 addressable points Glass fuse per loop Black box function Wave filtering style output: loop output, multi-wire output, power output, sounder strobe output, fire relay output Providing independent control password for the significant gas spraying equipment Design loop protocol yourself Wall-mounted structure, clean and elegant Language support: simplified Chinese, English (America), English (England) Technical Specifications Mains supply: AC220V (5A) Voltage range: +10%~-15% Backup battery: DC24V 12/12AH、12/24AH sealed lead acid battery LCD screen size: 7-inch color LCD screen Operating Environment: Temperature: 0°C~+40°C Relative Humidity: ≤95%, non-condensing Capacity: 1020 addressable points Dimension (L×W×H): 500mm×175mm×700mm
———————————————————————————————————————————————————————–
Dear Friends, Please kindly Note:
1. Please understand the relationships between the value of Invoice declaration(for custom clearance) and the risk in your country, such as Brazil. Much lower value declaration may cause problem/risk during custom clearance. 2. Please leave a tax number under your order for delivery requirement. 3. All international expresses delivery are not allowed to send battery, so Batteries are not included in the independent smoke, the encoder and panel shipments. 4. For the free shipping products , we will choose one express which is convenient for both of us .If you don’t like any specific international express, please feel free to tell us, we will change to another.
We produce a variety of independent sales distribution smoke detectors , combustible gas detectors, fire alarm systems, security alarm systems products among consumers enjoy a higher status . With many retailers and agents to establish a long-term stable cooperative relations .
Welcome ODM OEM.
