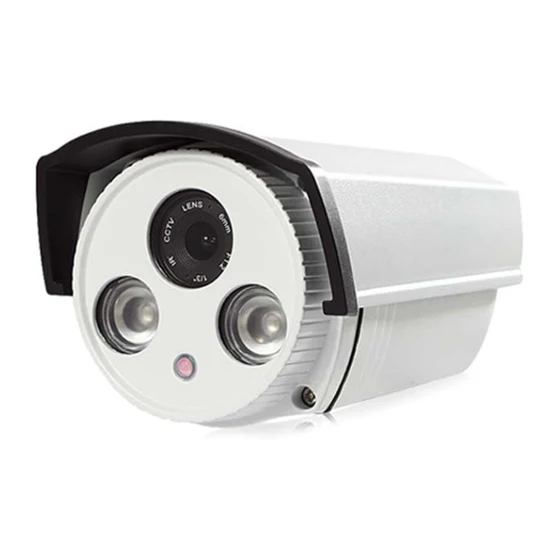

AHD 2500TVL Waterproof Outdoor 1920*1080P Video Surveillance Array infrared IR-CUT Security 2.0MP CCTV Camera With Bracket

• Wide Angle Crisp Image: 1/2.7-inch CMOS sensor & Megapixel Lens for crystal clear image with 90 degree

• Enhanced Night Vision: Latest tech anti-reflection black film panel, IR filter and upgraded Led with 65-100 feet IR range for superior image at night.

• IP66 Weatherproof: Sturdy aluminum camera construction with IP66 rating for any weather conditions.

• Compact Design: Compact size for easy installation indoor and outdoor.

• Power supply, coaxial video cable and DVR are NOT INCLUDED but required

This compact camera is perfectly suitable for various surveillance applications. Thanks to its 1/2.7-inch image sensor and megapixel lens, it could provide crystal clear image with 90-degree wide angle of view. With upgraded leds and black film panel, it could provide up to 100 feet of night vision and superior image even in total darkness.It could be easily installed indoor or outdoor.

Specifications:
Image Sensor: 1/2.7-inch CMOS image sensor
Effective Pixel: 1920*1080 in HD mode; 1000TVL in 960H Mode
Lens: 3.6 mm fixed megapixel lens
Infrared LED: 65-100 feet infrared distance based on environment.
Camera Feature: Day/Night; Auto/Manual White Balance; Gain control; Noise Reduction; Picture Adjustment; DWDR; OSD support; UTC support (HD mode)
Housing: Metal, IP66
IR-cut Filter: Yes
Power Source: DC12V±10%; 700mA
Operation Temperature: 14F-122F, RH95% Max

Cristal Clear Image with 90-degree Viewing Angle

Combined with big size image senor and HD lens, it could reach 90 degrees of horizontal viewing angle.

• 1/2.7-inch CMOS sensor with 3.0 μm-square unit pixel size could capture more light, gain more information for crisper image.

• 3.0 Megapixel Lens provide more details of the image, especially for edge areas.

IR Anti-reflection Black Film Technology

IR anti-reflection BLACK FILM panel with 3 layers for noticeable improvements in night vision.

• IR amplification layer

• Light filter layer

• IR adjustment layer

• AHD Cameras Image Quality

• THE following picture is Real effect picture at night,the video showed the effect in the day

•

•

See In the Dark Up to 100 Feet Better heat dissipation effect to expand lifespan of cameras. 20% less brightness attenuation for longer IR range. Unique molding cap for more uniform light. 2 pieces of high power Led could provide up to 100 feet of night vision.	IP66 Heavy-duty Metal Weatherproof Camera With sturdy IP66 metal housing, it could withstand toughest weather conditions. The IP66 rating camera has been tested as completely dust tight and able to endure any direction powerful water jets. Excellent quality housing built for the reliability of our surveillance cameras.	Compact design make it ideal for versatile surveillance and offers a visible deterrent to help deter intruders and protect your property
