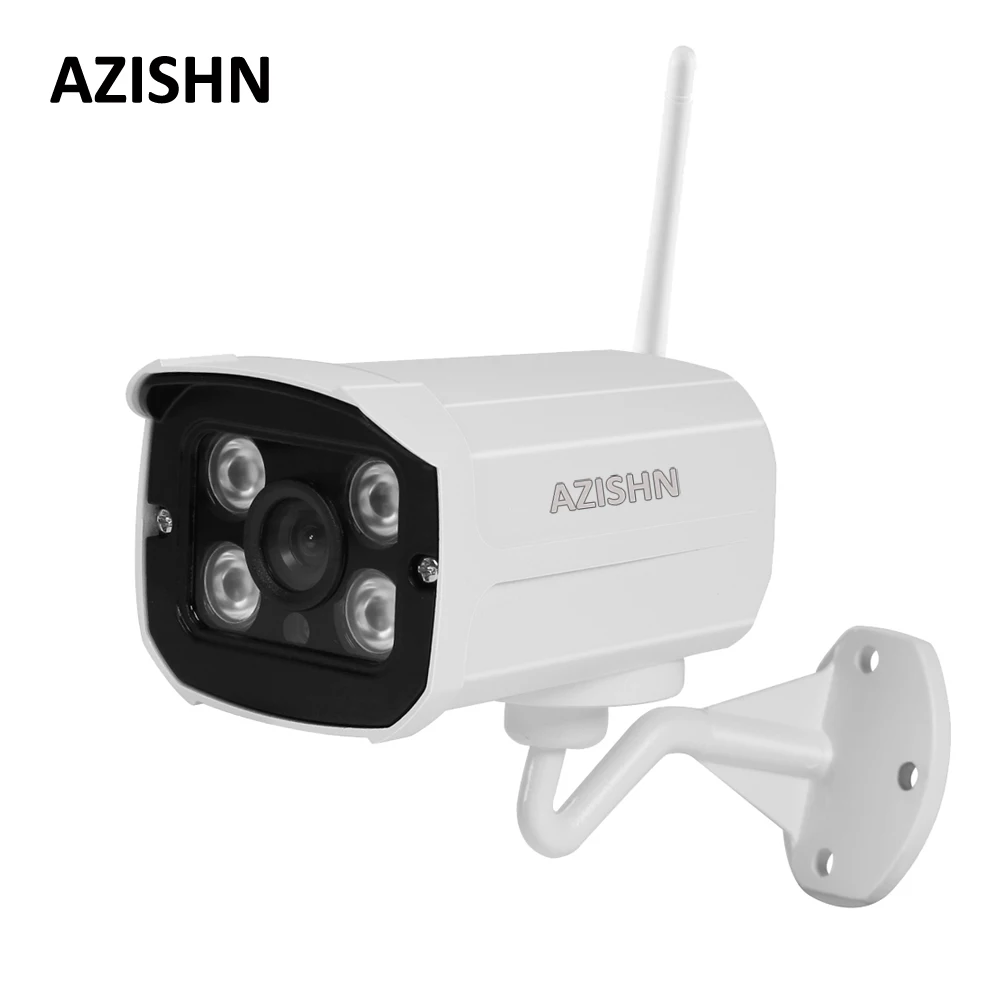

AZISHN Wifi IP CCTV Camera 720P/960P/1080P Wired wireless Yoosee Security metal Outdoor Camera 4IR Support SD Card Up To 128GB

NOTE:The operating video is only for reference, different shell but same system

Camera Features:

– Support AP connection

– Supports Both Wi-Fi and wired connectivity

– Supports micro SD cards up to 128GB (not included)

– Supports ONVIF, works with third-party NVR

– Supports mobile video surveillance (iOS, Android) via Yoosee

– Motion Detection & Email Alert functions

Specifications:

System Structure : Dual-core 32-bit DSP HI3518EV200

Video Compression : H.264

Sensor : 2MP CMOS /1.3MP CMOS/1.0 CMOS Sensor Optional

Video Resolution : 1920*1080P/1280*960P/1280*720P Optional

adjustable ;support frame rate from 1 to 30 frames/sec adjustable

Lens :2.8mm/3.6mm/6mm/8mm optional

IR Cut Filter : Yes

Wireless : wifi 802.11b/g/n

Motion Detect & Email Alert : Supports

Connector :1PCS LAN Port,1PCS Power Connector,1PCS Reset Button

Mobile Monitoring : Support IOS & Android With APP Yoosee

IR LED : 4pcs Array IR LED With max 20Meters IR Distance

Woring Temperature : -20 to 60 degree

Power : 12V 1A-2A

​Color: white

Shell:metal

TF Card Slot : Support ( Max 128Gb TF Card )

Important notices:

1 .SD Card NOT included

​2. To install a Micro SD card, open the camera and look for the SD card slot on back of the camera board

3. If repairs are required, contact the seller for instructions

3. This camera does not support website browsers such as IE, Chrome

4. This camera does not cloud viewing and saving information

5. Recording time depends on the SD Card being used. Check the recording times below for reference :

16Gb: 4-5days

32Gb :8-10days

64Gb:18-20days

128Gb:28-30days

6. 5G Network WIFI not supported

Package included:

1 x IP Camera(Micro SD Card is not included)

Note:

720P/960P/1080P= 1*720/960P/1080P camera

720P/960P/1080P with 12V 2A=1*720/960P/1080P camera + 1*12V 2A power supply(Default send EU plug , if you need AU/UK/US plug , please leave message to let us know )

Q & A Q: How about the Network Function .does it support WiFi ? A-1: This camera can only work with 2.4GHz Wifi network,so please check your wifi network before placing order. The WiFi distance depends on signal strength of your Wifi network.Please modify your wifi network name if it’s very long or with some symbols,as it may cause the camera connection failure. If your Wifi network is not 2.4GHz,Please connect the camera to your router through LAN cable. A-2: If you failed to use the smartlink to connect your camera to your WiFi. Please try to connect your camera to your router through Lan cable,then set ‘Network settings’ – ‘WiFi’ . choose your WiFi network and input WiFi password ; Q: I need safety and also my families . Does it provide alarm for us ? A: This camera with motion detection function.It can Buzzer/pop alarm message/push email when detect motion action. Q: I care about Real time video review of the camera .is it HD and clear ?Is it useful at night ? A-1: You can review the live video through iPhone/Android mobile phones/Windows PC . A-2: The camera work day&night.The video is color in daytime,black&white at night. A-3: The camera support desk/wall/ceilling installation.You can reverse the image according your installation way.Video formwat support PAL and NTSC. Q: I hope I can record with this camera .Do I need a memory card ? how dose it work ? A-1: Before recording .You need insert a memory card.it support 128Gb MAX . A-2: The record need about 2Gb/day .it means you need a 128Gb memory card if you want to record for a month .And you it support circle recording A-3: It supports 3 record mode :Manual Recording/Alarm Recording/Scheduled Recording . Manual Recording : the recording will start/stop according you turn on/off the record switch. Alarm Recording : the recording will start once the alarm is triggered,and you can set record 1/2/3 minutes. Scheduled Recording :you can set a time period that record. A-4: It record on SD mode .and auto circulate record is available . Every video file is 30 minutes max (about 250 Mb). it support a memory card 128Gb MAX .Please format your memory card at your first time recording. A-5: The video record can playback directly on your mobile APP. Q: I don’t want hacker view my camera .I need Safety. Will it work? A-1: The default password is 123.For your security,please modify your camera password as soon as you connect your camera to your network. A-2: If someone want to connect your camera but you don’t want to give more permission to him.you can set a Guest Password . he can just view and talk through camera and can’t set it .

How to settings in Synology?

Forward port 554 on the router.

1,Setup in AP Mode

(only connect DC12V,not need to connect RJ45):

1) Select AP connection

2) input the Wi-Fi password asked by device and create visiting password

3) click “next step”

4)enter into interface of “select Wi-Fi for device” and click on “go to set Wi-Fi”

5)jump to phone’s Wi-Fi listing interface, select your wanted device GW-AP-XXX and click on the reminder of “click here now to return to APP”

6)done

2,Setup in wired Mode

(connect DC12V and RJ45):

1) Warm tips: Before setting the camera, please press the “reset button” 7 seconds to factory reset.

2)When the camera is powered on, connect the camera a router (make sure to the router’s DHCP functions).

3) Open the Yoosee app and click the“+”in the top right corner. Select “Add new device- wired connection.”The router will discover the camera. Next, choose “New device” and enter the password “123” and the settings should be complete.

How to turn Wired to Wifi mode:

How to setup Alarm Alert:

3,PC viewing by CMS client
