Big promotion Smart home security GSM alarm system,support IOS Android APP 868MHZ GSM alarm system with 7 inch touch screen

Function Features

1) 7 inch touch screen,Friendly interface,detailed operate menu,color displays icons and words;

2) Calendar and clock function.

3) Multi-language:Up till October of 2014, it has the operate menu in 8 languages:English/German/Italian/Dutch/French/Czech/Finnish/Chinese for option.

But the user manual is in daily English which is easily understood.

4) Multi-version(differentiate in network and defense zones):

Pure GSM version:31 wireless zones (each zone supports max 4 wireless sensors),8 wired zones(optional).The original version has no 8 wired zones, if you need,please

leave massage when order.

Dual-network version with GSM+PSTN(telephone landline):31 wireless zones (each zone supports max 4 wireless sensors) and 2 wired zones.

Pure PSTN version:31 wireless zones (each zone supports max 4 wireless sensors) and 2 wired zones.

All three versions are compatible with wireless siren.

The default version is the pure GSM with 8 wired zones,and English menu.If you need other versions,please contact us or leave clear messages when order, or we will send

you the English version with 8 wired zones.

6) The version with GSM network has GSM 850/900/1800/1900MHz module,which is applied to all around the world. When with GSM function,alarm inform is transmitted in the

form of phone call, SMS;

7) In system can preset max 5 groups phone numbers, alarm call will be in first priority if a normal call is going; GSM module will send alarm info once the land-line cable is cut; Every group telephone number can be individually set to transfer alarm info by SMS or phone call;

8) Zone detection notification in disarm status, system can monitor the track of kids;

9) In system menu you can set Pass By ON/OFF, zone type, Entry Delay ON/OFF for each zone;

10) Smart-logical analysis technology, zone name, installation position and sensor name will be displayed when system alarms;

11) Learn sensors into alarm host by friendly interface;

12) System has non-volatile chip, information will be stored automatically if power is off;

13) Optional smart functions, including check door\window status or voltage status automatically,low voltage of host or sensor alarm, uploads low voltage status to CMS(Central

Monitoring Station);

14) Support optional wireless “ding-dong” doorbell;

15) Alarm system can be armed/disarmed by phone call, or SMS, or wireless remote controller, or host keypad, or wireless operation keypad

16) System works with AC\DC power supply and built-in high energy lithium battery, system will give notification when low voltage, landline is cut and low power supply happen;

17) “Black Box” functions, system can store max 99 alarm records and 100 operation records;

18) Host is compatible with Contact ID protocol, suitable to build CMS;

19) Rechargeable lithium battery: 7.4v1200mAH

20) Optional extended function:

Support IP cameras: we manufacturer can add the module to support IP cameras if customers need.(need some surcharge)

Can build the home appliances control system: we have the Smart Power Plug(switch) to match with this alarm host, users can turn on/off the household appliances and

lights when using the Smart Power Plug. If you need it,please contact us.

More other smart function will be improved and replenished.

7 inch touch screen alarm system menu

(Here is the default version in English language)

Technical Parameters

Power supply: 110VAC~240VAC (adaptors meet different types in world,such as US type, EU type,UK type, AU type)

Rechargeable lithium battery: 7.4v1200mAH

GSM Frequency: 4 bands GSM850/900/1800/1900Mhz

Working condition: temperature range -10~50

Chumidity range<80%

Static current≤140mA, Alarm current≤500mA

Wireless frequency :Only 868MHz, (no 433MHZ &315MHZ)

Support max 8 wireless remote controllers, and max other 116pcs wireless sensors

Host dimension: 220mmX190mmX28mm

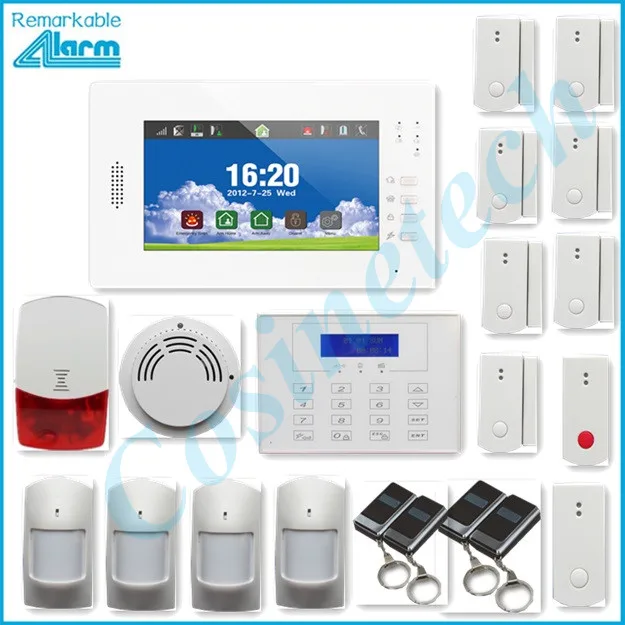

Packing content:

main unit X 1

English User manual X 1
Built-in standby battery X 1
Adaptor X 1
Remote controller X4
Door / Window Sensor X 7
Wireless PIR Detector X 4
Wireless indoor strobe siren x 1   (with built-in battery)
 wireless smoke sensor x 1
Wireless LCD keypad x 1
wireless panic button x 1
wireless doorbell x 1

Some common accessories

  • Wireless Remote Controller


  1. To control the alarm host to arm home/arm away/disarm the alarm system.
  2. Press emergency button to send emergency alarm for urgent help


  1. Power supply: disposable alkaline battery 12V27A
  2. Emitting distance: ≥100m (in open area)
  3. Service life of battery: ≤ 1 year
  4. Static current: N/A working current: 15mA
  5. Wireless frequency: 868MHz or 433MH

  • door/window sensor


  1. Power supply: rechargeable lithium battery 3.7v200mAH
  2. Wireless frequency: 433MHz or 868MHz
  3. Emitting distance: ≥100m (in open area)
  4. Service life of lithium battery: ≤3 year (rechargeable)
  5. Alarm distance: <4cm
  6. Static current: 15μA working current: 15mA
  • Wireless wide range PIR detector


  1. Artistic design;
  2. Microcomputer intelligent control, anti-electromagnetic interference, anti white light inference;
  3. Tamper alarm (Send signal to alarm host and activate alarm);
  4. High capacity rechargeable Li-ion battery, long service life, with USB charging port;
  5. Mainly monitor and control indoor stereoscopic spaces, generally set as Motion Zone.


  1. Power supply: disposable battery/rechargeable lithium battery 3.7v800mAH
  2. Emitting distance: ≥100m (in open area)
  3. Service life of disposable battery ≤1 year, of lithium battery ≤3 years
  4. Detecting distance: 110°, 10m*10m
  5. Wireless frequency: 433MHz or 868MHz
  6. Static current: 50uA working current: 15mA

  • Wireless Indoor Siren
  • Features
  1. Works with alarm host, receives wireless alarm signals from alarm host; spot alarm with sound and flash;
  2. Usually for indoor use.
  3. Power supply type is optional, with disposable battery type, or with rechargeable lithium battery type;
  4. Maximum alarm time 3 minutes;
  5. Color: Blue/ Red (optional)
