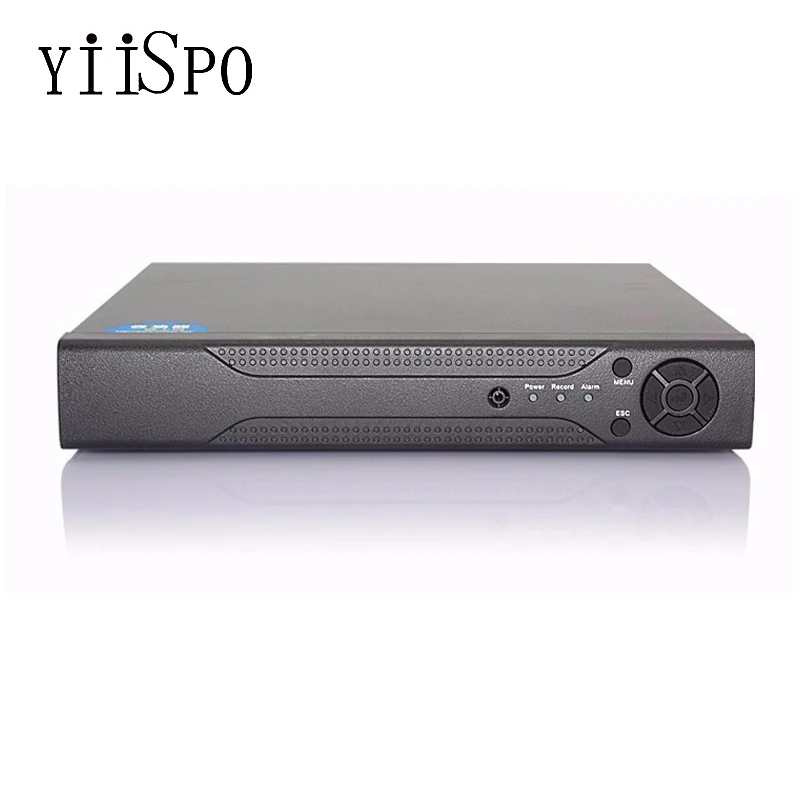

CCTV 16CH NVR Onvif H.264 HDMI 1080P Network Video Recorder for IP Camera 16 Channel 960P 8 Channel 1080P with Audio Output NVR

Item specifics

Technology: Network
Build-in HDD: None
Two-way Audio: No
Hard Drive Size: 3.5”
Hard drive Interface Type: SATA
Video Standard: PAL
Power Source: EU
Backup Type: USB Flash Divers
Audio Input: 1 RCA
Network Interface: RJ45 10/100M
Alarm Action: Email Photo
Audio Output: 1CH RCA
Video Output: 1CH HDMI 1920X1080 60Hz
Video Resolution: 960P
Model Number: NVR2016
Brand Name: HKMZ
Main processor: HI3535
Video compression: H.264(High Profile)
Video Output: RCA/VGA/HDMI
Audio Output: RCA
Video Input ( IP ): 16CH 960P /8CH 1080P
HDD ( NOT INCLUDED ): 2*SATA 3.5” (Single maximum support 4T)
Dimension: 325mm(L)* 245mm(W)* 55mm(H)
Net Weight: 1175g
is_customized: Yes
Brand Name: 16CH NVR

Product Description

Features :

Support multiple high-definition network camera access;

Support VGA, HDMI 1080P full HD output simultaneously;

Supporting web, CMS, MYEYE platform, provide SDK development;

Supports multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAILI, IP searches, Alarm Center, etc.);

Support ONVIF & GB28181;

Support several mobile system (iOS, Android, Windows Mobile, BlackBerry, Symbian,);

Supports multiple web browser access (IE, Chrome, Firefox, Safari);

More than twenty languages;

Perfect protection circuit, unique triple watchdog function;

Specification :

Model : NVR2016

Main processor : Hi3535

Operating System : Embedded Linux

Operator interface : 16-bit true color graphic menu operation interface

Preview : 1/4/9(8ch)/16

Video &audio : Standards

Video: PAL, NTSC; Audio:G.711a

Video compression : H.264(High Profile);

Display quality: VGA, HDMI: HD

Playback quality: 3M/1080P/960P/720P

Video input(IP) : 4*3M/8*1080P/16*960P

Motion detection: Support

Record & Backup: Recording mode

Manual>Alarm>Video Detection>Continuous

Local Playback: 1*3M/2*1080P/2*960P/4*720P

Search mode: Search by Time/calendar/event/channel

Record Storage: HDD or network

Backup mode:Network backup,USB hard disk, USB burner, SATA

Video I/O: 1ch RJ45/1ch VGA,1ch HDMI

Audio I/O : 1ch RCA/1ch RCA

Alarm I/O : 0/0

Network interface : RJ45 10M/100M

PTZ Control : 1*RJ485 ,Supports 18 kind of PTZ Protocol

USB :2*USB2.0 Port

ONVIF : Support

Temperature : -20degree to + 50 degree

Humidity : 10%-90%

Weight : 1175g

Power Supply : 12V/3A

Dimention : 325mm(L)*245mm(W)*55mm(H)

Package Contents :

1*16CH NVR

1*USB Mouse

1*Power Supply 12V 3A ( EU/US/UK/AU Optional )

1*CD and user manual

Mobile Phone viewing :

Please download the APP ” VMEYE ” in App Store For IOS system ,in Google Market Or Play Store in Android System.

Shipment:

For most items , we can send out the goods within 2-7days , but some items are new arrivals, we need time to order from the factory.

That is just assured that the goods we sell are orignal genuine products. so pls be patient for the products.

Our servicer also will contact you to explain the delivery time.

Thanks in advance for your understanding.BTW,The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

Returns:

We would try our best to serve you, and we accept the reture for any reason within 2 weeks from the date of your receipt. So pls just make sure that the goods are in their original package and conditions.

If the items are lost or damaged on the way to us, the buyer needs be responsible for the loss.

The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.

The buyer would be responsible for the shipping freight to return the goods.

Feedback:

The clients’ satisfaction and positive feedback is very important to us. Please kindly leave positive feedback and 5 stars if you are satisfied with the goods and services.

If you have any problems with our items or services, please feel free to contact us firstly before you send negative feedback. We will do our best to solve any problems and provide you with the best customer experiences.

Packaging Details

• Unit Type: piece
• Package Weight: 2.000kg (4.41lb.)
• Package Size: 40cm x 30cm x 12cm (15.75in x 11.81in x 4.72in)
