Features:
1.H.264 High profile compression algorithm ideal for network NVR
2.Realtime live display up to 4/8 IPcameras
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission
5.Multiple control methods:IR remote controller,USB mouse and front panel press button
6.Smart video detection:motion detection,video blind,video loss
7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
8.Pan Tilt Zoom and Speed Dome Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,pattern,auxiliary function supported
9.Easy backup methods: USB devices,remote network and client software backup
10.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload
11.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
12.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK..
13.Enable strong multi-way synchronization with max 1 channel playback, realize the zero-delay between playback channels
14. Support Onvif
15. Support cloud (xmeye.net),no need to do router mapping, just 1 step go to internet with cloud technology
Specifications:
|
Model |
4CH |
8CH |
|
Main Processor |
HI3515A |
HI3520D |
|
Operating System |
Embedded LINUX |
|
|
System Resources |
Pentaplex function:live,recording,playback,backup & remote access |
|
|
Operation interface |
16-bit true color graphic menu operation interface, support mouse operation |
|
|
Preview |
1/4 |
|
|
Video Standards |
PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
|
|
Video Compression |
H.264 High profile |
|
|
quality supervision |
Monitor: D1; VGA: high definition; HDMI: hd |
|
|
Video Input(IP) |
4*1080P |
8*1080P/8*720P/16*D1 |
|
Video Recording |
1080P/960P/720P/960H/D1/HD1/CIF/QCIF |
|
|
Motion Detection |
Zones:396(22*18)detection zones, Multi-level sensitivity can be set (Local channels only) |
|
|
Audio Conpression |
G711A |
|
|
Bidrectional Talk |
N/A |
|
|
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
|
|
Playback |
1/4channel playback simultaneously |
|
|
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
|
Space Occupation |
Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel |
|
|
Video saved |
Local HDD,network |
|
|
Backup Mode |
Network download/Flash stick/USB/SATA |
|
|
Video Input(BNC) |
N/A |
|
|
Video Output |
1CH VGA output, 1CH HDMI |
|
|
Audio Input |
N/A |
|
|
Audio Output |
N/A |
|
|
Alarm Input |
N/A |
|
|
Relay Output |
N/A |
|
|
Net Interface |
RJ-45 10M/100M |
|
|
PTZ Control |
N/A |
|
|
3G/WIFI |
NO |
|
|
USB Interface |
2* USB2.0 port for mouse and backup |
|
|
Hard Disk |
1 SATA port(Max 1 x 3T) |
|
|
Power Supply |
12V/2A |
|
|
Dimension |
L220*W250*H40 |
|
|
ONVIF |
SUPPORT |
|

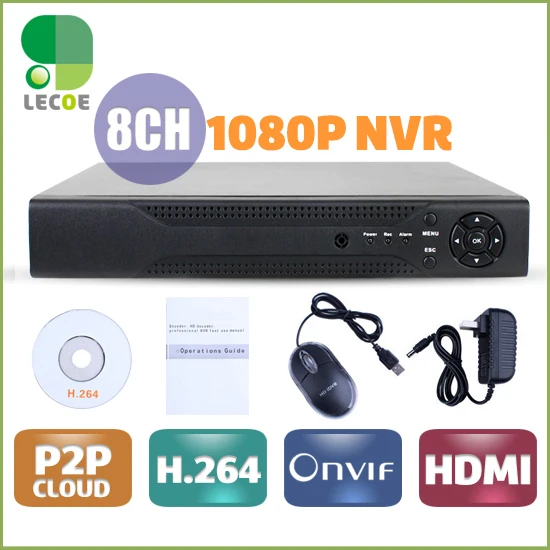

Package Included:
1 x 1080P NVR
1 X USB Mouse
1 X Power Adapter for NVR
How to find the Device Serial ID
\\
4) P2P on the Andriod or ISO phone APP
*install the app -xmeye on the Andriod
*for iPhone,please download the app -vmeye from app store
* find the the Device Serial ID from the CMS
How to use the P2P on your phone
