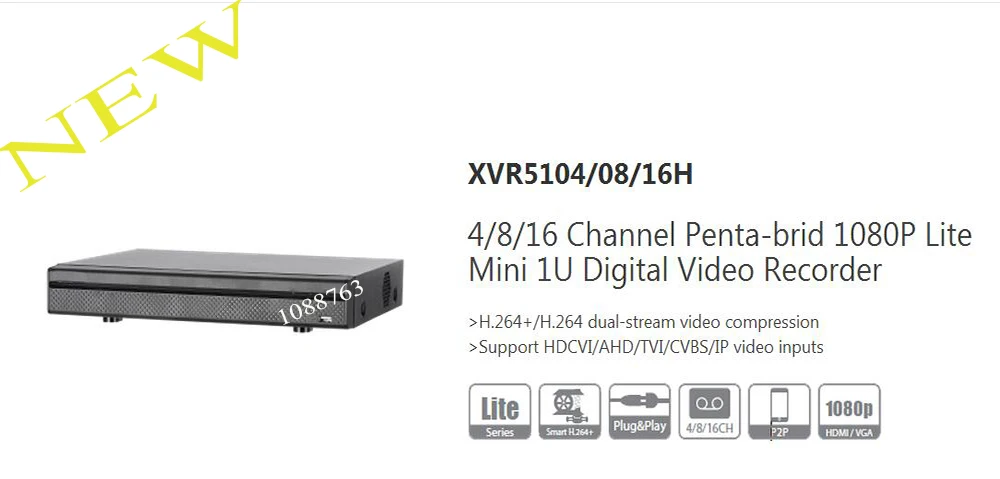

DAHUA 4/8/16 Channel Penta-brid 1080P Lite Mini 1U Digital Video Recorder Without Logo XVR5104H/XVR5108H/XVR5116H
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
Thank you for your visiting our store. Please read the below notes carefully before you confirm the order in order to avoid any inconvenience.
1.We are professional DAHUA products reseller who offers 100% original products manufactured by DAHUA, but we will only offer unbranded products(without DAHUA brand on the product) from 2015;
2.Please take note that our inventory is changing every day, so we cannot make sure what you order has stock. If you need the order urgently, please contact us before you pay. The production time for the models which we don’t have in stock will take 15- 25days normally. If you cannot wait, please don’t place order;
3.All DAHUA products are with English version only. If you need to buy any other model which is not displayed in our shop, please contact with us;
4.Retail and wholesale customers are both welcomed. If you want to place quantity order, please contact with us;
Thank you for your time! We are looking forward to your purchasing!
Features:
>H.264+/H.264 dual-stream video compression
>Support HDCVI/AHD/TVI/CVBS/IP video inputs
Specification:
|
Main Processor |
Embedded Processor |
|
Operating System |
Embedded LINUX |
|
Display |
|
|
Interface |
1 HDMI ,1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Multi-screen Display |
4CH: 1/4/6 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Video Detection and Alarm |
|
|
Trigger Events |
Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
|
Alarm input |
N/A |
|
Relay Output |
N/A |
|
Tracking Trigger Event |
N/A |
|
Playback and Backup |
|
|
Playback |
4CH: 1/4 8CH: 1/4/9 16CH: 1/4/9/16 |
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
Backup Mode |
USB Device/Network |
|
Storage |
|
|
Internal HDD |
1 SATA Port, up to 6TB capacity |
|
HDD Mode |
Single |
|
eSATA |
N/A |
|
Auxiliary Interface |
|
|
Front Cover |
N/A |
|
USB |
4/8CH:2 USB 2.0 16CH:1 USB 2.0 , 1 USB 3.0 |
|
RS232 |
N/A |
|
RS485 |
1 Port, for PTZ Control |
|
Third-party Support |
|
|
Third-party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
HDCVI Camera Input |
4/8/16 Channel |
|
IP Camera Input |
4+2/8+4/16+8 Channel, each channel up to 5MP |
|
Audio In/Out |
1/1 |
|
Two-way Talk |
Reuse audio in/Out, RCA |
|
Recording |
|
|
Compression |
H.264+/H.264 |
|
Resolution |
1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
|
Record Rate |
Main stream: 1080P(1~15fps) 720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram:D1/CIF/QCIF(1~25/30fps) |
|
Bit Rate |
1Kbps ~ 6144Kbps Per Channel |
|
Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|
Network |
|
|
Interface |
4/8CH: 1 RJ-45 Port (100M) 16CH: 1 RJ-45 Port (1000M) |
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF 2.4.1, CGI Conformant |
|
Electrical |
|
|
Power Supply |
DC12V/2A, (DC12V/3A for 16ch) |
|
Power Consumption |
<10W (Without HDD) |
|
Environmental |
|
|
Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|
Storage Conditions |
0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH |
|
Construction |
|
|
Dimensions |
Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″) |
|
Net Weight |
1.5kg (3.3 lb) (without HDD) |
|
Gross Weight |
2kg (4.4lb) |
|
Installation |
Desktop installation |
|
Certifications |
|
|
Certifications |
FCC: Coming soon |
|
UL: Coming soon |
|
