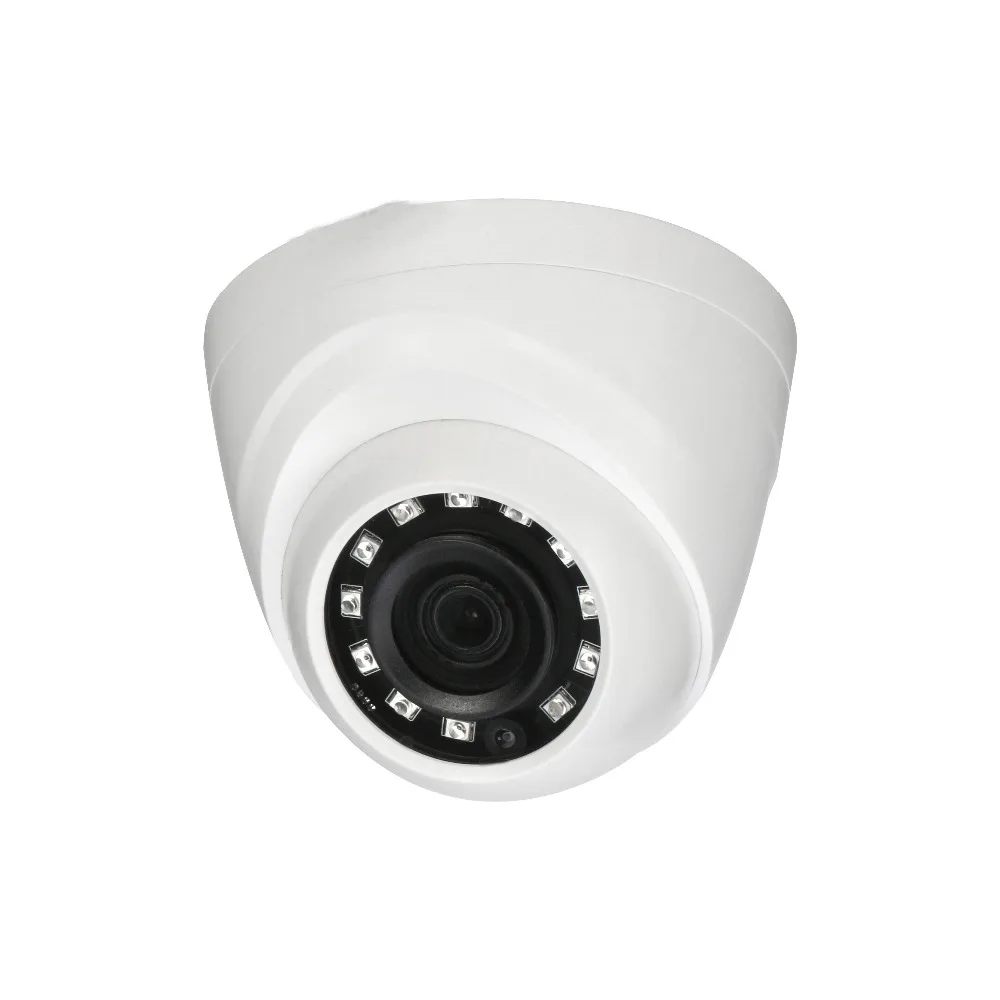

DAHUA HDCVI DOME Camera 1/2.9″ 1MP CMOS 720P IR 20M indoor HAC-HDW1000R cctv security camera coaxial camera

DAHUA HDCVI DOME Camera 1 2 9 1MP CMOS 720P IR 20M indoor HAC HDW1000R font
Click to see details
HDCVI DOME Camera 1 2 9 1MP CMOS 720P IR 20M indoor HAC HDW1000R cctv security
80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $20.32 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

> Max 30fps@720P
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 20m, Smart IR
> DC12V

Camera

Image Sensor

1/4″ CMOS

Effective Pixels

1280(H)×720(V), 1MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.05Lux/F2.0, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 20m (66feet)

IR On/Off Control

Auto / Manual

IR LEDs

12

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm Optional)

Max Aperture

F2.0

Angle of View

H: 60° (83.4°)

Focus Control

N/A

Close Focus Distance

600mm (500mm)

23.6 (19.69)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

720P (1280×720)

Frame Rate

25/30fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

12V DC ±25%

Power Consumption

Max 2.8W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection &Vandal Resistance

NA

Construction

Casing

Plastic

Dimensions

Φ85.4mm×69.1mm(Φ3.36″×2.72″)

Net Weight

0.11kg (0.24lb)

Gross Weight

0.17kg (0.37lb)
