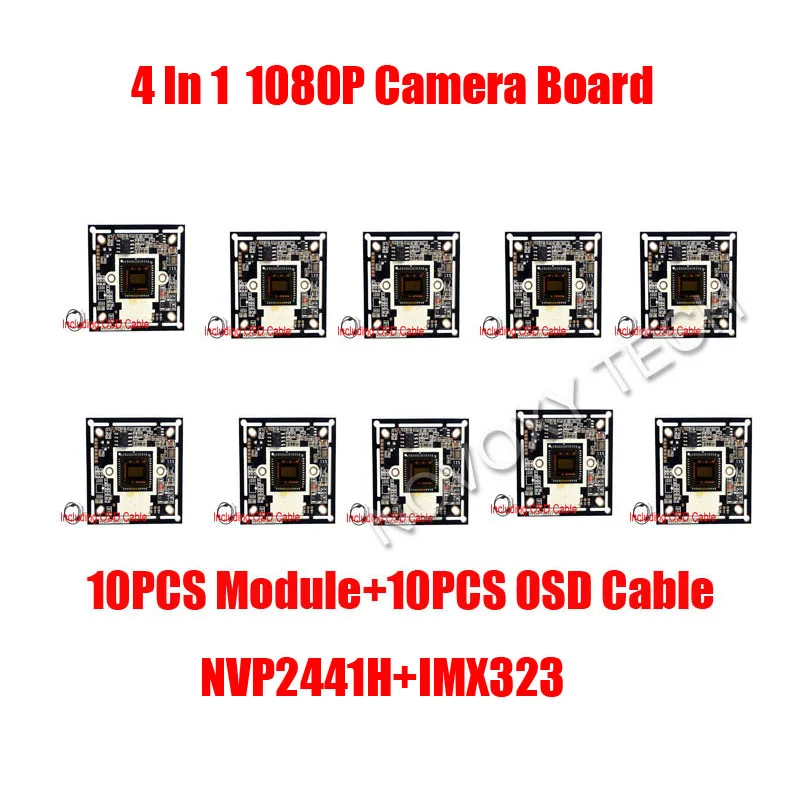

DIY 4 IN 1 AHD TVI CVI CVBS 10PCS/LOT 2MP 1080P IMX323 CMOS+2441H DSP CCTV PCB Board With OSD Cable Camera Module Free Shipping

DIY 4 IN 1 AHD TVI CVI CVBS 10PCS/LOT 2MP 1080P IMX323 CMOS+2441H DSP CCTV PCB Board With OSD Cable Camera Module Free Shipping

Remarks – Signal switch:

1. Push OSD button and hold on NTSC/PAL switch.

2. Push OSD button right and hold on: AHD signal.

3. Push OSD button left and hold on: Analog signal.

4. Push OSD button up and hold on: CVI signal.

5. Push OSD button down and hold on: TVI signal.

Specifications:

*Image sensor: 1/3″ IMX323 2mp CMOS
*Pixels: 1920 * 1080
*System: PAL / NTSC ( OSD switch)
*Day and night mode: external control (default) / Auto / Color / B & W (OSD switch)
*Horizontal resolution: 1920H (2MP)
*SNR: ≥69dB
*Minimum illumination: 0.01LUX
*Backlight compensation (BLC): AUTO
*Auto Electronic Shutter (AES): AUTO / 1/50 (1/60) -1 / 100,000sec
*Auto White Balance (AWB): AUTO
*IR control input voltage: DC 3V-8V
*Video output: AHD VIDEO (960P)
*Video space: 1min≈27MB
*Working voltage: DC12V / 63mA ± 5mA
*Working environment: -20 °C — 50 °C
*OSD language: English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese
Dutch / Turkish / Japanese / Hebrew / Arabic

Package Content:

10x 1080P PCB camera module

10x OSD Cable
