DIYSECUR 433MHz Wireless&Wired GSM Home Alarm System, Touch Panel, Flash Sensor, SMS Alerts, Smoke Sensor

DIYSECUR 433MHz Wireless Wired GSM Home font b Alarm b font System Touch Panel Flash Sensor
Click to see details
DIYSECUR 433MHz Wireless Wired GSM Home Alarm System Touch Panel Flash Sensor SMS Alerts Smoke Sensor
80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $158.68 / piece
Sale price:  US $136.46 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

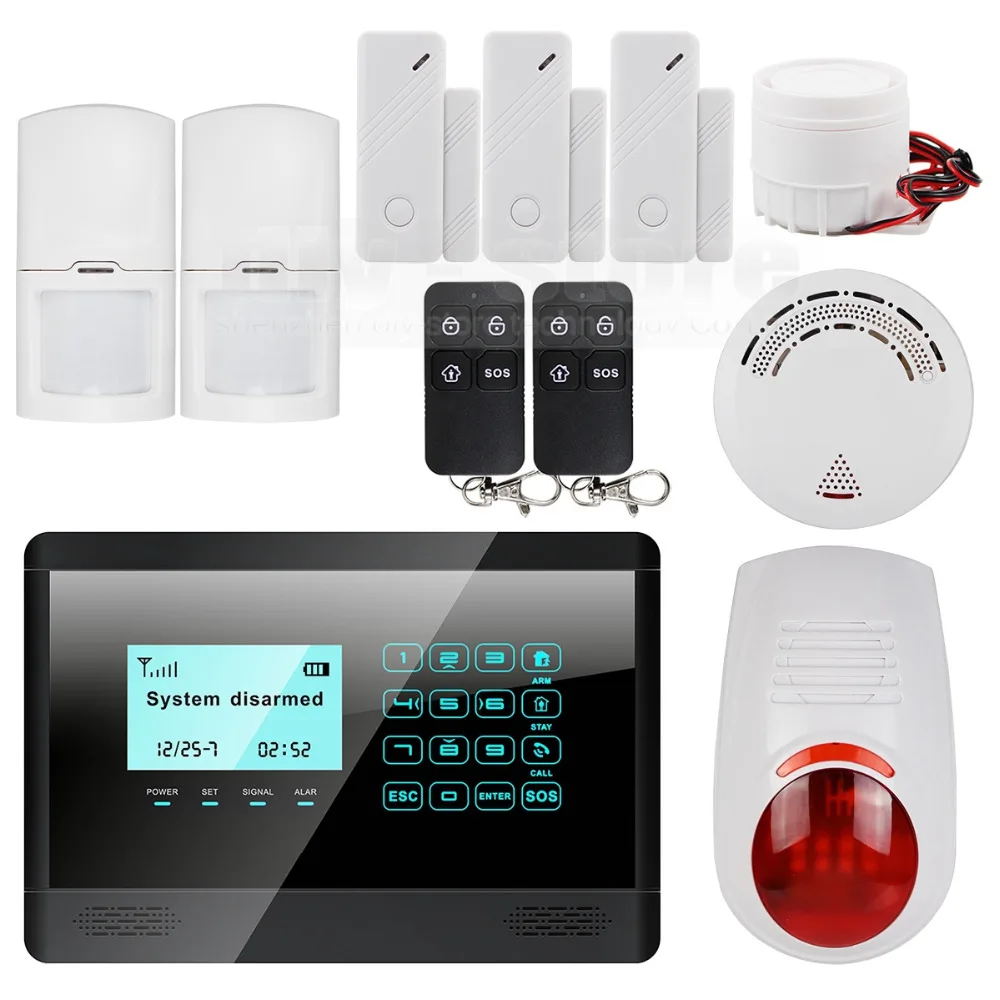

LCD Wireless/ Wired GSM Autodial Home Office Security Alarm System

Touch Keypad Alarm Panel+ PIR Motion Sensor + Remote Control+ Siren +
+ Wireless Door/Window Sensor+ Power Supply

Main Features

2017 Home Security Solution

You can arm the alarm panel via phone, SMS, remote control or the arm button of alarm panel. If you frequently travel or want to make certain that your home is secure while you are away, this system is an ideal choose for you.

All For Home(Office) Security

The alarm panel will send SMS and auto dial to the preset phone number when any sensor(door sensor, PIR sensor…) is triggered, once dialed, the recipient can then listen in and even broadcast their voice over the control unit to scare away the intruder, and the siren will sound on the spot at the same time. All of these things will make it very hard for anyone to get into your home or business and help you keep enjoy all the comforts of your family.

Alarm Triggered

The alarm system will be triggered by door sensor, PIR motion sensor, emergency SOS alarm and other detectors. If thief want to break your door/window to get in your house, the door sensor and pir motion sensor will trigger the alarm base unit to alarm.

Taking Action

When the alarm is triggered at your home, the siren will immediately sound to alert the thief, the alarm base unit will call your preset alarm phone number and also send SMS to tell you which detector is triggered, they you can have time to take further action to make sure your home/office is security.

Preset 10 Seconds Voice Recording

You can set the preset number to police station, and also record some voice(less than 10 seconds) into the system, then when alarm panel call the police station number, policeman will hear your voice which you have stored into the system.

Two-Way SOS talking

This alarm system with the advanced technology of Two-Way SOS talking. It is the combination of powerful home security alarm system and SOS Emergency Call function. Press SOS key, the alarm panel will auto dial the preset SOS number(you can set the SOS number of family member/local hospital). When call gets through, speaker is default on, then user can talk with his family/ Hospital staff directly. It gives seniors and their caregivers the freedom of independence as well as peace of mind. It is ideal for homes with baby or elderly inhabitants, as the remote for the alarm comes with a panic button that may also be used as a caretaker emergency notification system.

Main Functions

  • Elegant and advanced touch keypad for easy operation;
  • 128×64 lattice LCD screen with clock display;
  • 4 wired and 10 wireless defense zones; each wireless zone supports maximum 10 sensors;
  • Support maximum 8 remote controls;
  • One relay switch: it will be connected when alarming;
  • Built-in high-volume speaker, and artificial intelligent digital voice announcer;
  • Built-in artificial intelligent English message;
  • 10-second automatic voice message recording;
  • Can preset 6 phone numbers: when alarming, system will make audio call to these numbers automatically;
  • Can preset 3 SMS numbers: when alarming, system will send SMS;
  • Timely arm and disarm;
  • Can be used as a wireless telephone by using keypad to make calls;
  • One-key-control: away arm, home arm, arm by remote controller or telephone;
  • SOS, fire, gas, door, hall, window, balcony, and boundary places alarm;
  • Real-time, delay, 24 hours,bypass defense zones programming function;
  • Wireless learning code: easy to add additional wireless accessories;
  • Remote control the device to arm, disarm, monitor, and intercom by phone;
  • Record checking: the device can store30 alarm records;
  • Different arm status: away arm, home arm, delay arm and timely arm;
  • Arm by different ways: panel keypad, remote controller, remote call;
  • Alarm call has the priority: even when the number of the device is busy;
  • SMS alert for power failure or recovery;
  • Built-in LI battery: automatically recharge.

More Details


Installation Guide

If you need, you can also contact the police, fire department, hospital or other emergency personnel to come to your home immediately. You can contact child/older to confirm whether they are okay or in need of asistance.


GSM Alarm Base Unit
Input Voltage DC 12V 1.2A
Standby Current < 55mA
Alarming Current < 450mA
Wireless Frequency 433MHz
GSM Frequency 850 / 900 / 1800 / 1900MHz
Wireless Sensors 100 wireless sensors
ired Sensor 4 Wired sensors zone
Back-up Battery Last 4 hours when power cut off
Siren Support one wired siren and more wireless flash sirens
Wireless Door/Window Sensor (Gap Detector. There is a SOS button on door sensor)
Power Supply 3V Battery
Static Current 20 mA
Transmission Current 15mA
Transmission Frequency 433MHZ 0.5MHZ
Transmission Distance About 30m with one barrier
Internal Distance 15 mm
Working Condition Temperature -10 degrees ~ + 40 degrees
Humidity 90% rh
Battery Life Time About 12 months
Wireless P.I.R Motion Detector
Power Supply 4x AAA battery
Transmission Current 20mA
Static Current 10mA
Wireless Frequency 433MHZ 0.5MHZ
Transmission Distance About 30m with one barrier
Detective Speed 0.3 – 3m/s
Detective Distance 5 – 12m
Detective Range Horizontal 110, Vertical 60
Working Condition Temperature -10 degrees ~ + 40 degrees
Humidity 90 rh
Battery Life Time About 12 months
Remote Control (Keyfobs)
Static Current 0
Emission Current 15 mA
Transmission Frequency 433MHZ 0.5MHZ
Emission Speed T1 second
Emission Distance About 30 meters
Working Condition Temperature -10 degrees ~ + 40 degrees
Humidity 90 rh
Battery Life Time About 12 months

We also have other Wireless & Wired accessories to meet your need of beefing up your alarm system. If you need them, please feel free to contact us.
