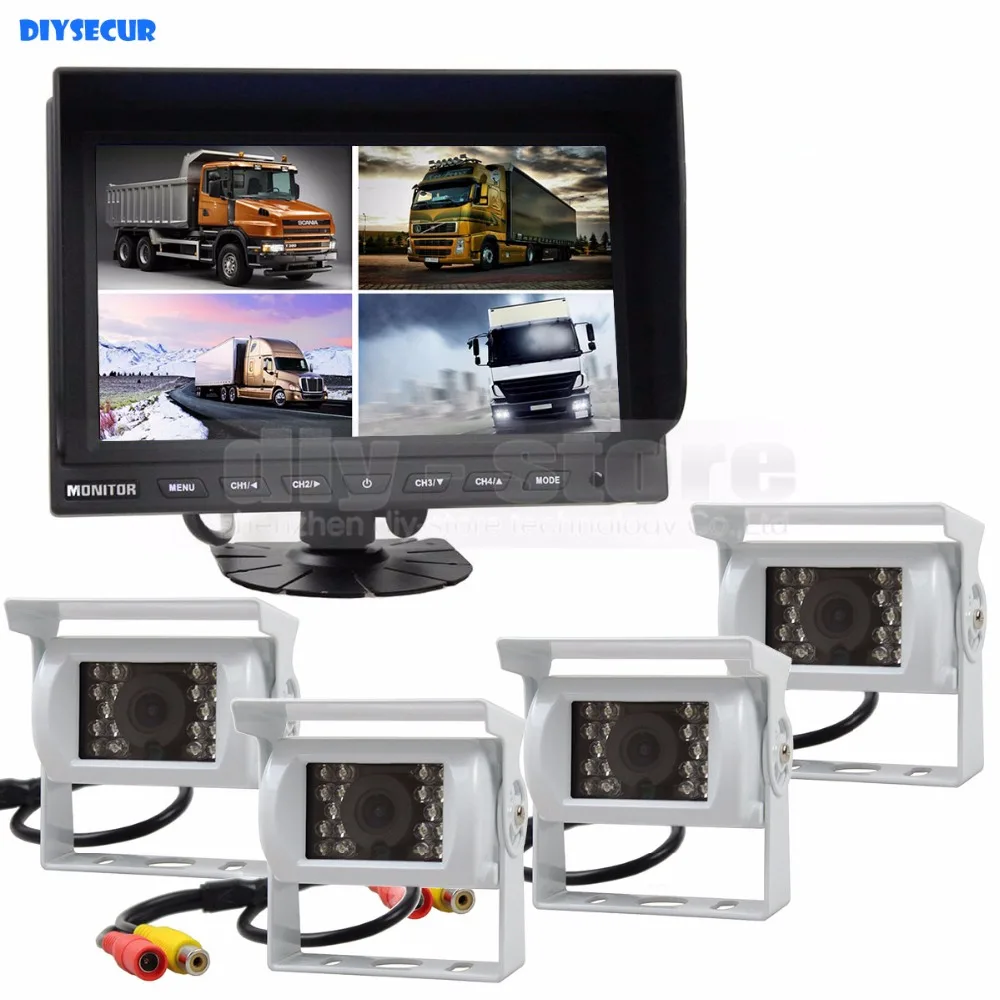

DIYSECUR 9 Inch Split Quad Display Rear View Monitor + White 4 x CCD Camera for Car Truck Bus Video Surveillance System
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
4 CH 9″ Monitor Truck Tractor Reversing Security SYSTEM
4x Rear View Camera Kit
Video Surveillance System !!
This 9 inch monitor widely used in automobiles, buses, container trucks, commercial vehicles, trucks, construction vehicles, fire trucks, ships and other means of transport.
Up to four cameras can be connected to the signal, widely used in various vehicles. Suitable for cold supply voltage instability, strong anti-interference, built-in thermal-current protection.
One screen can be split into two or four screen presentation, per screen can display various video.
- Stand security monitor
- 16:9 wide screen
- Power supply:DC12V-24V compatible
- PAL / NTSC auto-switching
- Sunshade design around
- Remote control, OSD menu
Suit for back view / side cameras
Single View / Split / Quad Image View Selectable
There are 11 different modes to display images, suit for your needs.
The CCD image sensor outputs digital signals with better picture clarity, color contrasting and sharpness than CMOS camera. Its 18 individual Infrared (IR) LEDs enable clear images in low light condition especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof. It can last for a longer time without heating up, providing rearview at all time.
- Latest style camera with aluminium shell, shorkproof: 10G
- 18 infrared lamp used in low light condition
- You can easily adjust the angle of Multi-level adjust
- 120 degree angle lens, 100% complete waterproof
- Top quality camera. Easy and safe to mount
The difference between CCD and CMOS camera:
- CCD camera has sharper picture. It sharpens the focus of picture making it real as possible.
- CCD lens makes clear night vision even in a low light environment.
Note: we will send 4 mirror image cameras as default, if you need non-mirror image please feel free to contact us.
Specifications:
Monitor:
- Display size: 9 inch
- Resolution: 800(W) x R.G.B x 480(H)
- System: PAL / NTSC
- Power supply: DC12V-24V
- Consumption: 7.5W
- Video: 4-channel video input
- Net wight: 930g
- Dimensions: 23.5*170*2.6 cm with the stand
23.5*15.7*2.6 cm without the stand
Camera:
- Image Type: 1/4” High Performance Color CCD
- Horizontal Resolution:420TV Lines
- PAL:720(H)*586(V) ,NTSC:720(H)*480(V)
- Usable Illumination : 0Lux ( Built in 18pcs IR LED’s for Picture Support in the Dark )
- Free viewing angle: 120
- Waterproof: IP66
- Shockproof: 10G
- Video Output:1.0Vp-p75Ω
- Power supply:DC12V-24V
What’s in:
