DIYSECUR Android/IOS App Wireless GSM Autodial Home Office Burglar Intruder Alarm System

APP Controlled Wireless &Wired GSM Home Security Alarm System

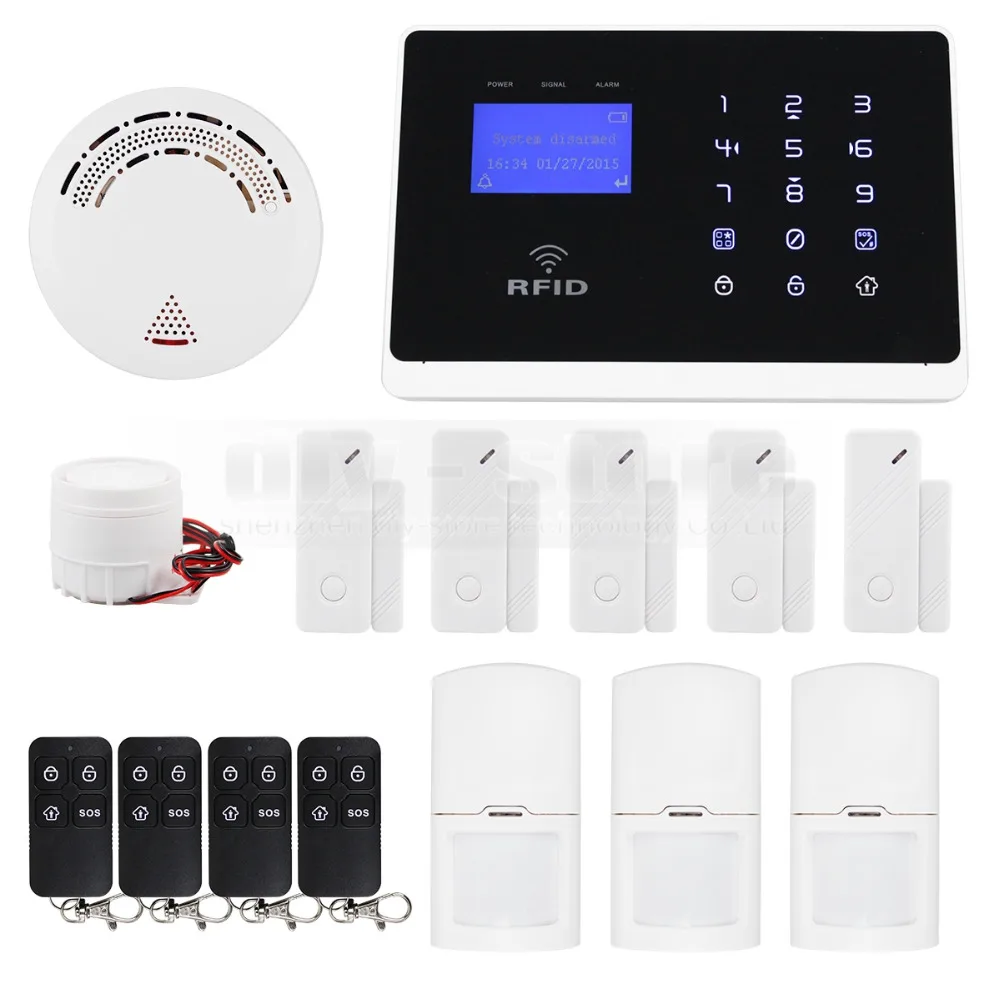

Touch Keypad Alarm Base Unit + 3 PIR Motion Sensor + 5 Wireless Door/Window Sensor
+ Smoke Sensor + 4 Remote Controls + 2 RFID cards+ Power Supply

850/900/1800/1900MHz

Upgrade your expectations

A burglar can easily disable some of the simpler, less expensive detection devices. The more complex and unfamiliar devices, the more likely the burglar is to trigger the alarm or give up trying to disable it. But getting all the high-end security gadgets will cost you a lot and it may be very hard for you to use. Below you will find some advanced features from our new alarm system

Manage your alarm system from anywhere

You can arm the alarm panel via phone (SMS, Call), Android app/iPhone app, remote control, RFID card or the arm button of alarm base unit. If you frequently travel or want to make certain that your home is secure while you are away, this system is an ideal choose for you.

Alarm Triggered

The alarm system will be triggered by door sensor, PIR motion sensor, emergency SOS alarm and other detectors. If thief want to break your door/window to get in your house, the door sensor and pir motion sensor will trigger the alarm base unit to alarm.

Taking Action

When the alarm is triggered at your home, the siren will immediately sound to alert the thief, the alarm base unit will call your preset alarm phone number and also send SMS to tell you which detector is triggered, they you can have time to take further action to make sure your home/office is security.

Two-way SOS Talking

If you need, you can also contact the police, fire department, hospital or other emergency personnel to come to your home immediately. You can contact child/older to confirm whether they are okay or in need of asistance, and if the older need emergency help, they can trigger the alarm system to let you know they need your help.

Main Functions

• Android APP and iPhone APP for easy control, enjoy the security
• Four Bands: 850/900/1800/1900MHz, for worldwide usage
• Elegant touch keypad Design, Built-in RFID reader, can use 125KHz RFID card to arm/disarm the alarm base unit
• Friendly humanized menu and voice prompt for easy operation, all information will be displayed on LCD screen, you can operate it like mobile phone
• 10 Wireless defense zones: Each defense zone can be coded 10 wireless sensor, so totally can be coded 100 wireless sensors
• 2 Wired defense zones: Can be totally connected 2 different defense zone’s wired sensors.(Each defense zones can connect N pcs wired senssors by using Series Connection
• No need to plug into a phone line: Simply insert a SIM card into the Wireless GSM Control Host
• Tamper alarm function:there is a button at the back side of the panel, it will make alarm once the button is loosen
• Blue LCD screen with time clock and alarm status display
• 3 Groups of timely Arm and Disarm: You can timely Arm and Disarm the system even you are not at home
• Can store 6 phone numbers: when alarming, system will make alarm call to these numbers three times automatically
• Dial on the keypad directly to make a phone call just like the cellphone
• Remote control the alarm system Arming, Disarming, Monitoring and Intercom by your cellphone(SMS, Call, APP)
• 10-second automatic message recording: After you connnecting the GSM SIM card, you can record 10-second message
• SOS, fire, gas, door, hall, window, balcony, and boundary places alarm
• Real-time, delay, 24 hours, bypass defense zones programming function
• Wireless coding: easy to add additional wireless accessories
• SMS confirmed when you Arm/Disarm the alarm system through Text
• SMS alert for power failure or recovery
• Built-in Backup rechargeable battery: Still can last for 5 hours and Send SMS to remind you when power off
• Built-in MIC and Loudspeaker, easy for you monitor or intercom with the spot. (NOT built-in siren)
• There is GSM signal bar on the LCD screen: easy to check the GSM signal strength
• Can be used as GSM alarm system(with compatible GSM sim card) or Spot alarm system. (Without sim card
• The Main Host can connect more than one wireless flash sirens A6 and one wired siren at the same time.

Application

Installation Guide

If you need, you can also contact the police, fire department, hospital or other emergency personnel to come to your home immediately. You can contact child/older to confirm whether they are okay or in need of asistance.

Specifications

We also have other Wireless & Wired accessories to meet your need of beefing up your alarm system. If you need them, please feel free to contact us.

Packing list:
