DIYSECUR Wireless GSM SMS Intercom / Monitor Security Home Alarm System LCD Screen Two-Way SOS Talking Alarm + Password Keypad

Wireless/Wired Defense Zones GSM SMS Intruder Security Alarm System Auto-dial for House Office

850/900/1800/1900MHz

Description:

• LCD Screen wireless GSM home alarm system with auto-phone dialler and Listen-in function.
• Wireless transmission frequency for all our wireless alarm systems is 433MHz.
• Supports 4 Bands GSM 850/900/1800/1900MHz (don’t use 3G sim card), worldwide usage.
• Sends SMS message when system Arm/Disarm: let you know the system status easily.
• Control panel has built-in backup battery: can last 4 hours when power cut off.
• Built-in Loudspeaker and Micro-phone in control panel: Voice prompt for all settings so that you can set easily.
• 99 Wireless Defense Zones: Each defense zone can support 1 wireless sensor (totally 99 pcs).
• 6 wired defense zones: support Max. 6 different wired sensors (using different Alert message)
• Can dial out via the keypad directly just like the cellphone.
• Sends SMS when power charge On/Off
• Supports Out Arm, Partial Arm(Home Arm), entry delay(Alarm), exit delay(Arm).
• Records 10 seconds alarm voice message.
• Alarm history records can be checked.
• Can store 6 phone numbers for alarm calling.
• Can store 3 SMS text message phone number for alarming.

Function of the Basic Kit:

Control Panel: control center of the alarm system. When alarm happening (triggered by the sensors). It can autodial or send SMS to the prestored phone numbers, and the siren will sound loudl at the spot.

Remote Control: One key control the alarm panel Arm/Disarm/Home Arm/Emergency alarm. The control distance can range to 30 meters

PIR Motion Sensor: normal PIR which hasn’t pet-immune function. It belongs to the Passive IR sensor. When someone enter into its detecting area, it will emit the signal to the control panel. Its detecting area is Horizonetal 110 degree, Vertical 60 degree, and semidiameter is 5~10m

Door Sensor: combined with the chipset and magnetic stripe. When the magnetic stripe far away form the chipset more than 15mm, it will emit a signal to the alarm panel

Wired little siren: when alarm happening, the default siren will sound but NOT flash. The sound volume can reach to 110dB. (If you need the flash and strobe siren, please feel free to contact us)

Installation Guide

If you need, you can also contact the police, fire department, hospital or other emergency personnel to come to your home immediately. You can contact child/older to confirm whether they are okay or in need of asistance.

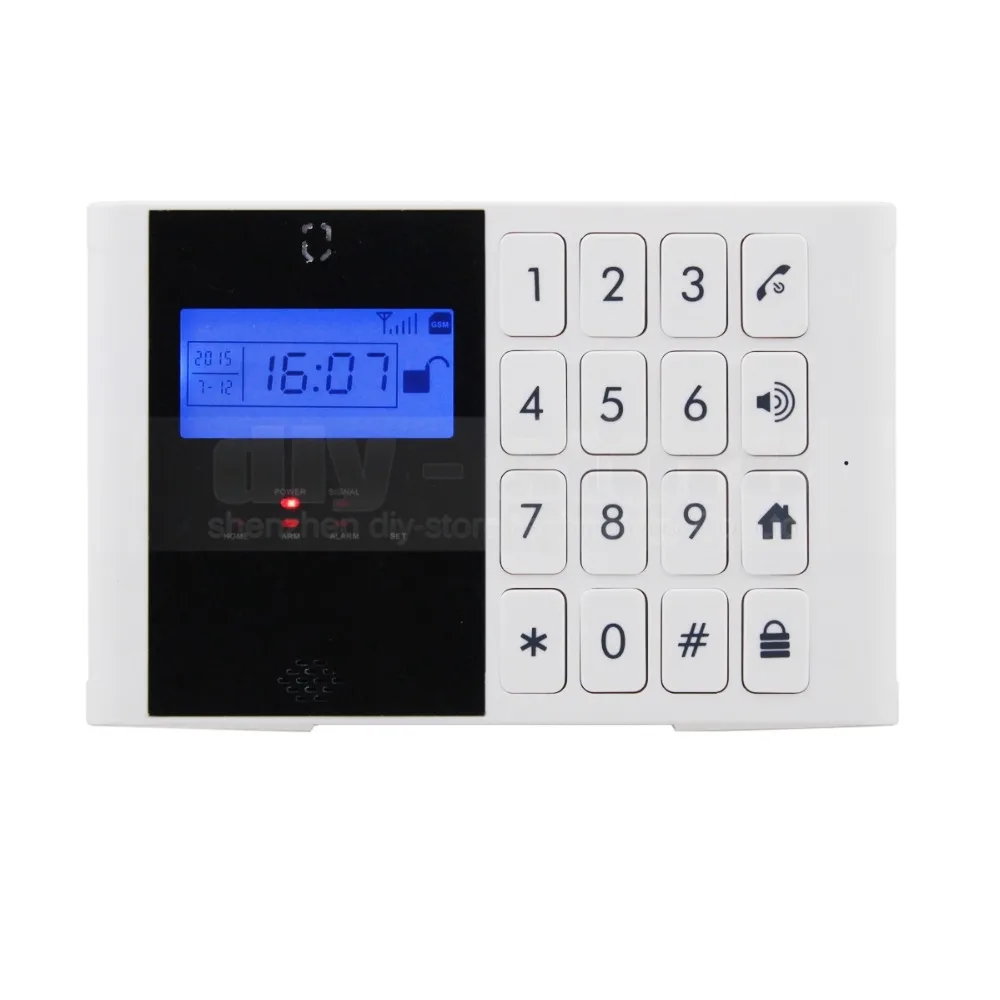

GSM Control Panel:

Input Votage: DV12V/1A

Standby Curent: <55mA

Alarming Current: <450mA

Wireless Frequency: 433MHz

Network: GSM

GSM Frequency: 850/900/1800/1900MHz

Wireless Sensor: support Max. 99 wireless sensors

Remote Controllers: support Max. 8 wireless remotes

Wired Sensor: support Max. 6 wired sensors.

Backup Battery: last 4 hours when power cut off

Siren: default one wired little siren in the package.

Wireless Gap Detector ( Door / window Sensor) :

Power Supply: 3V Battery

Static Current: < 55mA

Transmission Current: < 15mA

Transmission Frequency: 433MHz

Transmission Distance: About 30m with one barrier

Internal Distance: 15 mm

Working Condition: Temperature -10 degrees to +40 degrees

Humidity: <90%rh

Battery life time: About 12 months

Wireless P.I.R Motion Detector :

Power Supply: 4 x AAA battery

Transmission Current: <20mA

Static Current: <10mA

Wireless Frequency: 433MHz

Transmission Distance: About 30m with one barrier

Detective Speed: 0.3 – 3m/s

Detective Distance: 5 -12m

Detective Range: Horizontal 110 degree, Vertical 60 degree

Battery Life Time: About 12 months

Humidity: <90 rh

Remote Controller :

Power Supply: 12V Battery

Static Current: 0

Emission Current: < 15mA

Transmission Frequency: 433MHz

Emission Speed: < 1 second

Emission Distance: About 30meters

Battery Life time: About 6 months
