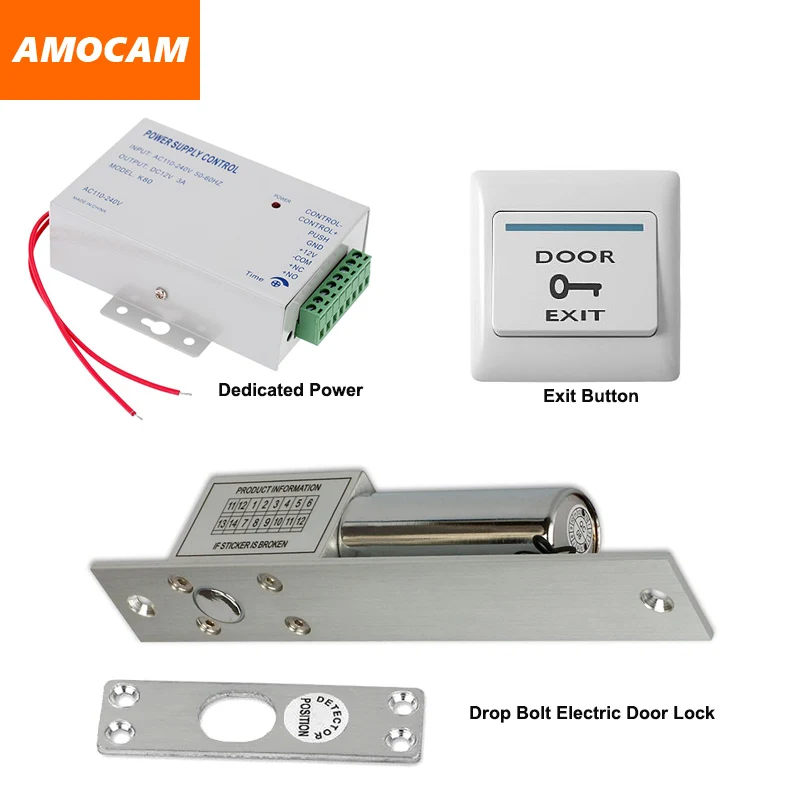

Electric Drop Bolt Door lock + Power Supply box for Door Access Control System Video doorbell +Door Exit Button Switch

Welcome to our store choose more products:

USD 99.88/pieceUSD 302.80/pieceUSD 179.99/pieceUSD 196.88/pieceUSD 69.88/pieceUSD 58.99/pieceUSD 59.99/pieceUSD 59.99/piece

Drop Bolt Electric Door Lock

This door lock is special in design with durable material. It can protect your home or business shops. Low operational and standby current. It’s especially suitable for glass doors. Great choice for you.

Features:
Secure mode: The door will lock while supplied with power, and unlock without power.
Especially suitable for glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.

Specifications:

• Color: Silver
• Material: Aluminium Alloy
• Working Voltage: DC 12V
• Working Current:
• Ordinary Mode:
• Start State: 450mA
• Persistent State: 450mA
• Low Temp Mode:
• Start State: 750mA
• Persistent State: 180mA
• Safety Type: Power-down unlocking
• Lock Size: 20 * 3.4 * 4.2cm / 8 * 1.34 * 1.65in (L * W * H)
• Lock Weight: 425g / 15oz

AC 110-240V Dedicated Power box

• This power supply is small, easy to install and easy to use: the voltage range from 100V-240V to normal use, suitable for all countries of the world.
• Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.
• Set NC / NO outputs, can control various types of electric locks.
• Based delay control circuit, lock time can be in 0-15 seconds.
• The circuit board has remote control port.

Specification:

• Material: Metal
• Color: Green/White
• Input Voltage: AC 110 ~ 240V (Worldwide voltage)
• Input Frequency: 50 ~ 60Hz
• Output Voltage: DC 12V/3A
• Output Voltage Trim Range: 10% ~ 15%
• Operating Temperature: -20°C~ 65°C
• Load: 1% Typical
• Insulation Resistance: ≥50MΩ
• Adjustable Locking Delay: 0 ~ 15sec
• Remote Door Distance: 50~100 m
• Dimensions: 103*68*33 mm

White Electronic Door Exit Push Strike Button Panel

• Main Material: Hard Plastic
• Color: White
• Plate Size: 90mm x 90mm x 25mm(L* W *H )
• Voltage: ~250V
• Packege Content: 1 x Push Button Strike Panel,2 x Mounting Screws Electronic Door Exit Push Strike Button Panel
• It is widely used in doors,exits,gates and automatic control;
• Easy to install and use;
• Net Weight: 60g

***Power supply box application Connect diagram

Package Included:

• 1 x Drop Bolt Electric Door Lock
• 1 x Power Supply box
• 1 x Exit Button Switch
• 1 x bag screws and hardware
• 1 x User manual
