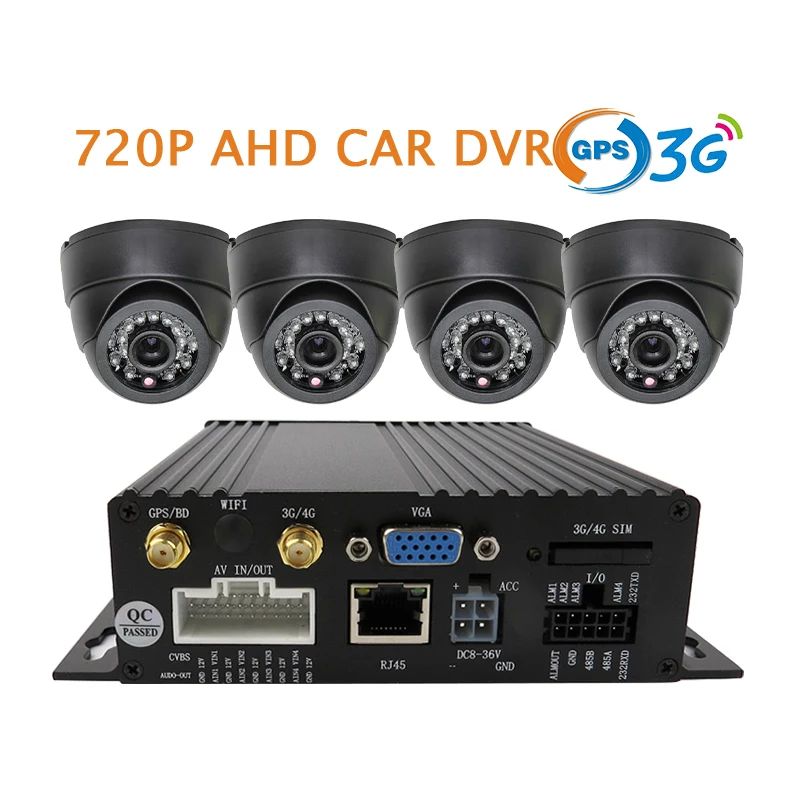

4 Channel AHD Vehicle Digital Video Recorder
Supports Up To 128GB per SD Card, Dual SD Card
Built-in GPS, 3G Module , 720P 4CH AHD
Main Features
Car DVR
- H.264 video compression.
- 4CH 720P HD AHD MDVR, It works with all AHD cameras, More Clearer.
- 4 Channel 720P AHD real-time recording (720P/D1/HD1/CIF for selection)
- Support video searching function so that we can easily get files of a certain period.
- Support realtime playback, as well as review the video on computer
- Support remote control and mouse operation.
- Equipped with high-speed video recording at 30fps per channel.
- Recording video can be overlaid with date/ time, plate number etc..
- Optional file packing time to meet your real requirement.
- Support wide range of voltage input from 12V to 36V.
- Support real time monitor from phone and PC.
- Support 3G remote monitor, (WCDMA, CDMA2000, TD-SCDMA)
- Output 12VDC 3A for external devices.
- Support 2 SD card, and (128G*2)
- Support auto recordng , manually recording , alarm recording , fire off recording.
- Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours)
- Support 4CH alarming inputs and 1CH independent alarm output (open/close door, brake, back up, motion detection etc).
- Support upgrad via SD card or USD slot.
- Support OSD menu.
- Video playback, speed and GPS track playback.
- Built in GPS Module, Record GPS track and speed.
- Four channel 4pin connector video and audio input, one channel AV connector video and audio output.
- SD card design for storage, more convenient and vibration-proof than hard disk version.
Car Camera
- 120 degree angle lens, ensure car rear side for effective reversing and parking operation.
- Top quality camera. Easy and safe to mount.
- 4 Pin connectors for easy installation.
- 18 infrared LED for night vision
- AHD 720P camera
- high resolution, with infrared illumination at night.
Details
Software
Specification
Project | Specification | Feature |
System | Lanuage | Chinese/English |
Operate System | OSD menu | |
Video | Video Input | 4 Channel Video Input ,1.0Vp-p,75 |
Video Output | 1 Channel RCA Video Output ,1.0Vp-p,75 | |
Video Display | 1,4 channel display | |
Compression | H.264 Main profile | |
Video System | NTSC, PAL | |
Audio | Audio Input | 4 Channel Audio Input |
Audio Output | 1 Channel RCA Audio Output | |
Record | sound and video synchronized recording | |
Video resolution | 720P/D1/HD1/CIF /Optional | |
Expansion Interface | Storage | Support SD Card up to 128G, support 2 SD cardsupport update via SD card and wireless network |
Alarm Input | 4-level input<4V Low level alarm, >4V high level alarm | |
Alarm output | 2-level output, 5V and 12V output | |
Serial interface | 1 RS232 & 2 RS485 | |
3G | 3G | WCDMA, CDMA2000, TD-SCDMA, support phone and PC remote view |
Software | PC playback | analyze the car information when the video playback on PC |
I/O | 0-4V | Low voltage alarm |
>4V | High voltage alarm | |
Key singal | >5V | key on |
<4V | key off | |
Power | Power input | DC12V ~ 36V |
Power Output | DC12V 3A | |
Power consumption | about 20W | |
Common | Size | 147x147x41mm |
Weight | 1.2kg | |
Operating Temperature | -25 degree~ +65 degree |
