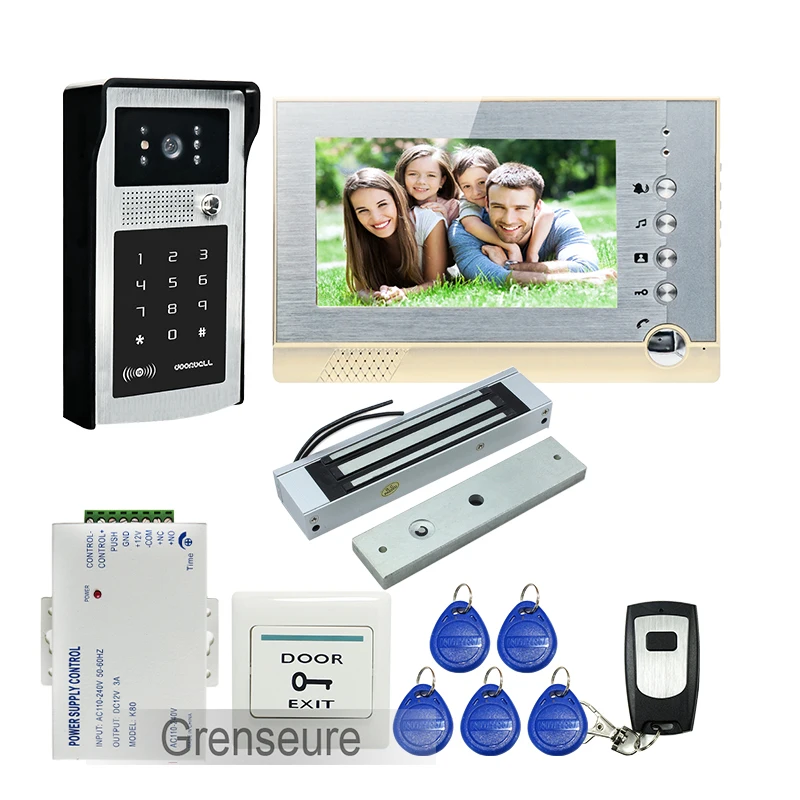

FREE SHIPPING Wire 7″ LCD Screen Record Video Door Phone Intercom System + Outdoor RFID Code Keypad Password Camera + EM lock

USD 98.98/pieceUSD 121.98/pieceUSD 123.98/pieceUSD 209.98/piece

New Arrival 7″ Wired Video Door Phone Intercom System With Recording Function

700 TVL Color Camera, Clearer Video! Supports Video Recording, Photo Taking Unlock Via Password, Remote control, ID keyfobs and screen!

The item you are watching is our new arrival video door phone system with recording function, it will record video automatically when someone press ring the bell. This allows you can see who visited your house when you are not at home or when you missed the call, if the visitors leave a message via the outdoor unit, you can also get more information via the video when you come back.
The monitor is equipped with 7″ high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design. There is an important function compared to old version, this kit supports video recording, it can record a video automatically and it has a micro SD card slot supports Max. 32GB SD card. It is a good choice for your home security and intercom.

This new released outdoor unit has a code keypad, it supports to unlock via password or RFID card, very convenient to unlock. Besides, it is fully waterproof, supports outdoor working. with 6 LED for night vision.

Features

• 7″ TFT digital color LCD;
• 16 melodies for ringing selection;
• Show outdoor image manually.
• Dual-way intercom;
• Supports communication between two indoor monitors.
• Monitor unlock control;
• Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
• TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
• Hands-free intercommunication.
• Brightness, chroma and volume adjustable
• Video Recording and Photo Taking Function
• Support Max. 32GB SD card
• Comes with 10 RFID keyfobs, a push release button switch.
• Support maximum 500 rfid keyfobs
• Supports one password, you can unlock via code or RFID card
• Fully waterpoof, support outdoor working.
• With micro-processing technology, auto-remote control, excellent performance and high Reliability.
• This system supports 4(optional) and 4 outdoor cameras at most.(It needs a controller when install 2/3/4 outdoor cameras, please contact us if you want to install 2/3/4 cameras)

Details

It is a door phone which can show you what is going on outside doors on a clearly 7″ full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.

Remote Control

If you purchase this Access Control System now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

Power supply

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

It controls electric lock directly. Can reduce the load of access controller, save wiring to reduce the hidden trouble Based delay control circuit, lock time can be in 0-15 seconds Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off Operative device: E/M Lock, Access Controller, Exit Push Button.

Electric Magentic lock

It is a High-performance 180kg Holding Force electric magnetic lock which suit for many access control system. This electric lock can meet your need perfectly!

Voltage: 12V DC Mode: NC(locked whilst power supply is operating), fail safe mode Application: wood, iron doors Main body dimensions: 171 x 39.2 x 22mm Pack includes: electric magnetic lock, installation diagrams Construction: stainless steel. Waterproof version, can work outside Performance Testing: 1000000 times aging test Safety function: Built-in voltage spike suppressor Anti-Residual Magnesium Designed Weight:1.3kg

Wiring

Note:

• We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
• The cables are very easy to be found in your local market as they are international standard.
• We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
• The total length of the connection cables can NOT exceed 100 meters.
• If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.


  0.2mm2	0.5mm2	1.0mm2
  Indoor to outdoor max distance	30m	50m	100m
  Indoor to indoor max distance	20m	50m	100m
  Outdoor to Electric lock max distance	2m	3m	5m

Specification

Package

NOTE: We have the user manual in English , French, Spanish and Russian language.We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.
