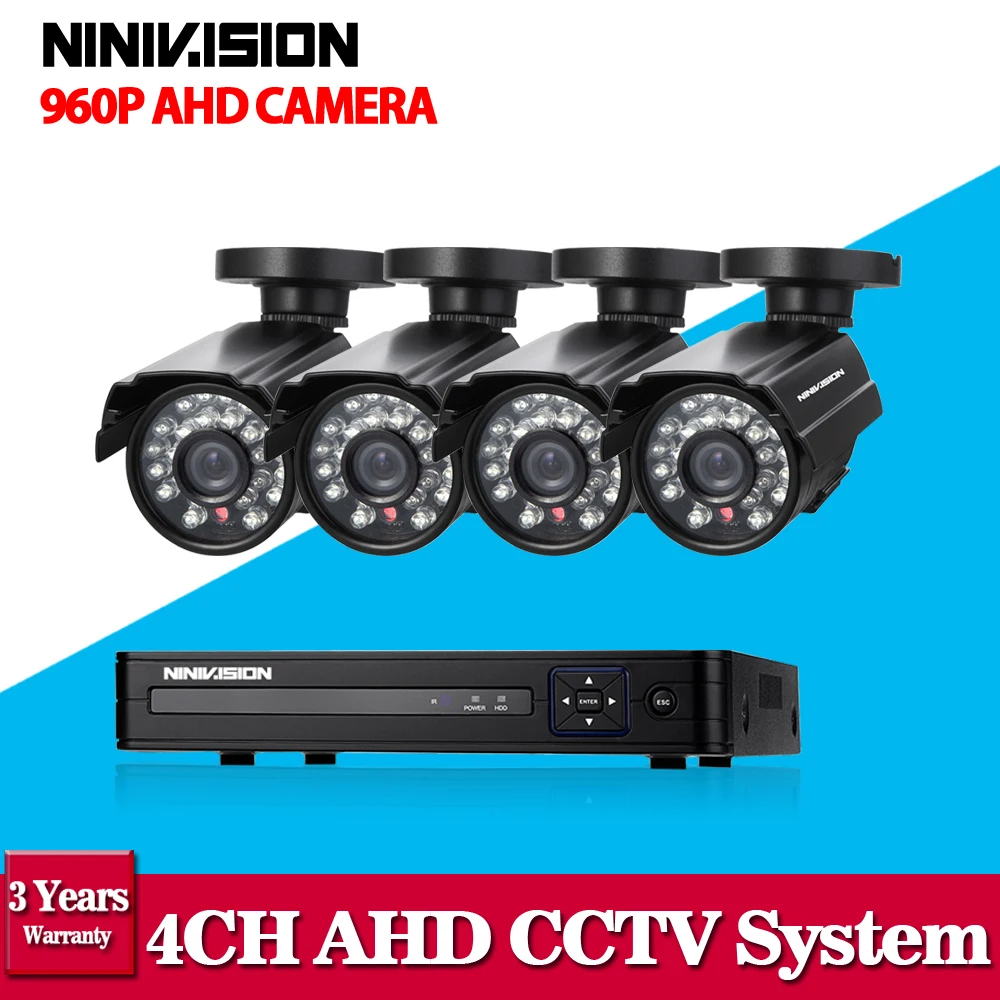

Full HD 1080P CCTV security system 4CH 1080P AHD-NH DVR kit 4*1.3mp 960P Outdoor video surveillance security camera kit WIFI DVR

USD 439.88/pieceUSD 339.88/pieceUSD 330.88-430.88/pieceUSD 489.88/pieceUSD 399.88/pieceUSD 466.88/pieceUSD 399.88/pieceUSD 339.88/piece

• 1 X 4CH AHD 1080P HDMI DVR NVR HVR 3 IN 1 Network Digital Video Recorder
• 4 x AHD 960P 1.3MP 1/3″ inch indoor outdoor IR Day Night vision waterproof cameras
• 4 X 65feet(20m) cctv video cable for camera
• 1 x 12V/3000mA power adapter for cameras
• 1 x 12V/2000mA power adapter for DVR
• 1 X 1 to 4 power splitter cable
• 1 X USB Mouse for DVR
• 1 X Software CD for DVR
• 1 X remote control for DVR
• no Hard Disk included!!!!!

4CH AHD -NH DVR System Support: DVR / NVR / HVR 3 IN 1(AHD Camera/Analog Camera/IP Camera)

1080P AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras What is DVR /NVR /HVR 3 in 1? DVR:Digital Video Recorder. NVR:Network Video Recorder. HVR:High Definition / Hybrid Digital Video Recorder. This 3 in 1 DVR has mature technology of DVR as well as the high definition and network advantages of NVR. Save the huge cost when you want to upgrade the dvr system to be NVR!!! 720P or 1080P IP Cameras supported(ONVIF Protocal)to get high definition image

1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras

1> Connect the Camera to DVR

2> Connect the DVR to Network

3> Scan QR for Mobile APP

4> Scan QR for S/N via APP and Enjoy Live Viewing

View on HDMI Monitor Easily display video through the HDMI port of your computer monitor to take full advantage of the security system’s clarity. (HD Cable Not Included) View on TV or PC Monitor For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options. VGA or BNC to RCA cable is not included.

No matter day or night, 24 hour monitoring prevents theft.

Multiple Defense Zones Motion Detection

When subject appear in any defense zone the DVR will start recording

Multi-language menus option up to 28 kinds of Language..

System

Main processor: Embedded processor

Operating system: Embedded Linux

Video&Audio

Video Fortmat PAL or NTSC

Video compression H.264

Encode capacity: 4*AHD-NH /1080N

Decode capacity: 4*AHD-NH 1080P /2*AHD-NH 1080P

Analog input: 4*AHD-NH 1080N

Digital input: 4*1080P(Network)

Hybrid input: 2*AHD 1080P(analog)+2*1080P(Network)

Audio Input: 4 RCA Input

Audio Output: 1 RCA Output

Audio compression:G.711A

Recording

Compression Format: H.264

Recording Resolution: NTSC: AHD 1080N(1280 x 1080) PAL: AHD 1080N(1280 x 1080)

Recording Modes: Manual/Motion/Schedule

Hard drive: Internal SATA hard drive required for recording,support up to 4TB

Network

LAN Connection: YES

Network Interface: RJ45

Interface

Video input 4ch BNC

Video output 1ch VGA, 1ch HDMI

Audio input 4ch RCA

Audio output 1ch RCA

Network interface RJ45 10M/100M

PTZ control 1*RS485, Support multiple PTZ protocols

USB 2* USB 2.0

HDD 1*SATA port (Max 4TB/per)

Wireless 3G, WIFI (extension via USB)

General

Power Supply DC 12V

Back up method: External storage via USB

Temperature ：-10℃+50℃

Humidity ：10%-90%

USB Mouse：included

Remote Control: YES

Dimension：250mm(length)*235mm(width)* 45mm(height)

Weight：1.5KG

DVR Language

Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

AHD (Analog High Definition) is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).

In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.

This camera needs to access AHD DVR. Cannot work with normal Analog DVRs.

Best choice for project reconstruction!!You can upgrade an existing analog security system

to 1.0MP/1.3MP/2.0MP HD camera system without changing cable routes.

1) Applying high performance sensor, the image is clear and delicate

2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion

3) Analog HD 960P @AHD video output

4) Transmission distance up to 500 meters

5) Support ultra low illumination

6) Support automatic electronic shutter function, adapting different monitoring environment

7) IR distance : 35 meters

8) Camera lens choices : 3.6mm/6mm

By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;

Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not distortion;

Analog HD AHD video output;

The transmission distance is 500 meters;

Support automatic electronic shutter function, adapt to different monitoring environment;

Waterproof design IP67, reliability;

Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;

Easy installation & operation, as same as analog CCTV system

More acceptable, lower price than analog surveilance system

NO Delay, Real time Display.

Video

Image sensor:1/3″inch CCD

Video quality:960P/1.3MP/2500TVL

Lens:3.6mm lens

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-25°F~122°F / -32°C ~50°C

Operating Power:DC 12V

Weatherproof:yes

Minimum Illumination: 0.0 Lux

Body Construction:Bullet with Built-in Wall Mount

Night Vision

Distance:Up to 35m

IR Cut Filter:yes

Number of IR Lens:24pcs

• IR Cut Filter Provides accurate color reproduction in all lighting conditions.

• See more details with 3.6mm/6mm lens

• Day & Night Monitoring with Built-in IR-Cut filter

• IP66 Professional outdoor weatherproof

• Indoor/Outdoor Applicable(Camera performs both in outdoor and Indoor applications).
