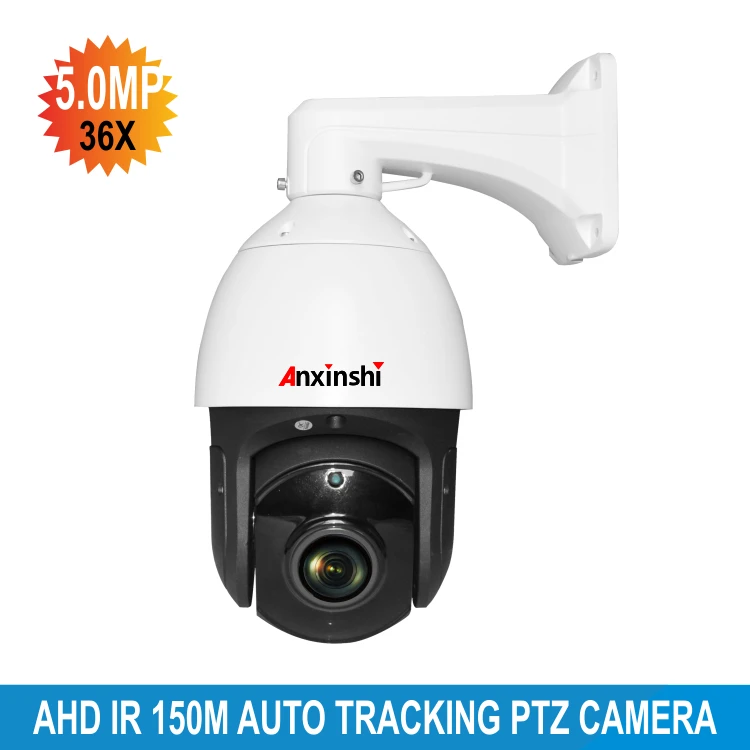

Full HD Auto tracking 5.0MP 36X zoom PTZ Camera HD AHD IR 150M LED DWDR High Speed Dome Camera

Full HD Auto tracking 5 0MP 36X zoom PTZ Camera HD AHD IR 150M LED DWDR
Click to see details
Full HD Auto tracking 5 0MP 36X zoom PTZ Camera HD AHD IR 150M LED DWDR
80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $499.00 / piece
Sale price:  US $339.32 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


Camera: HD 5.0Mpixes 1/3″ CMOS Sensor, 36x, f=4.5mm~162mm, D/N( ICR-Cut), DWDR , Color: 0.05lux, B/W:0.01lux. Dome Features: 1. Auto tracking moving target according to movment ; 1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption 2. Imported array IR LED, auto adjust zoom according to different distance 3. IR range 150M 4. With digital temperature controlling system protecting IR LED 5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S. 6.AHD output /TVI output / CVI output / CVBS output / D1 / AHD720P / AHD960H / AHD1080P / AHD 3.0MP / AHD 4.0MP / AHD 5.0MP output 7. 5 tours, DC12V

Form parameters
Mode Name and Description ASHD698T-036-50 HD IR Auto Tracking High Speed Dome Camera
ASHD698T-036-50 Outdoor
Camera Camera Name AS-AH036(36X D/N))
Image Sensor 1/3″ CMOS (NVP2477+05A10)
Effective Pixels 5.0 Mpixes
Horizontal Resolution 2592*1944
Min. Illumination 0.05Lux :Color/0.01 Lux:B/W
Zoom 36X, f=4.5mm~162mm F1.6(W)~2.7(T)
White Balance Auto/Indoor/Outdoor/Manual
Electronic shutter 1/30s~1/10,000s
Dome Features CPU Type 32 bit ARM CPU
Luminary Array Φ20 6pcs
Night vision distance 150M
Lamp control Auto, Manual, by Zoom
Address 0~255(soft address and hard address)
Pan Range 360° continued rotation
Tilt Range 0~90°(Auto Flip)
Manual pan speed 0~240º/S
Manual tilt speed 0~120°/S
Preset speed 400°/S
Actual preset Accuracy ±0.10°
Preset points 255
Operation OSD language Chinese /English
OSD Display dome menu & camera menu adjustment
Home position Return to preset/scan/pattern/ if there is no command
in the specified period.
Operation recall recall operation zone
Tour 5
Communication Protocol Pelco D, Pelco P
Intelligent Three
dimensional Scan
Auto Pan & Tilt &Zoom /Manual
Pattern group 3Programmable(Pan/Tilt/Zoom )
Speed adaption Speed slows down automatically when zoom in
Intelligent power
off real time memory
automatic save functions setting ,automatic wake up tour function
Camera Menu operation support the operation of camera set up
Manual continued
Auto Scan
Non-limited position of manual continued Auto scan
General Work temperature External–35℃~55℃
Work Humidity 0%~90% (Non condensing)
Power DC12V±10%; 5A
Consumption <50W
Communication RS-485
Video Output AHD output /TVI output / CVI output / CVBS output / D1 / AHD720P / AHD960H / AHD1080P / AHD 3.0MP / AHD 4.0MP / AHD 5.0MP output
Connection BNC

1. About the sample: How could I get a sample?

Once receive your payment for samples and their express delivery and then send samples

to you. The prices of the samples are the same as those on the pricelist. Express delivery

charge depends on the quantity of the samples.

2. About price list: can I get your price list?

Yes, please tell us the products (with their code number) and order quantity, then we will

offer the price by e-mail. And our price list will keep updated every month.

3. About the shipment: what type of shipment will you use?

We usually ship the products by express delivery to your door or by air freight to your nearest

airport. If the order quantity is large, we may ship by sea container.

4. About payment: what terms of payment do you use?

We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.

5. About the MOQ: What is your minimum order qty?

Our minimum order qty is 20pcs each model, but we accept small order as trial order.

6,About compensation: what is your company’s compensation policy?

We can compensate buyer’s loss if our products have quality problem. For small qty

problem products, we can replace with new products in next order. For larger qty problem

products, we can accept returned problematic products, then we check them and replace

them by good quality products.

7. About sole-distributor: How can I be your sole-distributor?

We have special policy for sole-distributor. Please contact our sales person to get related files.

8. About OEM: could we place order by OEM style to produce our own brand products in China?

Of course you can. Welcome to do OEM.

If any further problem, welcome to contact our sales person.

Thanks for your interest

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:


Anxinshi Technology Co.,Ltd is a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
