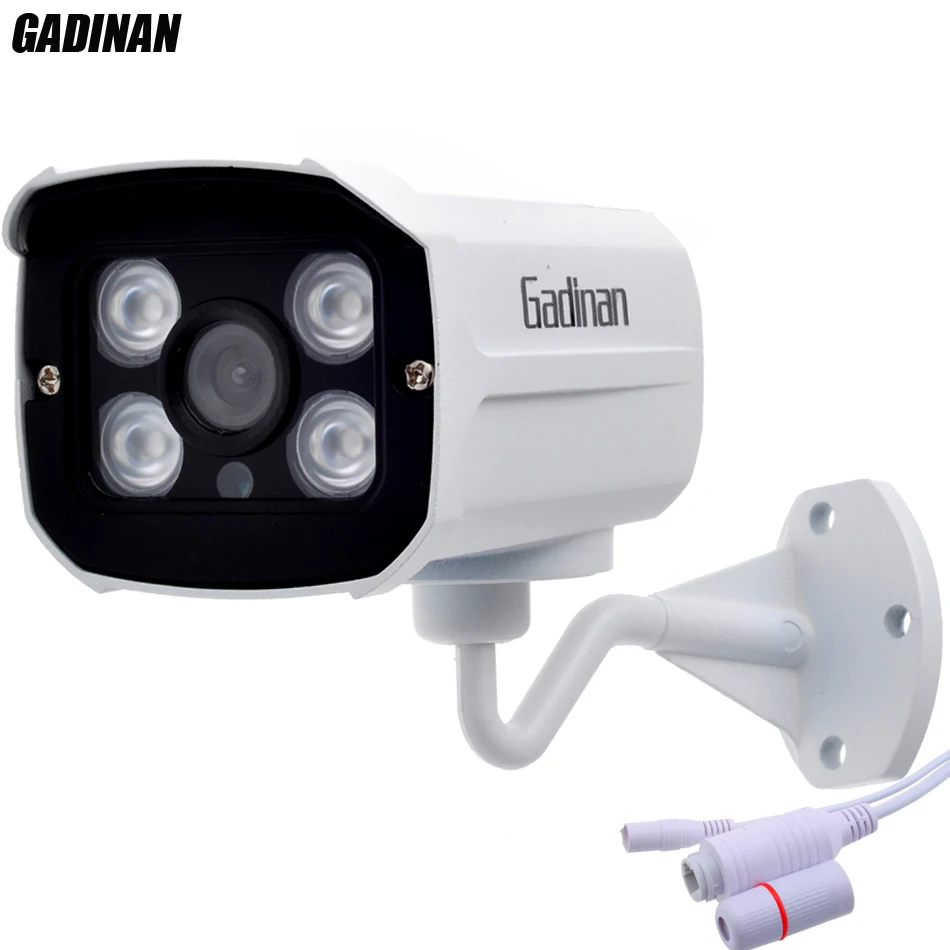

GADINAN 48V POE IP Camera CCTV 720P 960P 1080P Night Vision ONVIF Bullet Motion Detection Alarm POE Camera IP camera P2P Full HD

GADINAN 48V POE IP Camera font b CCTV b font 720P 960P 1080P Night Vision ONVIF
Click to see details
GADINAN 48V POE IP Camera CCTV 720P 960P 1080P Night Vision ONVIF Bullet Motion Detection Alarm
92 % of buyers enjoyed this product!
Availability: in stock
Price:  US $24.98 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


> 720P:1/4” 1.0Megapixel CMOS image sensor

960P:1/3” 1.3Megapixel CMOS image sensor

1080P:1/2.7 2.0Megapixel CMOS image sensor
> H.264 video compression and JPEG image capture
> 720P resolution:1280*720,960P resolution:1280*960,1080P resolution:1920*1080
> Dual encoding streams supported
> Lens: 3.6mm/6mm optional
> 48V PoE power supply,
> Built-in Web server, NVR, CMS(PSS/DSS) ,DMSS





System structure

Embedded RTOS,dual-core 32bit DSP( XM510 ),pure hard compression ,watch dog

Embedded RTOS,dual-core 32bit DSP( Hi3516C ),pure hard compression ,watch dog


1.0M 1/4″ H42 CMOS sensor ,color 0.1Lux’F1.2,black/white 0.01Lux’F1.2

1.3M 1/3″ SC1135 low illumination CMOS sensor ,color 0.01Lux’F1.2,black/white 0.001Lux’F1.2

2.0MP 1/2.7″ SC2135 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2

Video compression

H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable

Image output

Main stream:

1280*720, 704*576;sub-stream: 704*576;

Main stream: 1280*960,1280*720;sub-stream: 704*576;

Main stream:1920*1080,1280*720 sub-stream: 704*576;

Noise reduction

Support 2D/3D


3.6mm/6mm optional


Via PC/Mobile Phone/NVR With HDD

Infrared light

4pcs array IR Leds

Wide dynamic

Support digital

Network interface

1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Singal interface

One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR

Auto iris


SD Card



Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing)

Other function

Outdoor waterproof



Mobile monitoring

Support multiple mobile monitoring(iOS,Android)


via 48V PoE switch or 48V PoE NVR



Housing material


Package included:

1 x 48V PoE IP Camera
1 x CD

Instructions for use:

1,If you have a NVR, it is P2P,installation diagram:

2,If you have not NVR, please install the CMS ( Software in the CD ,or can download online,need contact us ) on your PC

You can select the language(18 languages)

How to watch via CMS:

How to find “Serial ID” (very important)

3,How to watch via web:


By Device:

By User:

Please “Register”

Then login into the user interface:

4,How to watch via iPhone and Android:

Find “XMEye” in Apple APP or Android Market

and then install it.

(Please bind the camera via web)

Horizontal screen:
