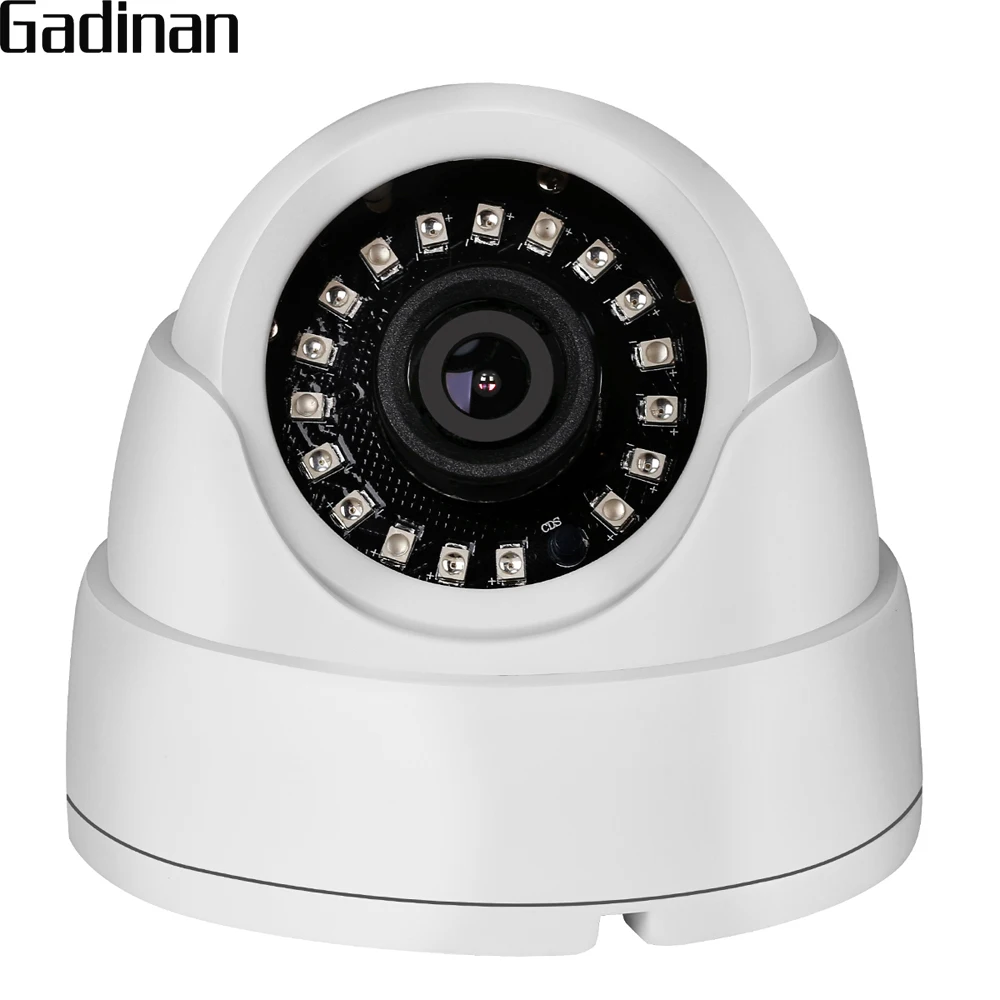

GADINAN H.265 IP Camera 18pcs Laser LEDs 1080P HI3516CV300 F22 Video Surveillance IP 2MP Dome Camera ONVIF Motion Detection P2P

H.265 is a new generation video compression standard, a successor to H.264, also known as High Efficiency Video Coding (HEVC) Why we need H.265 now ? With the explosive increasing of camera resolution from D1 to 720p,1080p, then 4K in the future , the H.264 compression capacity is far left behind the market need . How to transfer and store UHD images effectively without increasing storage device and internet expenses ? People do need a more efficient compression format . Then H.265 comes just at the right time. H.265 advantages 1. It is approximate 2 times as effective as H.264. 2. Reduces file size up to 50% with the same quality. 3. Supports resolution up to 7680 × 4320 (8K). 4. Reduces video noise and increases dynamic range. 5. Extend far greater video quality experience compared to H.264

Features:

1. 1/2.7” F22 CMOS Image sensors;

2. H.265/H.264,support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;

3. Color 0.1Lux; B/W 0.01Lux;

4. 1 RJ45 Ethernet interface, 10/100M automatically adapting;

5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;

6. Lens: 2.8mm/3.6mm/6mm/8mm;

7. 18PCS laser IR led light;

8. Support ONVIF 2.0, and mobile monitoring;

9. ABS plastic case.

Specifications:

Package included:

1 x IP Camera

1 x CD

(Does not include Power Adapter)

Note: “DC 12V” Please use power supply, packaging does not include the power supply.

We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264. ​ Q & A 1, IP camera default IP address:192.168.1.10 User name:admin,password:empty(null) If there is a problem with “Can not find the Device”, it is the default ip address is not in the same network segment as your router. Please click “Edit Device” to change the camera’s ip address, For example, if your router’s ip address is 192.168.0.1, then you need to change the camera’s ip address to 192.168.0.XX. “DeviceManage” It can find and change the IP address, upgrade the firmware. 2, P2P website: “www.xmeye.net” ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese . then please input your P2P ID,user name and password to login and preview. Access to the IPC through the web, only one screen can be displayed. There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR) 3,The camera’s port information. ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465. 4,Does the cameras can be compatible with other manufacturers NVR? Please confirm whether other manufacturers NVR support onvif protocol. Our camera’s onvif protocol is onvif Profile S, does not support HTTPS protocol; Auto focus camera, other manufacturers NVR can only zoom, can not focus. 5, The camera all supports Motion Detect,FTP,Email alarm, RTSP. A,How to set up motion detection? Access to IPC via IE (or CMS software), device configuration – alarm function – motion detection – on and save. B, About FTP FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload. We suggest the Sever-U and FileZilla FTP Server to upload the video or image. C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) . D, RTSP URL for VLC media Player : RTSP port: 554 rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream Example: rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream) If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set 6, About DDNS Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80) Note: The two ports in the network settings can be viewed, can be modified What domain names are supported? – CN99 / DynDns / Oray / NO-IP / MYQ-SEE

USD 71.86/pieceUSD 101.34/pieceUSD 2.15/lotUSD 5.62-23.25/pieceUSD 12.99/pieceUSD 4.36/pieceUSD 116.55/piece

Instructions for use:

A.Installation Diagram

B.Install and use the CMS on PC

C.Web login:www.xmeye.net

D.APP for iPhone and Android Phone

install the CMS ( Software in the CD ,or can download online,need contact us ) on your PC

You can select the language(18 languages)

How to watch via CMS:

How to find “Serial ID” (very important)

How to watch via web:

Visit website:www.xmeye.net

By Device:

By User:

Please “Register”

Then login into the user interface:

How to watch via iPhone and Android:

Find “XMEye” in Apple APP or Android Market

and then install it.

(Please bind the camera via web)

Horizontal screen:
