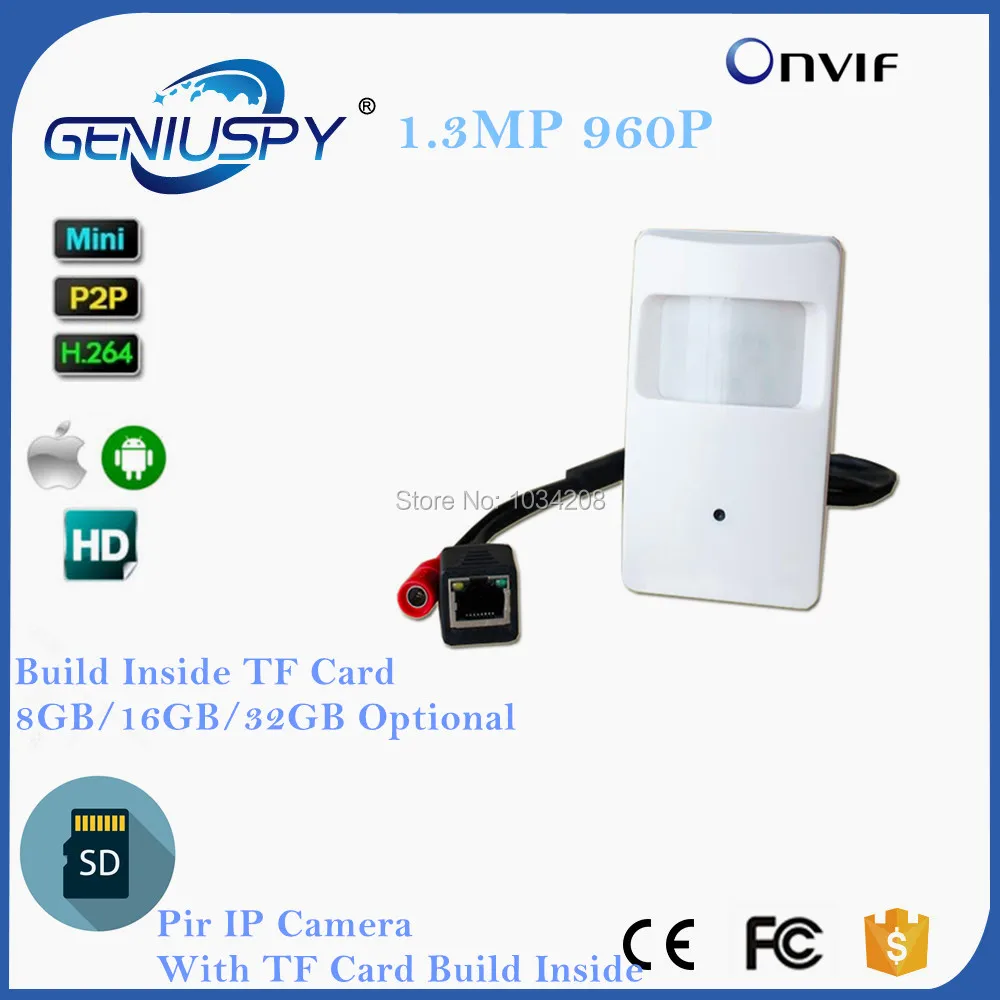

HD 1280*960P 1.3MP 3.7mm Lens Security Indoor Mini PIR Shell Surveillance Camera IP Network CCTV Camera TF Card Slot P2P Onvif

HD 1280 960P 1 3MP 3 7mm Lens Security Indoor Mini PIR Shell Surveillance Camera IP
Click to see details
HD 960P 1 3MP 3 7mm Lens Security Indoor Mini PIR Shell Surveillance Camera IP Network
80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $38.88 / piece
Sale price:  US $33.05 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

HD 1280*960P 1.3MP 3.7mm Lens Security Indoor Mini PIR Shell Surveillance Camera IP Network CCTV Camera TF Card Slot P2P Onvif

attenation:

Regard TF Card support PIR Pinhole ip camera

this models have:1xRJ 45 interface ,1x dc12v power connector , build,1x micro sd card slot optional

for more products infomation ,pls go to page:http://www.aliexpress.com/store/1034208 if you have other requirement ,welcome contact with us free !

Features:

SD / TF card camera. Its purpose is to store video motion detection alarm.Its general in 15 senconds/video segments.Ordinary video 15 minutes at most/video segments.If you want to record a video all day .

Recommended to choose NVR storage.

Features

High sensitivity, high signal-to-noise CMOS image sensor

H.264 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system

Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on

Support :ONVIF 2.0

Support :DDNS and three DDNS

Support :sending email, attaching picture

Support :Alarm picture and record Uploaded to FTP server

Support :Timing captured picture to FTP server

Support :Static IP and DHCP

Support :P2P

Support :privacy mask

Support up to 12 users browsing at the same time(Each stream supports four users

Support remote alarm linkage

Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting

Main Features:

H.264 Main Profile level

1.0/1.3 Megapixel 1280*720 /1280*960P Resolution Can be optional

Dual H.264 Stream, resolution, frame rate, bit rate adjustable

Onvif Compliant compatible with brand NVR such as Hikvision, dahua,xiongmai

Support plug in & play,

indoor Use for hide ip camera

This IP hide ip camera is one cost effective H.264 1.3 Mega Pixel IP camera, which HI3518E chipset, adopts H.264 Main Profile @ Level3 compression technology. Meanwhile it uses 1/3″ inch progressive CMOS sensor, plus with 2.0gapixel lens, ensure its high quality image.

H.264 Main Profile

1.3 Megapixel 1280*960p Resolution
Dual H.264 Stream, resolution, frame rate, bit rate adjustable

support Onvif Version: 2.0

Technical Specifications

Specifications

1.MP720P(GS-PRTF62C32G)

1.3MP 960P(GS-PRTF62CH32G)

System Structure

Embedded RTOS,dual-core 32bit DSP(Hi3518E),pure hard compression,watchdog

Image sensor size+dsp

1/4″ GC1024 +GK7102

1/3″ AR0130 Ultra-low-illumination

CMOS sensor Hi 3518E+AR0130

Min illumination

Color 0.1Lux F1.2;

B/W 0.1 Lux F1.2; ir led on 0lux

Color 0.1Lux F1.2;

B/W 0.01 Lux F1.2;

ir led on o lux

Video Processing

H.264,support dual-stream,AVI; 0.1M~6Mpbs variable; 1~30f/s variable;

Image output

Main stream:1280*720;

Sub-stream:704*576;720P VGA,QVGA

Main stream:1280*9601280*720;

Sub-stream:704*576;960P, 720PVGA,QVGA

Audio interface

1ch intput,level 2Vp-p, impedance 1kΩ, support sound pick-up input;1ch output,level 16Ω,30mw,support earphones or amplifier;

Audio Processing

G.711, support bidrectional talk,audio&video synchronization;

Network interface

1*RJ45,10/100M;support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, TELNETect.
etc.;

photo resistance

A photo resistance interface, support photo resistance input signal and image,IR-CUT, infrared light linkage;

support

Support micro sd card slot storage

Intelligent

analysis

Standard intelligent video analysis functions

Service functions

Support WEB,OSD,live video transmission,support motion detection and IO alarm center reminders as well as screen pop-up linkage; JPEG capture;unified client remote monitoring software,Hip2p

ONVIF

Support onvif 2.0 version

Mobile monitoring

Support mobile monitoring(iPhone,,Android) by app camhi

Power

DC12V power input interface

size

62*48*110mm

Structures

Support POE power supply(optional ,contact with us custom )

Package Include:

1 x Mini IP Camera models:GS-PRTF62CH32G 1 x Bracket 1x instruation 1X CD Disk Note: Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !

If the buyer want other size lens please ‘Leave Message to Seller’ to notify us when bidding.

if you buy models which without tf card ,you can open the camera body and insert the tf card by yourself !

see samples pictures below:

Simple Instruation:

To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!

Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whether it is available for the camera !
