HDMI 4CH CCTV System 1080P H264 NVR IR Network Security POE dome Camera Video Surveillance System Kit With 2TB HDD ,CAT5 cable
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
-

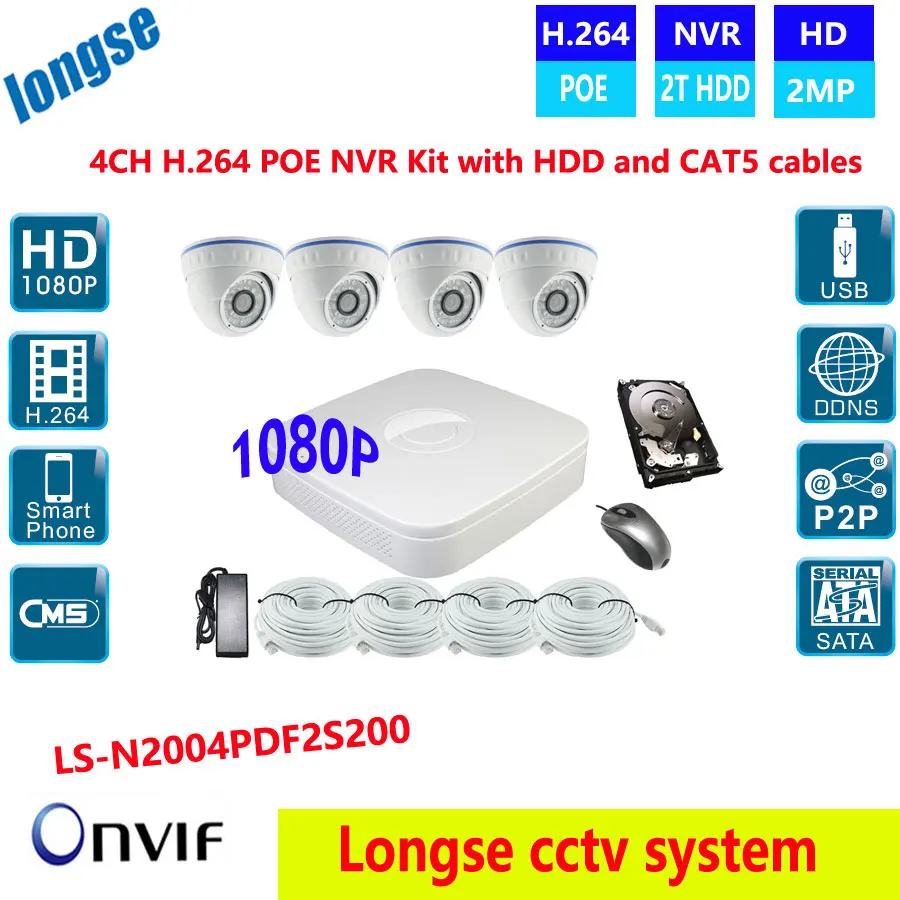

LS-N2004PDF2S200 include :
1pcs N2004PD + 4pcs POE LIRDNS200+ 1pcs 2TB DISK +4pcsx 18M CAT5 cables
N2004PD: 4ch POE NVR
LIRDNS200:2.0MP POE dome camera
2TB DISK:Seagate Brand Hard Disk (CCTV Monitoring hard disk)
Recording time: 2TB HDD can store 4ch 1080P for 12 days!
********************************************************************************************************
LS-N2004PDF2S200 Parameters
- IP Camera Input: 4CH@2MP/1.3MP/720P (Total Incoming Bandwidth ≤20M)
- Vidieo Output: 1xHDMI/ 1xVGA
- Compression Method: H.264
- Recording Resolution: 2MP/1.3MP/1MP
- Frame Rate: Main Stream: 2MP/1.3MP/1MP@25fps (PAL) / 30fps (NTSC)
- Sub-stream:D1/VGA/CIF@ 25fps (PAL) / 30fps (NTSC)
- POE: 4 x Independent 100Mbps PoE Network Interfaces
- (Output Power≤15.4W per Interface )
- Preview Resolution: 1CH@Main Stream/4CH@Sub-stream
- Playback: Support Single Channel Mode.
- Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup
- Static, Dynamic IP and DDNS, P2P, Support IE and Special Client Software
- 2 × USB, 5 x RJ45 (10M/100M Adaptive Ethernet Interface)
- 1 SATA Hard Disk Interface (2.5″/3.5″ SATA, Up to 6TB)
- Backup: USB2.0 (such as U Disk, USB Drive) and Network
- Standard Color: White,
- Support Remote View by Smart Phone
- Power Adaptor: DC15V/6A, With 1x2TB Seagate hard disk ST2000VX002
- Dimensions of NVR (L×W×H): 215*215*53(mm)
- Weight of Package: 6.58kg
Model LS-N2004PD System Main Processor ARM Cortex A9 Processor(HI3520D) Operating System Embedded LINUX Video Input 4 Channel(4 channel wifi ipc),Support 1280×720, 1280×960, 1280×720 ect. Output 1 VGA, 1 HDMI Alarm Sensor Input NO Output NO Motion Detection 4 Channel Email Alarm Support Display VGA Resolution:1920×1080,1024X720, 1280X720, 1280X1024, HDMI Resolution:1920×1080,1024X720, 1280X720, 1280X1024, Display Split 4 Channel / 1Channel Digital Zoom NO OSD Camera title, Time, Video loss, Recording, Motion Detection Recording Video Compression H.264 Resolution (1080P) 1920×1080, 960P(1280×960) / 720P(1280×720) / D1 (704×576/704×480) Record Rate PAL :, 1080P 960P@100fps,720P@100fps, D1@100fps
NTSC: 1080P 960P@120fps 720P@120fps, D1@120fpsRecord Mode Timer \ Motion Detection Playback & Backup Local Sync Playback 1X1080P Remote Sync Playback YES Search Mode ALL, Channel, Time, Date, Motion Detection Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play Backup Mode USB Device Network Interface 5 RJ45 10M/100M Adaptive Ethernet Interface Network Functions HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS Onvif Version Support Onvif 2.4 Web Browser IE6-11 CMS Software Support Windows XP / Windows Vista / Windows 7/ Windows 8 Cloud Support(P2P) Yes POE support Smart Phone iPhone, iPad, Android, Android PAD Hard Disk Driver Interface Type 1 SATA Interface , 2.5/3.5 SATA Capacity Up to 4TB capacity General Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, RomanianUSB Interface 2 USB 2.0 Interfaces Power Supply DC48V 1250mA Working Environment -10~55 degree /10~90% Dimension(W×D×H) 215*215*53mm Weight 2.0KG (without HDD)
********************************************************************************************************
Remote view by Smart phone
********************************************************************************************************
Remote View by IE
********************************************************************************************************
Remote View by CMS
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
LIRDNS200 Parameters
Vandalproof IR Dome Camera NEW IR LED: 14µ x 18PCS IR range: 20m Board Lens 3.6mm/F2.0 Blue/Orange/Black Rubber Ring Size: 94 x 69(H) mm Weight: 450g Color: White Voltage: DC12V/POE Main Specification 1/2.9″ SONY Low Illumination CMOS Sensor HISILICON Hi3516C, WDR; Main Stream: 1080P/720P@25fps 3MP HD Lens, With IR-CUT
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
********************************************************************************************************
Packet:
(1) 4ch NVR X1pcs
(1) 2T disk (Seagate) X1pcs
(1) 2.0MP POE Dome camera LIRDNS200 X4pcs
(1) Mouse X1pcs
(1) Power Adaptor: DC12V6A for NVR x 1pcs
(1) 18M CAT5 cables x 4pcs
(1) User’s Manual X1pcs
(1) CD Software X1pcs
Tip:
About transport: The Business express are: Fedex, TNT,DHL, UPS, Aramex ,EMS.
According to different countries,we will choose differen Express company. Generally we will choose the recent flight,the easy way to clear customs.usually ship by DHL. But the follow country only be shipped by EMS, as busniess express can’t be clear to these country customs. the country are: Brazil, Argentina, Belarus, Russia, Kazakhstan, Tajikistan, Uzbekistan.
