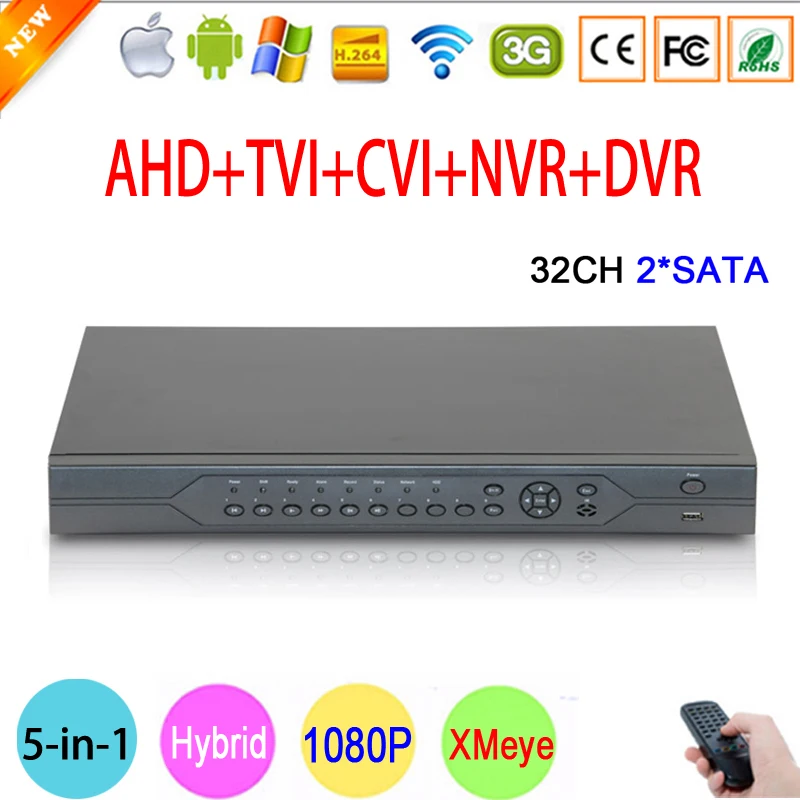

HI3531A 32CH 32 Channel Surveillance Video Recorder 1080P CCTV Camera 5 in 1 Coaxial Hybrid IP NVR CVI TVI AHD DVR Free Shipping

HI3531A 32CH 32 Channel Surveillance font b Video b font Recorder 1080P CCTV Camera 5 in
Click to see details
1080P 960P 720P 960H CCTV Camera HI3531A 32CH 32 Channel 6 in 1 Coaxial Hybrid NVR
100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $166.00 / piece
Sale price:  US $101.26 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


  • analog: 32*1080N(analog)
  • hybrid: 8*1080N(analog)+8*960P(network)
  • Network only:32*1080P;16*3M;8*5M

Q:What is 1080N AHD-NH DVR?


  1. 1080N AHD-NH Coaxial DVR is new format AHD DVR;
  2. Resolution is 960*1080;
  3. Support 2 million pixels(1080P),1.3 million pixels(960P), 1 million(720P) pixels AHD,TVI, CVI HD Camera; Analog Camera(960H) and IP Cmaera(2mp/3mp/5mp).

Q: What is 5-in-1 function?

A: 5-in-1 means that support AHD(AHD Camera),TVI(TVI Camera),CVI(CVI Camera),DVR(analog) and NVR(IP Camera).

32CH Hybrid 5 in 1 NVR TVI CVI AHD CCTV DVR Operation Picture:

  • support 32 Channels 1080N front-end real-time encoding;
  • Support VGA,HDMI output homology
  • 10/100/1000Mbps adaptive Ethernet port,RJ45 port
  • Automatic networking support,a key to add equipment;
  • Onvif protocol support,third-party devices can be connected;
  • Support GB28181 support for third-party internet protocol access(optional);
  • Support cloud services,network penetration,push alarm function;
  • Support remote access,comes with domain name service functions(ARSP);
  • Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,3G,WIFI,IP search,alarm center,etc;
  • Support mobile phone monitoring(iOS,Android);
  • Support multiple browser access(IE,Chrome,Firefox,Safari);
  • Support for more than twenty languages,to break the national boundaries;
  • Perfect protection circuit,unique triple watchdog function;
  • Supporting WEB,CMS,VMS,MYEYE platform that provides SDK development;
Model ADVR7032E-LM-V2(2*SATA)
System Main processor Hi3531A
Operating system embedded Linux
System resources Simultaneously multi-channel real-time recording, playback, network operation, USB backup
interface Operator interface support 16-bit true color graphical menu interface and mouse operation
Video Codec H.264
Monitor quality VGA,HDMI:HD
Encode ability 32*1080N
Decode ability 8*1080N
Multi-mode input analog: 32*1080N(analog)
hybrid: 8*1080N(analog)+8*960P(network)
Network only:32*1080P;16*3M;8*5M
Audio Audio compression G.711A
Intercom support
Record & playback Record mode manual>alarm>motion detection>timing
Local Playback 8ch
Storage & backup Space occupation 720P ~20G/ day*channel ;960H 12~20G/ day*channel;
audio:691.2M/ day*channel
Video storage HDD, network
Backup mode Network, USB hard disk, USB burner, SATA burner
External Interface Video input 32CH BNC
Video output 1ch VGA,HDMI
Audio input 16RCA
Audio output 1RCA
Alarm input 16
Alarm output 4
Network interface RJ45 10M/100M self-adaption
PTZ control 1*RS485, Support kinds of PTZ protocols
USB 2* USB 2.0 ports
HDD 2*SATA ports (Max 6TB/per)
General Power supply 12V/4A
Power Consumption <48W (without HDD)
Temperature 0-+55
Humidity 10%-90%
Working environment 86kpa—106kpa
Dimension 440*290*50(mm )
Weight 4.5kg

  • Russia: By SPSR, 7-20days
  • USA,Canada: UPS Expedited(7-15days) or DHL 10-25days
  • Western Europe:EMS and DHL 10-20days
  • Eastern Europe:EMS and China Post(big parcel) 10-20days
  • Southern Europe:EMS and China Post(big parcel) 10-20days
  • Brazil:UPS Expedited(7-15days)
  • Southeast Asia:COMONE EXPRESS(5-10days), AS Southeast Asian green(5-10days) China Post(big parcel) 10-25days
  • Japan and South Korea: AS Southeast Asian green(5-10days) or EMS(7-15days)


If you want to use WIFI function , please click the following button to buy USB WIFI Antenna Module,Thanks!
