Intelligent Photoelectric Smoke Detector (Intrinsically safe type)work with TC series addressable panel addressable smoke alarm

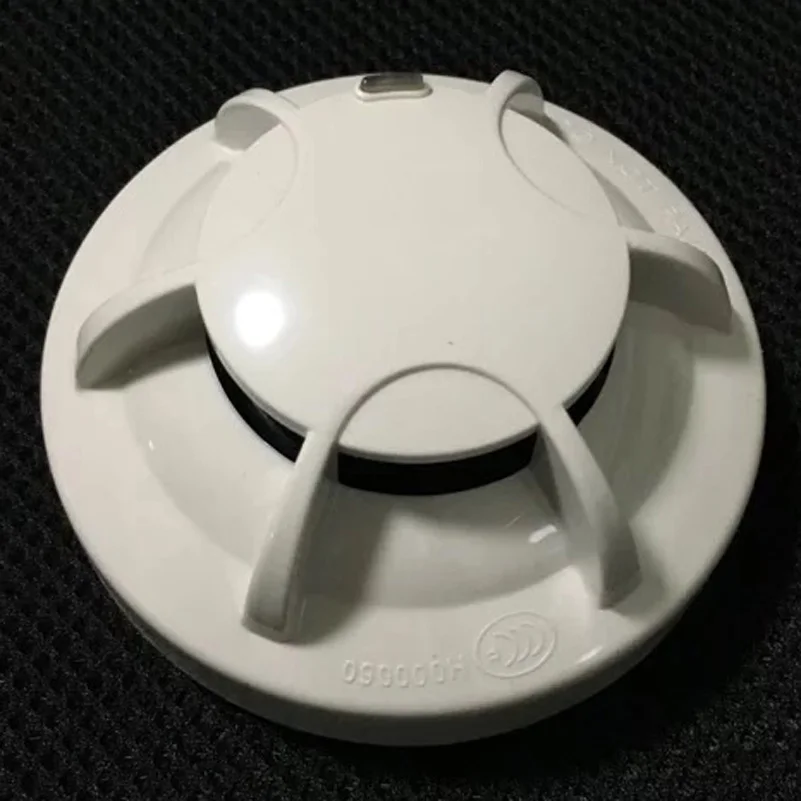

Intelligent Photoelectric Smoke Detector (Intrinsically safe type)work with TC series addressable panel 1.TC5101 Intelligent Photoelectric Smoke Detector（Intrinsically safe type） Installed in the explosive gas environment that has IIC level, and the temperature class is T6 Single chip microcomputer;real-time sampling and processing data function Temperature and humidity drift compensation, dust accumulation degree and faultdetection Non-polarized two-wire Electronically addressed Technical Specifications Operating voltage: Loop: 24V Operating current: Standby current: ≤0.3mA Alarm current: ≤0.8mA Operating Environment: Temperature: -10°C～+55°C Relative Humidity: ≤95%, non-condensing Indicator: Red Flashes when polling Illuminates in alarm Explosion-proof mark: Exib IIC T6 Ingress protection rating: IP20 Material and color of enclosure: ABS; Milky white Programming method: Electronically programming Code range: One address is within 1～255 Weight: About 130g Mounting hole distance: 60mm Dimension: Diameter 100mm, Height 51mm (with base)

———————————————————————————————————————————————————————–

Dear Friends, Please kindly Note:

1. Please understand the relationships between the value of Invoice declaration(for custom clearance) and the risk in your country, such as Brazil. Much lower value declaration may cause problem/risk during custom clearance. 2. Please leave a tax number under your order for delivery requirement. 3. All international expresses delivery are not allowed to send battery, so Batteries are not included in the independent smoke, the encoder and panel shipments. 4. For the free shipping products , we will choose one express which is convenient for both of us .If you don’t like any specific international express, please feel free to tell us, we will change to another.

We produce a variety of independent sales distribution smoke detectors , combustible gas detectors, fire alarm systems, security alarm systems products among consumers enjoy a higher status . With many retailers and agents to establish a long-term stable cooperative relations .

Welcome ODM OEM.
