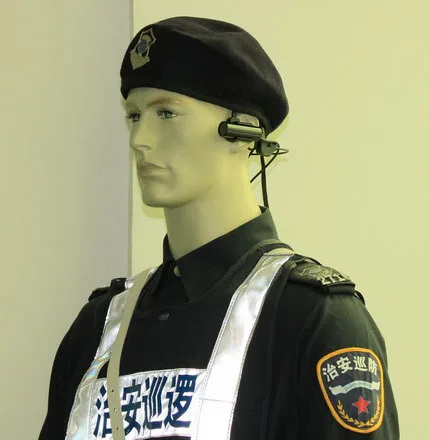

Mini Bullet CVBS CCD Camera 700TVL With Headset Mount For Mobile Surveillance Security Video 5V
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Most Popular from Category
Mini Bullet CVBS CCD Camera 700TVL With Headset Mount For Mobile Surveillance Security Video 5V
1.Total Pixels Number
NTSC: 1020(H) x 508(V) 520K
PAL : 1020(H) x 596(V) 610K
2. Effective Pixels Number
NTSC: 976(H) x 494(V) 480K
PAL:976(H) x 582(V) 570K
3.Pick-up Device
1/3”960H EXview HAD CCD II (Sony)
4. Lens Fitted
3.7mm
5. Signal Process
Digital Signal Process
6. Scanning System
2:1 Interlace
7. Sync System
Internal
8. Scanning Frequency
NTSC:59.94Hz (VD)
PAL : 50Hz (VD)
9. Horizontal Resolution
700 TV Lines
10. S/N Ratio
More than 50dB (AGC Off )
11. Video Output
1.0Vpp composite (75R)
12. Min. Illumination
0.1Lux /30IRE, F2.0
13. Shutter Speed
NTSC: 1/60 ~ 1/100,000 sec
PAL : 1/50 ~ 1/100,000 sec
14. Power Consumption
DC12V , Max. 80mA
DC5V , Max. 150mA
15. Operating Temperature
-10C ~ 50C (Humidity : 0% RH ~ 80% RH)
16. Storage Temperature
-20C ~ 60C (Humidity : 0% RH ~ 85% RH)
17. Size: Φ19 *55mm
OSD(option)
1.LENS— MANUAL, DC
2.SHUTTER/AGC—
3.SHUTTER : SHUT, SHUT+IRIS, IRIS/AGC : OFF, AGC
4.WHITE BALANCE— ATW, PUSH, USER1, USER2, ANTI CR, MANUAL, PUSH,LOCK
5.BACKLIGHT— OFF, BLC, HLC
6.ATR —OFF,ON (Level adjustable)
7.NR —OFF,ON (Level adjustable)
8.DAYNIGHT— AUTO, COLOR, B/W
9.PICT ADJUST—MIRROR, BRIGHTNESS, CONTRAST, SHARPNESS, HUE, GAIN
10.MOTION DETECT—ION OFF, ON (4 AREAS)
11.PRIVACY OFF, ON (4 AREAS)
12.CAMERA ID— 0~9, A~Z, Special Character
13.LANGUAGE— English, Japanese, German, French, Russian, Portuguese,
Spanish, Chinese
