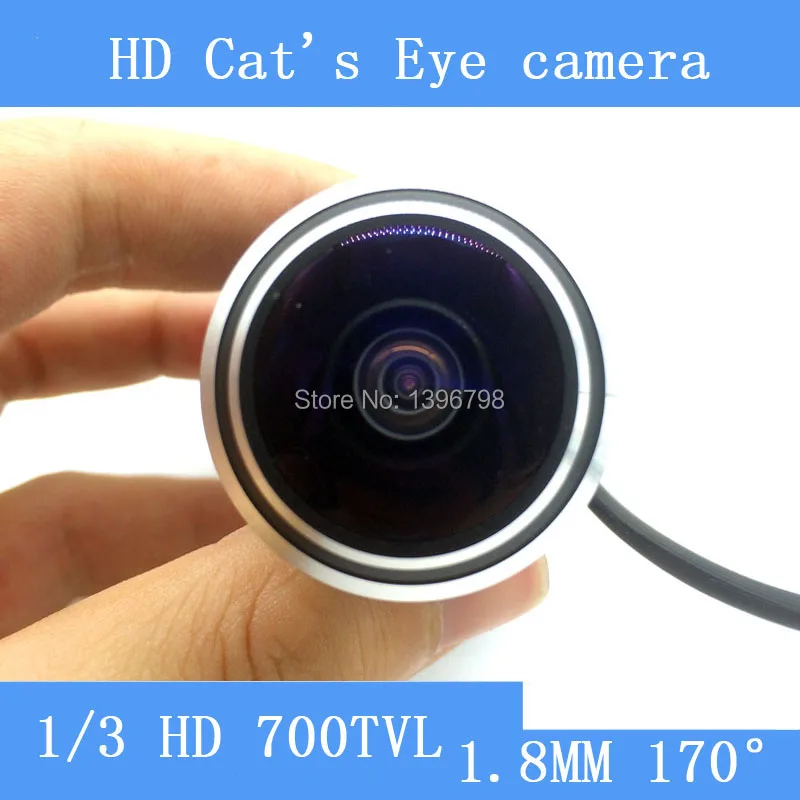

Mini cat’s-eye Door Video Camera 170 Wide Angle 700TVL 5MP Wired Color DOORVIEW surveillance camera

1/3″ CCD 700TVL HD 5MP Color Home Door Hole Eye Peephole Pinhole Security mini CCTV Camera for 25-30mm Thickness Door Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts! We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee! Factory direct sales of goods are definitely value for money! Sony CCD camera cat Product Size: Lens diameter 32MM Intermediate thin section 25MM The total length 30MM – 85MM adjustable At the bottom of the thickest part of the 36MM Simple installation instructions: Fancy chart, Accessories sequentially spin down, and then the former cat burglar doors down, expand the appropriate space (big generous about 25MM) and the product penetration from the outside, and finally the other accessories can be fitted Image Sensor 1/3 Inch SONY CCD image sensor Horizontal resolution 700 TV Lines, No amount of infrared light (without IR) Scanning frequency PAL: 15.625 kHz / 50 KHz Scanning System 2: 1 interlace, 2: 1 interlace Minimum illumination 0.5 Lux Internal Synchronization Internal / DC12V Signal / noise ratio greater than 48 dB Better than Auto Auto Electronic Shutter 1/50 ~ 1 / 100,000 sec. Video Output 1 Vp-p, 75 composite signal Power supply 12V DC (10%) 1.8mm lens configuration Power Consumption 800mA / DC12V Standard accessories: 1. Camera (wide angle 170 degrees) a Tips: This camera without power and other accessories. We also offer Sony ccd 700TVL/800TVL same paragraph shell cat eye HD surveillance cameras. Prices are negotiable, there is a need to contact the online consultation. Trouble and Solution: 1. No Picture after providing power May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude. Please check all the connecting cable and monitors whether be connected correctly or not. 2. The picture level direction have flowing interference ripples May be caused by the power supply AC ripples, it need filter the wave of the power supply. Check the monitor and peripheral equipments used. 3. The picture background color changes continuously The fluorescent lamp \\\ ‘s electromagnetic field cause color roll. This is proper phenomenon of the cameras. Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can improve it. Use Power supply external sync. Camera can solve it. 4.The picture smear too mass The power supply \\\ ‘s voltage unstable Connecting cables not connect correctly or have high impedance. Trouble and Solution: PS: PAL format is for Euro Courty, NTSC format is for USA, Canada, if you do not know which one you need, please feel free to contact us. 1. No Picture after providing power May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude. Please check all the conecting cable and monitors whether be connected correctly or not. 2. The picture level direction have flowing interference ripples May be caused by the power supply AC ripples, it need filter the wave of the power supply. Check the monitor and peripheral equipments used. 3. The picture background color changes continuously The fluorescent lamp’s electromagnetic field cause color roll. This is proper phenomenon of the cameras. Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can improve it. Use Power supply external sync. Camera can solve it. 4.The picture smear too mass The power supply’s voltage unstable Connecting cables not connect correctly or have high impedance.

Lens numerical value is greater, see farther, the smaller the angle.

Lens with smaller values, see the more recent, the larger the angle.

Choose a different lens based on the original to add 3 dollars

Warranty:

1. All merchandise we sell are in good quality and under strict examination before they are shipped. We will try our best to avoid any quality problem.

2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer.

3. Your satisfaction of our products is guarantee. If you are not satisfied with the product, you may return the goods for exchange but please communicate with us before return. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.

4. All return items must be in good condition. They must be under resalable condition.

Feedback: The clients satisfaction and positive feedback is very important to us. Please kindly leave positive feedback and 5 stars if you are satisfied with the goods and services. If you have any problems with our items or services, please feel free to contact us firstly before you send negative feedback. We will do our best to solve any problems and provide you with the best customer experiences.

Thank you for your shopping
