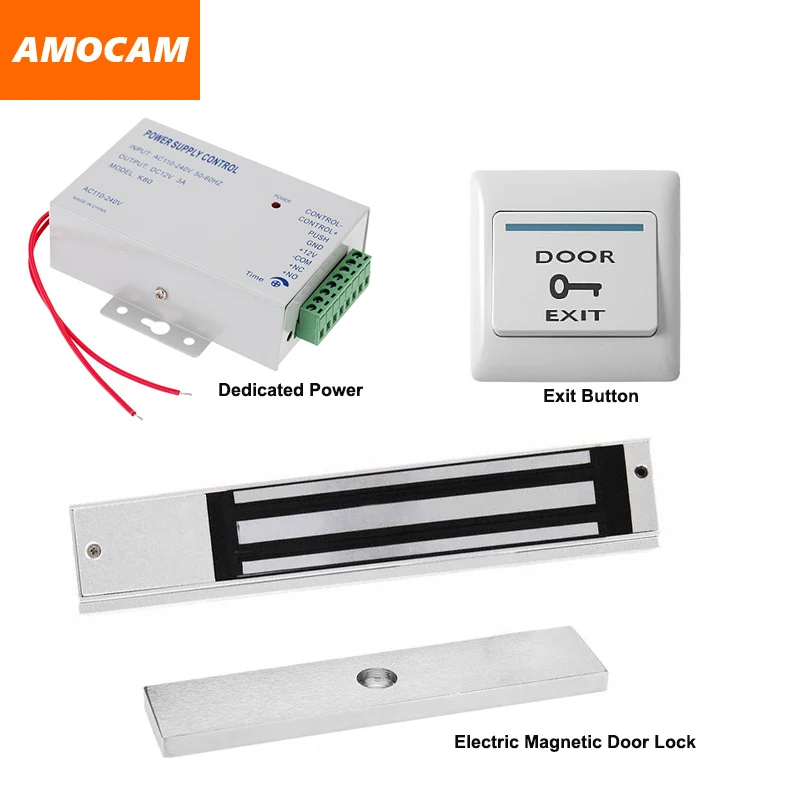

NC Electric Magnetic Door Lock + Power Supply box for Door Access Control System Video doorbell +Door Exit Button Switch

Welcome to our store choose more products:

USD 99.88/pieceUSD 302.80/pieceUSD 179.99/pieceUSD 196.88/pieceUSD 69.88/pieceUSD 58.99/pieceUSD 59.99/pieceUSD 59.99/piece

NC Electric Strike Door Lock

180kg 350lb Magnetic Lock :

It is a High-performance 180kg Holding Force electric magnetic lock which suits for many access control

system. This electric lock can meet your need perfectly.

• NC Mode – (Locked while supplied with power) Fail Safe Mode
• Performance Testing: 1000000 times aging test
• Suitable For: Wooden Door, Metal Doorr, Fireproof Door, Glass Door, etc.
• Safety function: Built-in voltage spike suppressor
• Anti-Residual Magnesium Designed.

Specification:

• Voltage: 12V DC
• Current: 400mA
• Mode: NC (locked whilst power supply is operating), fail safe mode
• Application: wood, iron doors
• Faceplate dimensions: 130 x 32 x 11mm
• Main body dimensions: 170 x 32 x 21mm
• Pack includes: electric magnetic lock, installation diagrams
• Construction: stainless steel
• Holding force: 180KG

AC 110-240V Dedicated Power box

• This power supply is small, easy to install and easy to use: the voltage range from 100V-240V to normal use, suitable for all countries of the world.
• Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.
• Set NC / NO outputs, can control various types of electric locks.
• Based delay control circuit, lock time can be in 0-15 seconds.
• The circuit board has remote control port.

Specification:

• Material: Metal
• Color: Green/White
• Input Voltage: AC 110 ~ 240V (Worldwide voltage)
• Input Frequency: 50 ~ 60Hz
• Output Voltage: DC 12V/3A
• Output Voltage Trim Range: 10% ~ 15%
• Operating Temperature: -20°C~ 65°C
• Load: 1% Typical
• Insulation Resistance: ≥50MΩ
• Adjustable Locking Delay: 0 ~ 15sec
• Remote Door Distance: 50~100 m
• Dimensions: 103*68*33 mm

White Electronic Door Exit Push Strike Button Panel

• Main Material: Hard Plastic
• Color: White
• Plate Size: 90mm x 90mm x 25mm(L* W *H )
• Voltage: ~250V
• Packege Content: 1 x Push Button Strike Panel,2 x Mounting Screws Electronic Door Exit Push Strike Button Panel
• It is widely used in doors,exits,gates and automatic control;
• Easy to install and use;
• Net Weight: 60g

***Power supply box application Connect diagram

Package Included:

• 1 x Electric magnetic door lock
• 1 x Power Supply box
• 1 x Exit Button Switch
• 1 x bag screws and hardware
• 1 x User manual
