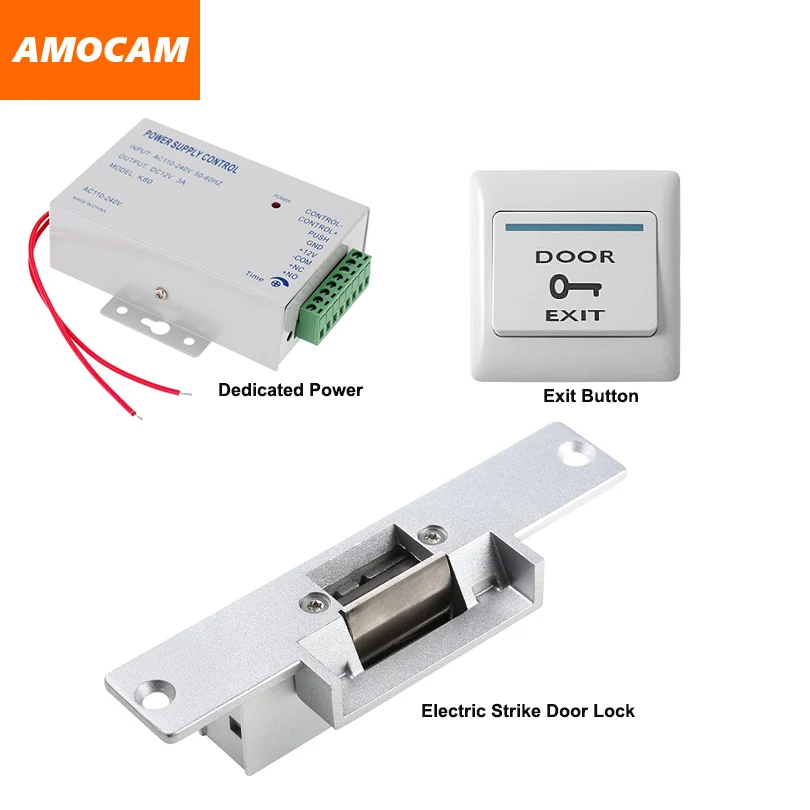

NC Electric Strike Door Lock+ Power Supply box for Door Access Control System Video doorbell +Door Exit Button Switch

Welcome to our store choose more products:

USD 99.88/pieceUSD 302.80/pieceUSD 179.99/pieceUSD 196.88/pieceUSD 69.88/pieceUSD 58.99/pieceUSD 59.99/pieceUSD 59.99/piece

NC Electric Strike Door Lock

Main Feature

• *Holding force: 150KG/330lb, power supply: DC12V (not included)
• *Stainless steel + zinc alloy material for durable performance.
• *Secure NC mode: unlocked when power off, locked when power on.
• *With anti backlash diode for circuit protection (parallel connection).
• *Widely used for door entry access control system.

Specifications:

• Work Mode: Magnetic Induction
• Holding Force: 150KG/330.7lb
• Power Supply: DC 12V (not included)
• Material: Stainless steel + zinc alloy
• Unlock Type: NC/power off unlock
• Circuit Protection: YES
• Lock Size: 15.1*3*3.5cm / 5.94*1.18*1.38in
• Lock Weight: 251g/8.88oz

AC 110-240V Dedicated Power box

• This power supply is small, easy to install and easy to use: the voltage range from 100V-240V to normal use, suitable for all countries of the world.
• Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.
• Set NC / NO outputs, can control various types of electric locks.
• Based delay control circuit, lock time can be in 0-15 seconds.
• The circuit board has remote control port.

Specification:

• Material: Metal
• Color: Green/White
• Input Voltage: AC 110 ~ 240V (Worldwide voltage)
• Input Frequency: 50 ~ 60Hz
• Output Voltage: DC 12V/3A
• Output Voltage Trim Range: 10% ~ 15%
• Operating Temperature: -20°C~ 65°C
• Load: 1% Typical
• Insulation Resistance: ≥50MΩ
• Adjustable Locking Delay: 0 ~ 15sec
• Remote Door Distance: 50~100 m
• Dimensions: 103*68*33 mm

White Electronic Door Exit Push Strike Button Panel

• Main Material: Hard Plastic
• Color: White
• Plate Size: 90mm x 90mm x 25mm(L* W *H )
• Voltage: ~250V
• Packege Content: 1 x Push Button Strike Panel,2 x Mounting Screws Electronic Door Exit Push Strike Button Panel
• It is widely used in doors,exits,gates and automatic control;
• Easy to install and use;
• Net Weight: 60g

***Power supply box application Connect diagram

Package Included:

• 1 x Electric Strike Door Lock
• 1 x Power Supply box
• 1 x Exit Button Switch
• 1 x bag screws and hardware
• 1 x User manual

Attention: if you need buy Access control systems work with video door phones together, such as ( Entrance guard system/Wireless remote control/Door exit/Access control power supply/ ID Keyfobs and any other video door phone parts) Please send message to me.
