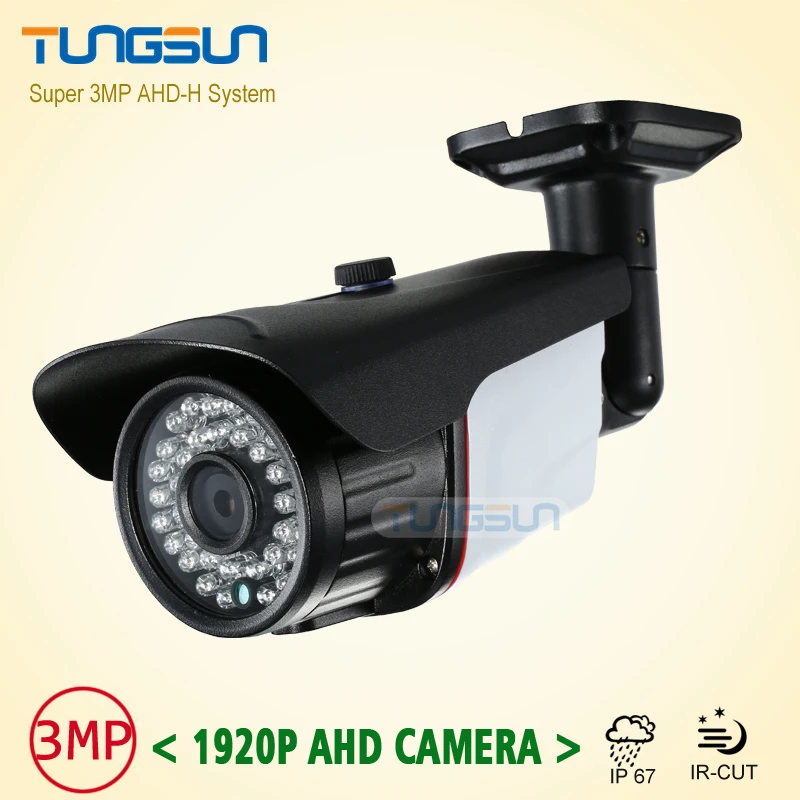

New Super 3MP 1920P AHD Camera Security CCTV Metal Black Bullet Video Surveillance Outdoor Waterproof 36 infrared Night Vision

New Super 3MP 1920P AHD Camera Security CCTV Metal Black Bullet font b Video b font
Click to see details
New Super 3MP 1920P AHD Camera Security CCTV Metal Black Bullet font b Video b font
New Super 3MP 1920P AHD Camera Security CCTV Metal Black Bullet Video Surveillance Outdoor Waterproof 36
New Super 3MP 1920P IMX322 Small AHD Security Camera Outdoor Vandal proof Mini 24led infrared Metal
New Arrivals HD 3MP 1920P AHD IMX322 CCTV Surveillance Camera Security Waterproof Black Bullet 36 leds
New Super 3MP AHD HD Full 1920P Camera Security CCTV Metal Bullet Video Surveillance Outdoor Waterproof
New Super AHD Camera HD 1920P Waterproof 6 Array infrared Security Camera 3MP AHDH System Video
New Super 3MP 1920P HD Camera Surveillance CCTV Metal Bullet Outdoor Waterproof 36 infrared Night Vision
New Super HD 3MP 1920P AHD Camera CCTV White Metal Dome Home Security Video Surveillance Waterproof
New Arrival Super 3MP HD 1920P AHD Camera Security CCTV White Metal Bullet Video Surveillance Waterproof
100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $45.89 / piece
Sale price:  US $37.17 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


What is AHD?

AHD (Analog High Definition) is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).

In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.

Why AHD?

As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?

Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

How AHD can be beneficial to us?

• Upgraded to analog HD seamlessly with Low-cost and simple installation value-added solution. Go after the conventional analog system topology and give a full consideration to users operation habit.

• Megapixel & uncompressed image quality.

• Long range & non-latency reliable video transmission without additions of relay devices.

• Strong anti-interference capability & solid interface protection. Free of high-frequent electromagnetic radiation; constant signal transmission and display without problems as frame drop and lock loss occurred.

• An open analog HD transmission system established and evolved industry chain developed to sustainably improve the technical standard.


By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;

Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not partial color distortion;

Analog HD AHD-H#AHD video output;

The transmission distance is 500 meters;

Support automatic electronic shutter function, adapt to different monitoring environment;

Waterproof design IP67, reliability;

Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;

Easy installation & operation, as same as analog CCTV system

More acceptable, lower price than analog surveilance system

NO Delay, Real time Display


Resolution Full HD 3.0Mega 19201080Pixel
Main Chip

High performance

NVP6021 ISP processor

Image Sensor 1/3″ Sony IMX322
Effective Pixel

PAL : 19201080#25fps

NTSC : 19201080#30fps

Signal System PAL/NTSC
Video Standard Follow AHD and CVBS Standard
Video Output 1CH AHD HD/CVBS Standard Singal Output(Switchable)
Max Transmission Distance Common 75-3 Cable can be up to 500m
HD 3MP Lens size 4mm/6mm/8mm Default :6MM
Minimum Illumination 0.001LUX/F1.2(Led on)
IR-CUT Auto switch
IR Distance 10-50m
Shutter Speed 4/25s-1/45,000s
BLC Off/Low/Medium/High/Highest
White Balance Auto White Balance
HLC Spport
Operation Temperature -45°C~55°C
Power Supply DC12V
Housing Material Metal
IP Grade IP67

important Notes:

1>>This is a Full HD AHD 1920P Camera ,Work Must use 1080P Recording Format AHD DVR !! If NO USE 1080P Record AHD DVR, AHD Camera Not Work .

2>>You Can’t use 720P “AHD-M” Record AHD DVR and Common DVR ,the AHD Camera it Not Work!!!

3>>Camera Work Can only use 1080P Record AHD DVR!!! AHD- System or AHDN-1080N System. !!!!
