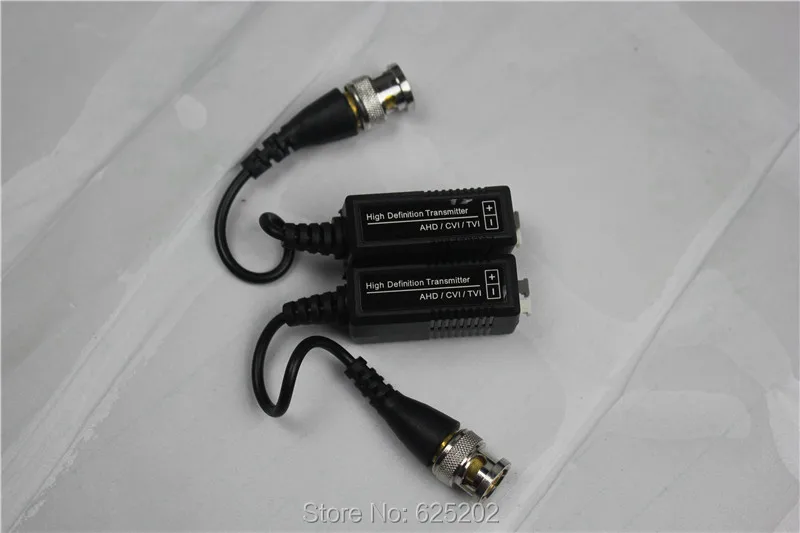

Single Port HD Analog Video Passive UTP Balun for AHD/CVI/TVI
Features
1.Compatible with AHD/CVI/TVI signal
2.Transmission signal:720P/1080P
3.Cable:CAT 5/5E/6
4.Transmission distance to 300m for CVI/AHD, 200m for TVI
5.No power required
6.Built-in surge & Transient protection
7.Surper interference rejection
Specification
| Physical Properties | Dimension | 13.7(L)*11.6(W)*3(H)mm |
| Shell | ABS | |
| Color | Black | |
| N.W. | 60g | |
| Stability | MTBF | >10000h |
| Environ mental | Operating Temperature | (-10)-55 degree |
| Storage Temperature | (-20)-70 degree | |
| Humidty | 0-95%(non-condensing) | |
| Properties | Transmission signal | 1 channel |
| Transmission distance | AHD/CVI:300M(max) TVI:200M(max) |
|
| Category type | UTP CAT5/5E/6 | |
| Video transmission properties and port | Coaxial video connector | BNC-M |
| Twisted-pair video connector | Push-terminal | |
| Compatibale Format | AHD/HDCVI/HDTVI | |
| Resolution | 720P/1080P | |
| Anti-interference | >60dB | |
| Protection | ESD | 1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2 |
| Coaxial cable connector | 2KV(common-code) Per:IEC 1000-4-5 | |
| UTP cable connector | 2KV(different-code),4KV(commmon-code), Per:IEC1000-4-5 |
|
| Impedance | BNC male | 75 Ohms |
| UTP cable | 100Ohms |
