Super Mini NVR 4CH HD Network Video Recorder Smallest of the World

Super Mini NVR 4CH HD Network Video Recorder Smallest of the World

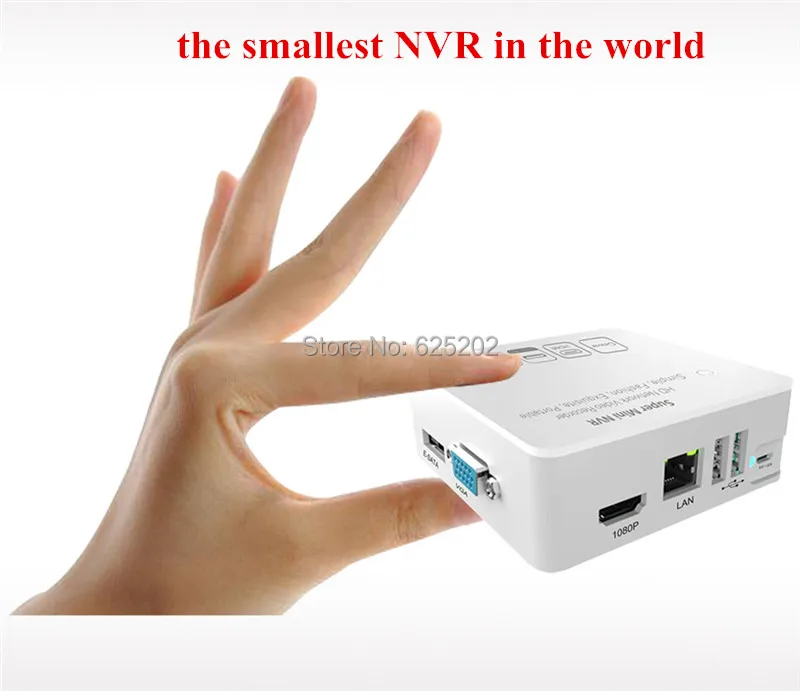

1. Super mini NVR, size 88* 88* 32mm;

2. Support HDMI and VGA output at the same time, the output resolution up to 1920x1080p;

3. Support ONVIF agreement, support Highprofile S, Highprofile G, can be connected with ONVIF, RTSP standards and many mainstream manufacturers of network cameras;

4. Support all channels with the screen display, support 4-screen preview of the main flow;

5. Support P2P cloud services;

6. Support plug and play.

Highlights

• Support P2P cloud services, through cloud access, cloud monitoring, cloud forwarding anytime, anywhere access to the IPC and NVR terminal functions.

Support national standard ONVIF agreement, support Highprofile S, Highprofile G, can meet the ONVIF, RTSP standards and many mainstream manufacturers of network cameras;

• Supports electronic zooming of preview images and playback images;

• Support query, playback, backup video files by event;

• Support all channels with the screen display, support 4-screen preview of the mainstream, support 4-way synchronous playback;

• Fast PTZ support;

• Provide centralized monitoring and management software.

Features

1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction;

2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;

3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

5. The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;

8. Standard resolution which can be adjusted according to the display device in order to get the best image quality;

9. Adopt HDD sequence writing method and the data is written from 0 track which increse 2.5X lifetime of the HDD.

Remarks: Motion detection is still within development, so cannot use the motion detection function now.

Please use monitoring level hard disk (HDD).

Specification

Model: SV-NVR20004CH

Operating system: Embedded LINUX operating system

Image coding control: Image coding quality can be adjusted, variable stream and limited stream optional

Dual stream: Each channel can be set

Video standard: 1080P (1920 X 1080) 30 frames / sec / 960P / (1280 X 960) / 720P (1280 X 720) 30 frames / second

Monitor image quality: 1080P (1920 X 1080) / 960P / (1280 X 960) / 720P (1280 X 720)

Image dynamic detection: Each screen can detect multiple detection area, can be set to 6 sensitivity (need IPC support)

Image playback quality: 4-way 720/960P mode 4-way playback, 4-way 1080P mode 1-way playback

Area occlusion settings: Supports 4 area blocks per channel (requires IPC support)

Recording mode: Support manual, automatic, dynamic monitoring, alarm triggered recording mode (some need IPC support)

Backup method: Support hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup

Operation method: mouse

Log on locally: User name and password

Save the video: Local hard drive, network

External interface:

Network video input (mode)

4 X (1280 * 720) + sub [960 * 576] + 4Ref. + 4Play 4 way 1 million IP network cameras

4 X (1280 * 960) + sub [960 * 576] + 1Ref. + 4Play 4 way 1.3 million IP network cameras

4 X (1920 * 1080) + sub [960 * 576] + 4Ref. + 1Play 4 way 2 million IP network cameras

1 X (1920 * 1080) + sub [960 * 576] + 4Ref. + 1Play 1 way 2 million IP network cameras

4 X (720 * 576) + sub [352 * 288] + 4Ref. + 4Play 4 way 400 thousand IP network camera

Audio Input: 4-way network audio input

Video output: 1 channel VGA + 1 channel HDMI

Network Interface: 1 RJ45, 10M / 100M adaptive Ethernet port

USB interface: 2 USB 2.0 ports

Wireless interface: 3G and WIFI

Hard disk: E-SATA / mobile hard disk / U disk, 2T Max.

Mobile phone monitoring: Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) system smart phone

Power supply: 5V2A

Power consumption: ≤10 without hard disk)

Operating temperature: -10 ° C to + 55 ° C

Working humidity: 10% -90%

Size: Machine: 88mm X 88mm X 32mm, including packaging: 185.5mm X 115.5mm X 36mm

Weight (excluding hard disk): Net weight: 105g; with packaging: 250g
