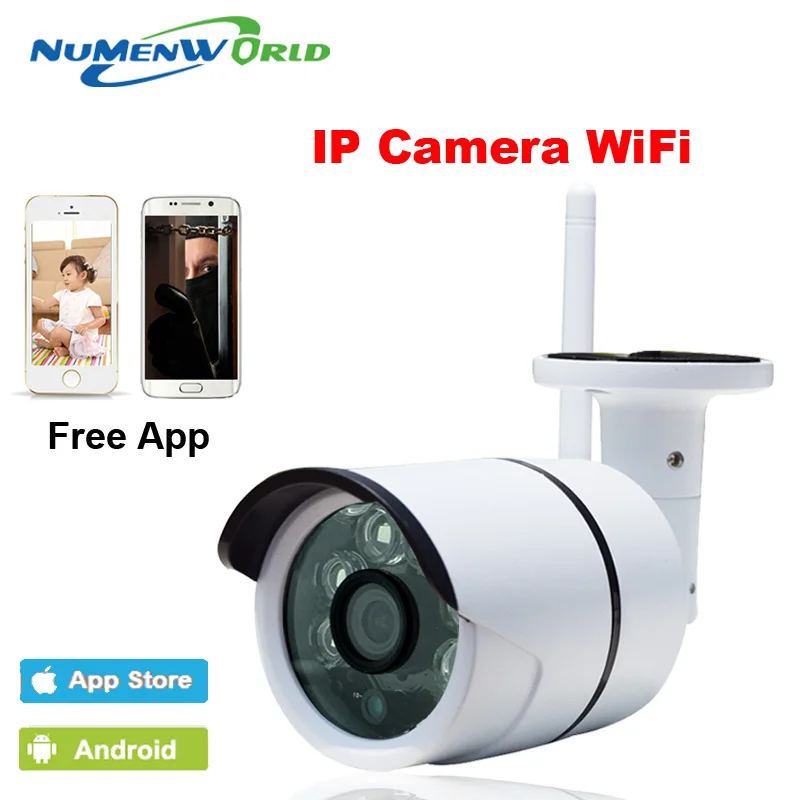

Wifi 1.3MP Megapixel Wireless IR Network IP camera 960P HD Outdoor Video surveillance security camera SD Card slot NuMenworld

Home Surveillance Video Security Camera CCTV HD 960P Wireless WIFI Network IP Camera Outdoor H.264 IR Night Vision IP Cam

Feature:

Supports Wi-Fi, a key WPS function;

Support Micro SD card,up to 64G;

Support for mobile video surveillance(iOS,android);

Support cloud service, network penetration, alarm information pushed to phone ,etc.

Support Website Interface in IE ,cloud ( XMEYE.NET ) in IE ,firfox,Safari,Chrome and so on.

Support AP and Router Mode ,one key connect WIFI without wired Ethernet in AP mode !

Not Support ONVIF ;just can connect our CMS software and Our NVR ( XMEYE )

Specifications :

System Structure : Dual-core 32-bit DSP HI3518E

Sensor : 1/3”OC1035 CMOS

Video compression : H.264,support dual stream;support stream 0.1M-6Mpbs

adjustable ;support frame rate from 1 to 25 frames/sec adjustable

Lens :1080P 3.6mm default ( 2.8mm/6mm/8mm optional)

Image output : Main Stream : 1280*960 ; Sub stream : 704*576

IR Cut Filter : Yes

Mobile Monitoring : Support IOS & Android With APP XMEYE or Family Center

Remote Viewing : Supports ( XMEYE.NET )

IR LED : 4pcs array IR LED With 5-30Meters IR Distance

Woring Temperature : -20 to 60 degree

Power : 12V 2A ( Not power adapter)

SD Card Slot : Support Max 64Gb ( NOT INCLUDED SD card )

There are two modes for this camera,one is AP Mode ,the other Router Mode :

AP Mode default !!!if you want use router mode,please click reset button change the mode !!!!

We suggest using the Router Mode ,since in Router Mode,you can view remotely , connect to our NVR and so on !

Open the camera to install the Micro SD card please !

FAQ :

Q :What’s APP the camera use ?

F: Both XMEYE and Family Center are Ok !

Q :What’s the default Wifi Name and password of the camera in AP Mode ?

F : The Wifi Name begins with “beye_xx ” ,and the password is 1234567890

Q :How about the Recording Capacity

F:For 960P,it costs about 1Gb/Hour,we suggest you use the motion detection to save the capacity

Or you can connect to the NVR in Router Mode

Package including: 1* 960P Wireless IP Camera with bracket 1* antenna 1* CD (including introduction) 3* screw

Operation Overview For AP Mode :

1.Plug in the power supply with the camera,open the mobile Phone WLAN/Wi-fi setting

Click the camera hotspot(named with beye_xxxx) ,click it to connect :

2.Input the password(default is 1234567890),click Connect .

3.After mobile phone connected to the camera hotspot,

click the “Family Center” or ” XMEYE” icon to open it ,on the main interface,click Video

Operation Overview For Router Mode :

1.After camera connect with power supply,please press 4 SECOND(no more than 4second) the RESET button,you will heard a little click voice from the camera, like”ka”,reset ok. After mobile phone connected local WIFI, opne the “Family Center” or ” XMEYE ” APP.Clicck the attached ICO

2.Submit your wifi router’s SSID and password ,then be sure to click the checkbox as below picture shows

3.After few seconds searching,if everything is normal,it will have the Green ICO ,click it to finish the steps !

Suitable for road, warehouse, underground parking lot, bar, pipe, park and dark or light environment and require high-definition.
