Wolf-Guard DIY Simple Wireless Home Alarm Security System Indoor Sound Flash Siren+Water Leaking Detector EU Plug 433MHZ Set D

Wolf-Guard DIY Simple Wireless Home Alarm Security System Indoor Sound Flash Siren+Water Leaking Detector EU Plug 433MHZ

Picture:

Tips:

Is there a leak in the kitchen? Is the bath full? Don’t worry about all this, you can DIY your own alarm system, which consists of a water intrusion detector with an indoor flash siren and a remote control. When the water level reaches the alert position, the detector sends a signal to the siren. The loudspeaker makes a loud alarm. Everything is so convenient and easy to install!

JD-11:

Key Features:

1.Fashionable outlook, trendy design;

2.Alarming with sound and flashing light, safe and reliable;

3.Can make a big sound to overawe the burglar!

4.Rotational LED lights, different color for choice;

5.Arm/disarm can choose with siren sound on or not;

6.Can also be used as decoration light;

7.Support 100pcs wireless detectors;

8.Alarming LED with 2 selectable flashing modes.

Technical Parameters:

1.Power Supply: 110-220V, 50Hz/60Hz

2.Wireless Frequency: 433MHz

3.Distance: ≥80m (no obstacle)

4.Working Temperature: 0℃~40℃

5.Working Humidity: ≤90% (no condensing)

6.Volume: ≥80dB/3M

7.LED Light: Built-in 5050 LED flashing light

8.Wireless Sensors: Up to 100pcs

9.Receiving Code: ASK

YK-11:

1.Model:YK-11

2.Transmitting distance:80m (no obstacle)

3.Transmitting Current:≤7mA

4.Frequency:433MHz

5.Shell Material: Silica Gel + ABS

6.Power supply: 2PCS 3V CR2016 Li-ion battery

7.Working environment:Temperature :-10℃- 40℃, Humidity:≤90% RH

8.Size:68.8 x 35.8x 11mm

SR-02:

Product Description:

When the two sensor needle contact with liquid or conductive metal objects at the same time, the machine send a wireless alarm signal (433MHz), and you can select link actions of buzzer and relay (when the power supply is below 7V, the relay stops working).

Key Features:

1.When the water is overflowing from the container, the alarm”ring”to remind the user leaking or spilling water. Please close the valve and repair it, so as to avoid the waste of water resources. Close the valve, the alarm will automatically stop alarming after overflow stops;

2.Circuit optimization and special probe design solved alarm reliability problems caused by different water elements (probe should be installed outside of the water container, water spills);

3.The product provide prompt and accurate location of overflow, reduce economic losses due to overflow;

4.The product can reduce installation costs, improve products level and save project cost;

5.Exquisite appearance, small size, low price and easy installation.

Technical Parameters:

1.Power Supply: 12V/23 a dry cell or external to the 12V/300mA power adapter

2.Standby Current: <18uA

3.Alarm Current: <35mA

4.Transmission Frequency: 433MHz

5.Transmission Distance: 90 meters (open area)

Electrical Characteristics:

1.Working Voltage: DC 12V

2.Current Loss: When enable a fully functional alarm, the current ≤55mA

3.Standby Current: <15uA

4.Transmission Frequency: 433MHz

How to Pair Code?

We have already pair it ok before shipping,you can use it directly,if you need to pair it again,pls read the user manual and pair the JD-11 to the YK-11,SR-02.

Any questions,pls feel free to contact us!

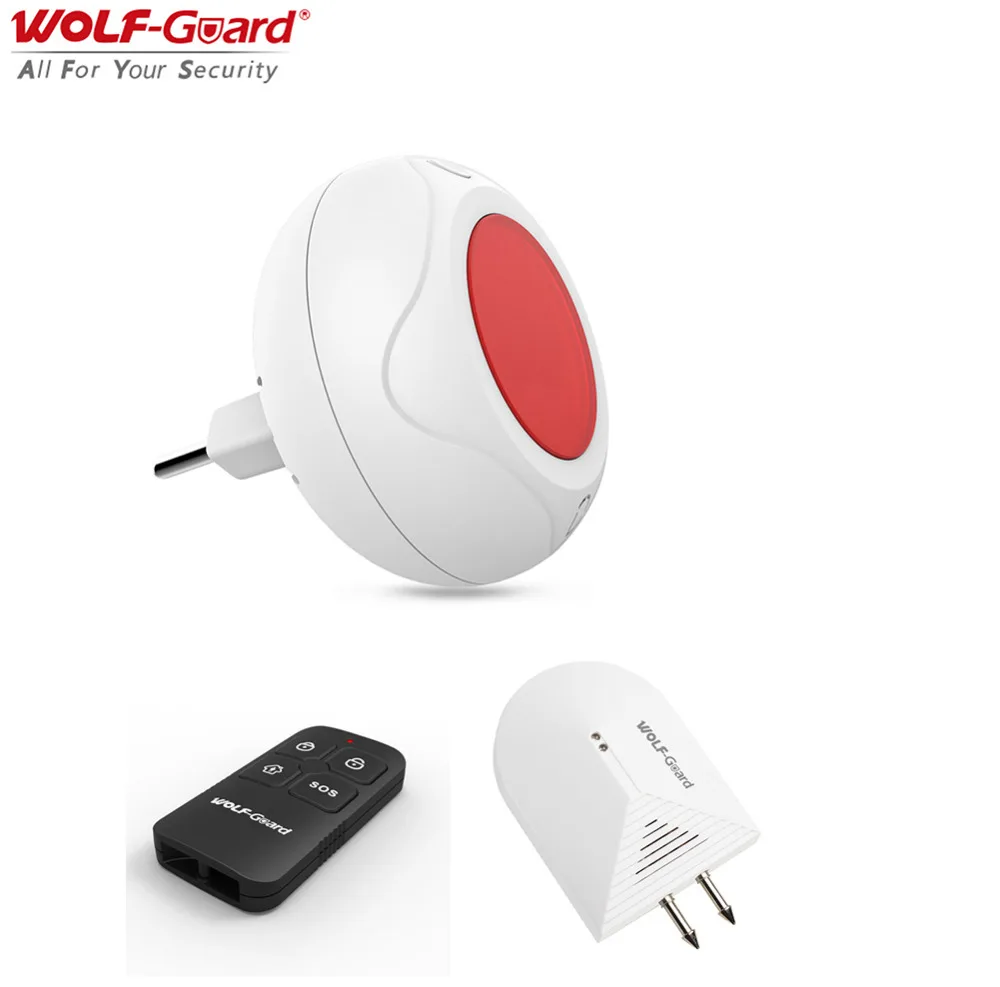

Package include:

1 x JD11 Sound Siren (EU Plug)

1 x YK-11 Remote Controller

1 x SR-02 Water Leaking Detector

We just offer EU standard plug for JD-11,if you need another Power plug,we can support the Conversion plug!
